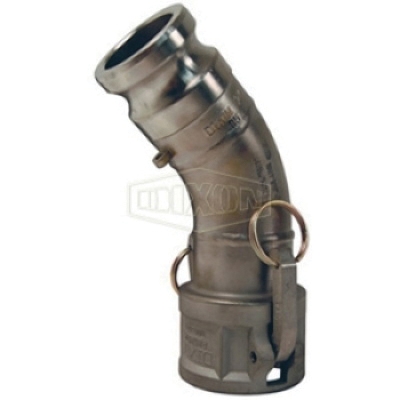

Dixon® 400DA-45AL Aluminum Cam and Groove 45 deg Elbow, 4 in Male Type D x 4 in Female Type A

Dixon® 400DA-45AL

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: 400DA-45AL
  • MPN: 400DA-45AL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® Cam and Groove 45 deg Elbow, Connection Type 1: Type D, Gender 1: Male, Connection Size 1: 4 in, Connection Type 2: Type A, Gender 2: Female, Connection Size 2: 4 in, 100 psi, Material Construction: Aluminum, Dimensions: 9-5/64 in W x 8-3/32 in H

Connection Size 1      :      4 in
Connection Size 2      :      4 in
Connection Type 1      :      Type D
Connection Type 2      :      Type A
Dimensions      :      9-5/64 in W x 8-3/32 in H
Gender 1      :      Male
Gender 2      :      Female
Material      :      Aluminum
Material Construction      :      Aluminum
Pressure Rating      :      100 psi
Shape      :      45 deg Elbow
  • Buna-N seal material
  • Produced to interchange with all product produced to commercial item description A-A-59326D
  • 356T6 aluminum construction

Safety Notes: Under no circumstances should cam and groove couplings be used for compressed air or steam service!

  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.

    Applications: For use with liquids

  • Prop Warning Mil-A-A-59326D Specified | Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_100APM_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_150DA90AL_SS.pdf
    • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_400DA45AL_TD.pdf
