Crosby® 1048859 1048859

Crosby® 1048859

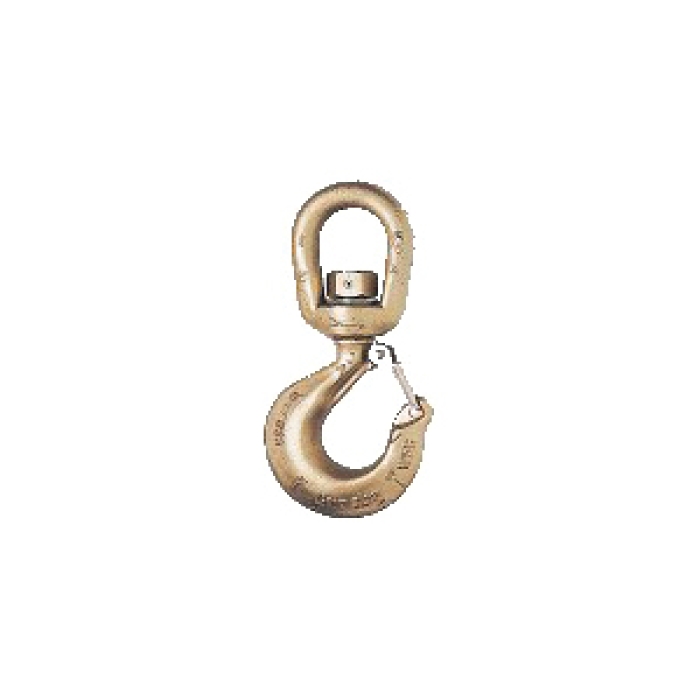

Crosby® L-322AN Alloy Steel Swivel Hook, 7 ton, 1.61 in Opening

pin-int

Crosby® Swivel Hook, Series: L-322AN, Load Capacity: 7 ton, Hook Opening: 1.61 in, Material Construction: Alloy Steel, Gold, Dimensions: 12.47 in L x 6.28 in W

Dimensions      :      12.47 in L
Grade      :      80
Hook Opening      :      1.61 in
Material      :      Steel
Material Construction      :      Alloy Steel
Product Type      :      Swivel Hook
Series      :      L-322AN
Trade Size      :      7 ton
  • Forged steel, quenched and tempered
  • Swivel hooks are load-rated
  • Proper design, careful forging and precision controlled quench and tempering gives maximum strength without excessive weight and bulk
  • Low-profile hook tip designed to utilize Crosby® S-4320 or PL-N latch kit
  • Even years after purchase of the original hook, latch assemblies can be added
  • Deformation Indicators two strategically placed marks, one just below the shank or eye and the other on the hook tip, which allows for a Quic-Check® measurement to determine if the throat opening has changed, thus indicating abuse or overload
  • Angle indicators indicates the maximum included angle which is allowed between two sling legs in the hook
  • These indicators also provide the opportunity to approximate other included angles between two sling legs
  • Hoist hooks incorporate markings forged into the product which address two Quic-Check® features

Warranty: 1 Year Limited

  • Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Crosby_1011802_CAT.pdf
