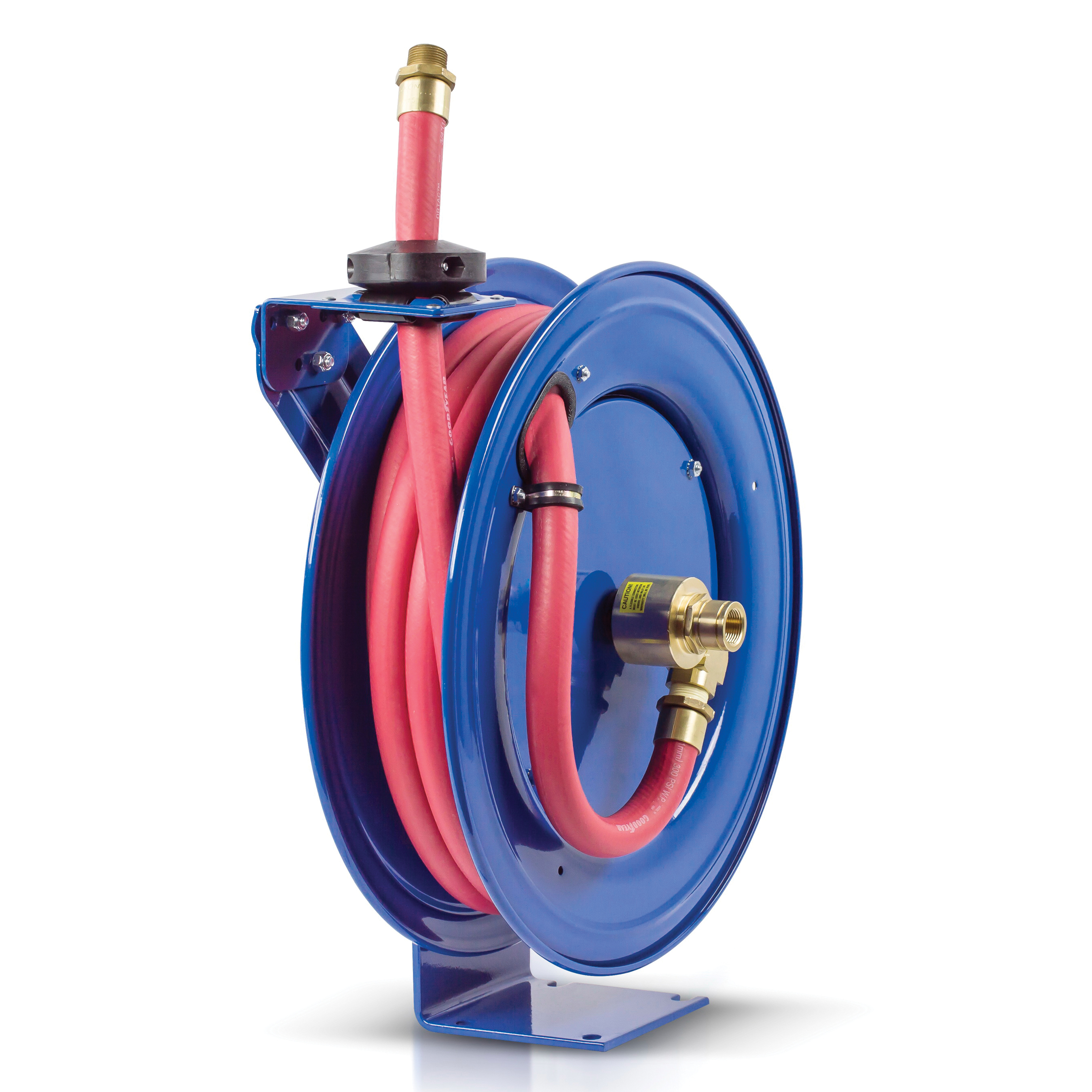

Coxreels SHF-N-525
Coxreels SH-FUEL Series SHF-N-525 Hose Reel, 25 ft Hose, 3/4 in ID x 1-3/16 in OD in Dia Hose
- Manufacturer: Coxreels
- Brand: Coxreels
- ARGPN: SHF-N-525
- MPN: SHF-N-525
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Coxreels factory-direct delivery:
-
COXREELS® fuel dispensing reels are designed to handle various non-aromatic fuel applications including diesel, kerosene, fuel oil and heating oil. COXREELS® professional fuel dispensing heavy-duty single pedestal (SH Series) reels are an essential component found in utility, ground support and bulk liquid handling transport services mounted on fuel storage and dispensing systems, fuel/lube trucks, aircraft refuelers and tank trucks. The convenient uncoiling systems with the added hose control allow the operator to efficiently handle fuel transfers.
Coxreels Hose Reel, SH-FUEL Series, 25 ft Hose, 3/4 in ID x 1-3/16 in OD in Hose Diameter, Low Pressure, Spring Driven Hose, NPT Swivel Connection, 19-1/2 in Reel Diameter, 9-3/8 in Reel Width, Ratchet Locking Style, Steel, Finish: Powder-Coated, 300 psi, Floor, Vehicle, Wall Mounting, 19-1/2 in L x 9-3/8 in W x 25-1/2 in H, Additional Information: 6 x 6 in Base, 4 x 5 in Mounting Pattern
| Additional Information | : | 6 x 6 in Base, 4 x 5 in Mounting Pattern |
| Connection Type | : | NPT Swivel |
| Dimensions | : | 19-1/2 in L x 9-3/8 in W x 25-1/2 in H |
| Finish | : | Powder-Coated |
| Hose Capacity | : | 25 |
| Hose Diameter | : | 3/4 in ID x 1-3/16 in OD in |
| Hose Type | : | Low Pressure, Spring Driven |
| Locking Style | : | Ratchet |
| Material | : | Steel |
| Mounting Type | : | Floor, Vehicle, Wall |
| Pressure Rating | : | 300 psi |
| Reel Diameter | : | 19-1/2 in |
| Reel Width | : | 9-3/8 in |
| Series | : | SH-FUEL Series |
- Swivel - machined from solid brass 90 deg full flow NPT swivel for fuel dispensing applications
- Cartridge motor - lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance
- CNC spun discs - heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
- 1/4 in steel base - sturdy single pedestal design with solid one-piece steel base and support post, no weld, for maximum stability
- Exclusive Super Hub™dual axle support system
- Multi-position guide arm - versatile guide arm adjusts to wall, floor, ceiling and vehicle mounting positions
- Long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop,fuel dispensing hose and sturdy permanently lubricated precision bearings
- USA Made - quality and support - we take great pride in designing, building and supplying one of the world’s finest reels made right here in the USA
