COXREELS® PC13-5012-4

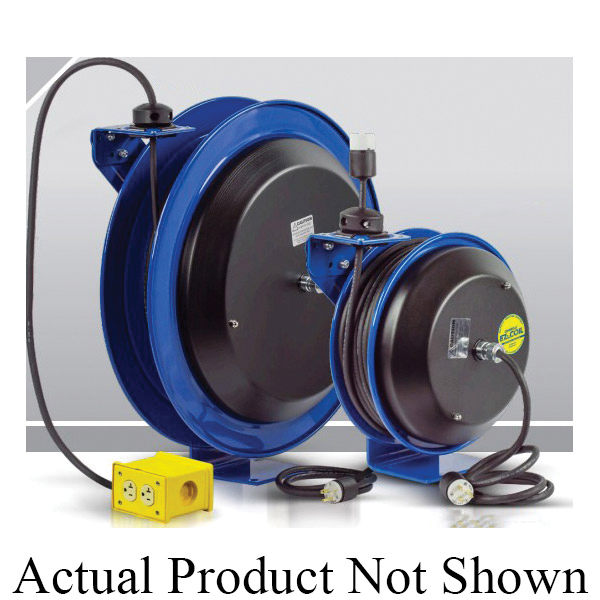

COXREELS® PC Series spring driven "Power Cord" reels are heavy duty, industrial grade power sources. They replace tangled extension cords and self-retract to increase safety, productivity and efficiency. Modeled after the P and SH Series, the PC Series are designed for long-lasting, trouble-free performance even under the most demanding conditions.

COXREELS® Spring-Driven Cord Reel, PC Series, 115 V, 20 A, With Cable, 12 AWG Wire, SJO Cord, 50 ft Retractable Cord Length, 4 Conductors, 13-1/2 in Width, 14-7/8 in Height, 8-1/2 in Depth

• External heavy gauge CPC™ powder coated steel components cover for simple slip ring routine maintenance
• Electrical current runs through a 25AMP / 600V rated slip ring (30AMP / 600V on select models)
• Include 5' lead cable & grounding plug (except on less cord models)
• (On -4 & PC17 Models only) Include 5' lead cable & flying lead
• Single pedestal cord reel with space saving design facilitates workplace organization
• Guide arm adjusts to wall, floor & overhead positions
• Solid one piece, heavy gauge 1/4" steel base & support post for maximum stability
• Coxreels' exclusive Super Hub™ dual axle support system on models with size index #3 & #4
• 1" solid steel axle & lubricated precision bearings for smooth rotation
• Enclosed factory tuned & matched cartridge-style spring motor
• Non-corrosive stainless steel spring, pawl & zinc plated ratchet
• Multi-position lock ratchet mechanism secures cord at desired length
• Professional grade heavy duty steel construction
• Durable proprietary CPC™ powder coat process
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer's limited warranty
• Made in the U.S.A. - Sold & Supported Worldwide

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/COXREELS_PC13_5012_4_Catalog.pdf
