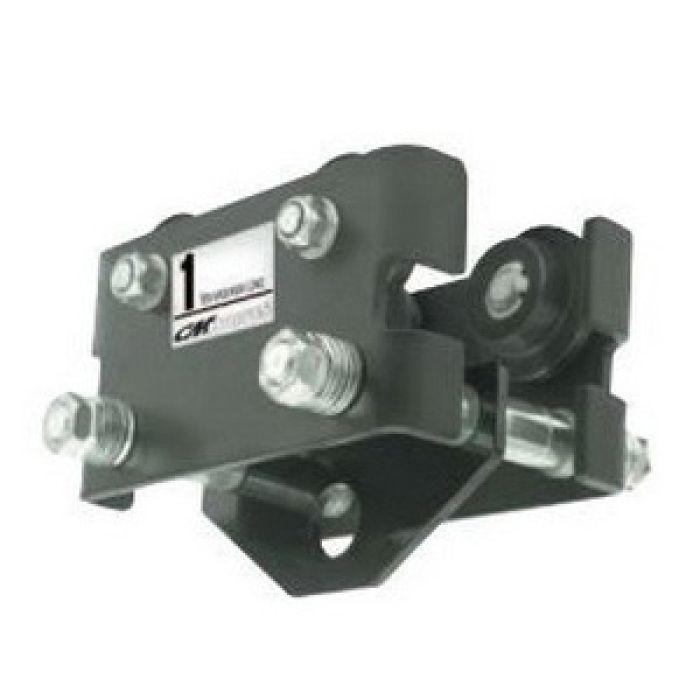

CM® CBTP Plain Beam Push Trolley, 1 ton, 36 in

CM® CBTP-0100

  • Manufacturers: Columbus McKinnon
  • Brand Name: CM®
  • ARGPN: CBTP-0100
  • MPN: CBTP-0100
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

CM® Plain Beam Push Trolley, Series: CBTP, Load Capacity: 1 ton, Fits Beam Height: 5 - 24 in, Fits Beam Flange: 8.7 in, Radius Curve: 36 in, 2.36 in Wheel Diameter

Fits Beam Flange      :      8.7 in
Fits Beam Height      :      5 - 24 in
Load Capacity      :      1 ton
Product Type      :      Push Trolley
Radius Curve      :      36 in
Series      :      CBTP
Wheel Diameter      :      2.36 in

The smooth rolling CM Hoist CBT is the economical choice for most applications. The trolley features steel wrap around side plates, dual tread wheels and lifetime lubricated shielded ball bearings. The CBT model by CM Hoist is available in plain and geared models.

  • Excellent low cost choice for manual and powered hoists
  • Designed to provide superior performance and long, efficient service
  • Geared models have standard 6 ft hand chain drop, other hand chain drops available
  • Accepts most hook-mounted hoists
  • Lugs provide additional security to increase operator safety and act as bumpers to protect wheels
  • Will fit either tapered or flat beam flange within range of adjustment, wheels include permanently lubricated, shielded ball bearings for long life and low maintenance
  • Steel wrap
  • pdfCut sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/CM_CBTP-0200_SS.pdf
