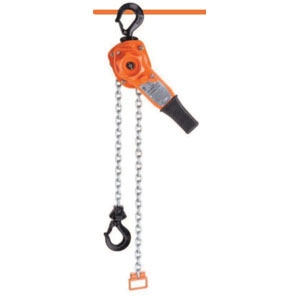

CM® 653 Zinc-Plated Stamped Steel Lever Hoist, 6 ton, 20 ft H Lift

CM® 5333

  • Manufacturers: Columbus McKinnon
  • Brand Name: CM®
  • ARGPN: CM 653-5333
  • MPN: 5333
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

CM® Lever Hoist, Series: 653, Load Capacity: 6 ton, 20 ft Height Lifting, Hook Opening: 2-3/16 in, Brake Type: Enclosed Weston, Pull to Lift Full Load: 77 lb, Material Construction: Stamped Steel, Finish: Zinc-Plated, Dimensions: 7-7/8 in W

Brake Type      :      Enclosed Weston
Dimensions      :      7-7/8 in W
Finish      :      Zinc-Plated
Hook Opening      :      2-3/16 in
Lifting Height      :      20 ft
Load Capacity      :      6 ton
Material      :      Steel
Material Construction      :      Stamped Steel
Product Type      :      Lever Hoist
Pull to Lift Full Load      :      77 lb
Series      :      653

As part of our commitment to bring best-in-class products to market, we are continuously looking to improve existing products. Our popular CM Series 653 ratchet lever hoist has been redesigned with a shorter handle. This modest modification makes a world of difference. Ideal for confined work areas, the Series 653 3/4 and 1-1/2 ton models are now some of the most nimble and easiest to operate hoists on the market today.

  • Take this rugged hoist anywhere, easily transported and rigged even in the smallest work spaces
  • Single-handed free chaining feature allows for quick take up and positioning of slack chain
  • Full rotation of handle allows for versatile rigging options when working in confined space
  • Impact-resistant stamped steel frame and gear cover withstands repeated rigorous use
  • Zinc-plated hardened steel chain provides strength and longer wear life which translates to less down time
  • Enclosed Weston type load brake stays clean and dry for positive load positioning
  • Double pawl design ensures that one pawl will be engaged at all times for reliable load control
  • Standard heavy-duty forged safety latches on hooks provide positive and secure load engagement
  • Standard powder-coat finish for extra protection against corrosion when working in harsh environments
  • Comfortable rubber grip provides for extra protection against slippage
  • Reduces the overall weight of the hoist, making it even easier to carry and operate
  • The smaller handle allows the Series 653 to fit into confined work areas
  • Take full advantage of the 360 deg rotating handle with less worry of obstructions
  • Designed not to accidently free chain while under load

Warranty: 5 Years

Prop Warning ASME B30.21

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/CM_2272_CAT.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/CM_5333_TD.pdf
