Brennan FS6801-08-04-NWO-FG FS6801-08-04

Brennan FS6801-08-04-NWO-FG

Brennan FS6801-08-04-NWO-FG 90 deg Elbow, 1/2 in Male ORFS x 1/4 in Male ORB, Steel

  • Manufacturer: Brennan Industries
  • Brand: Brennan
  • ARGPN: FS6801-08-04
  • MPN: FS6801-08-04-NWO-FG
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Brennan Industries factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Brennan 90 deg Elbow, Series: FS6801-NWO, Fitting Type: 90 deg Elbow, Connection Size 1: 1/2 in, Connection Type 1: Male ORFS, Connection Size 2: 1/4 in, Connection Type 2: Male ORB, Connection Type: Male ORFS|Male ORB, Steel, Material Construction: Forged Steel, 13/16-16 x 7/16-20 Thread, 5/8 in Hex, Maximum Operating Pressure: 6000 psi

Connection Size 1      :      1/2 in
Connection Size 2      :      1/4 in
Connection Type      :      Male ORFS|Male ORB
Connection Type 1      :      Male ORFS
Connection Type 2      :      Male ORB
Fitting Type      :      90 deg Elbow
Hex Size      :      5/8 in
Material      :      Steel
Material Construction      :      Forged Steel
Maximum Operating Pressure      :      6000 psi
Series      :      FS6801-NWO Series
Thread Size      :      13/16-16 x 7/16-20
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/BRENNAN_0318-02-B_Catalog.pdf

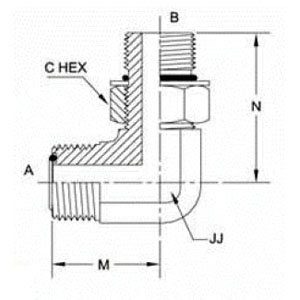

  • Line Drawing https://assets.unilogcorp.com/267/ITEM/DOC/BRENNAN_FS6801-04-04-NWO_Line_Drawing.pdf
