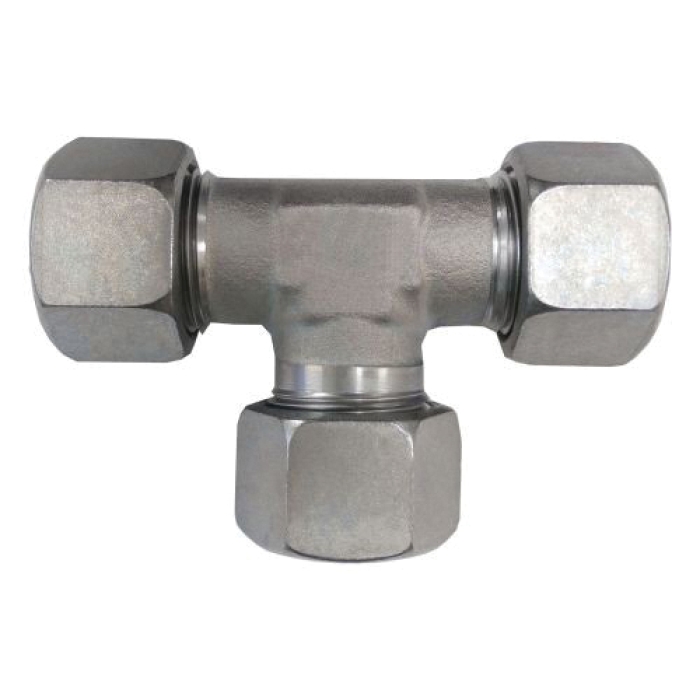

Brennan D8360-NBR Carbon Steel Heavy-Duty Equal Tee, 14 mm Metric Bite DIN Tube x 14 mm Metric Bite DIN Tube x 14 mm Metric Bite DIN Tube

Brennan D209778

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • ARGPN: D8360-S14-14-14-NBR
  • MPN: D209778
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Brennan Heavy-Duty Equal Tee, Series: D8360-NBR, Connection Type 1: Metric Bite DIN Tube, Connection Size 1: 14 mm, Thread Size 1: M22 x 15, Connection Type 2: Metric Bite DIN Tube, Connection Size 2: 14 mm, Thread Size 2: M22 x 15, Connection Type 3: Metric Bite DIN Tube, Connection Size 3: 14 mm, Thread Size 3: M22 x 15, Hex Size: 27 mm, Dimension Standards: DIN 2353, ISO 8434-1, Material Construction: Carbon Steel, 80 mm Length

Connection Size 1      :      14 mm
Connection Size 2      :      14 mm
Connection Size 3      :      14 mm
Connection Type      :      Metric~Metric~Metric
Connection Type 1      :      Metric Bite DIN Tube
Connection Type 2      :      Metric Bite DIN Tube
Connection Type 3      :      Metric Bite DIN Tube
Dimension Standards      :      DIN 2353, ISO 8434-1
Fitting Type      :      Tee
Hex Size      :      27 mm
Length      :      80 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      D8360-NBR
Shape      :      Tee
Thread Size 1      :      M22 x 15
Thread Size 2      :      M22 x 15
Thread Size 3      :      M22 x 15
