Brennan 7205-08-16-NWO-FG 7205-08-16

Brennan 7205-08-16-NWO-FG

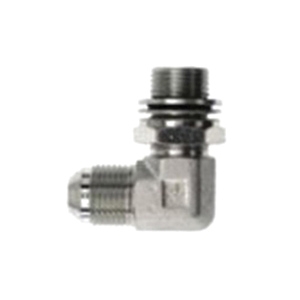

BRENNAN 7205-NWO Series 7205-08-16-NWO-FG 90 deg Elbow, 16 mm Male Metric ORB x 1/2 in Male 37 deg JIC Flared, Steel

  • Manufacturer: Brennan Industries
  • Brand: Brennan
  • ARGPN: 7205-08-16
  • MPN: 7205-08-16-NWO-FG
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Brennan Industries factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

BRENNAN 90 deg Elbow, Series: 7205-NWO, Fitting Type: 90 deg Elbow, Connection Size 1: 16 mm, Connection Type 1: Male Metric ORB, Connection Size 2: 1/2 in, Connection Type 2: Male 37 deg JIC Flared, Material Construction: Forged Steel, M16 x 1.5 x 3/4-16 Thread, 22 mm Hex, Maximum Operating Pressure: 6000 psi

California residents see Prop 65 WARNINGS

Connection Size 1      :      16 mm
Connection Size 2      :      1/2 in
Connection Type      :      Male Metric|Male JIC
Connection Type 1      :      Male Metric ORB
Connection Type 2      :      Male 37 deg JIC Flared
Fitting Type      :      90 deg Elbow
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      22 mm
Material      :      Steel
Material Construction      :      Forged Steel
Maximum Operating Pressure      :      6000 psi
Pressure Rating      :      6000 psi
Series      :      7205-NWO
Shape      :      90 deg Elbow
Thread Size      :      M16 x 1.5 x 3/4-16
Thread Size 1      :      M16 x 1.5
Thread Size 2      :      3/4-16
  • Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Brennan_C6400-04-04-O_CAT.pdf
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/BRENNAN_0318-02_Catalog.pdf
  • Line Drawing https://assets.unilogcorp.com/267/ITEM/DOC/BRENNAN_7205-04-10-NWO-FG_Line_Drawing.pdf
  • Technical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Brennan_7205-04-10-NWO-FG_TD.pdf
