Brennan 7025-08-22 7025-08-22

Brennan 7025-08-22

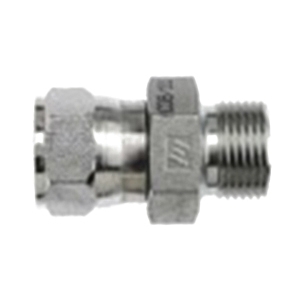

BRENNAN 7025-08-22 Straight Adapter, 22 mm Male Metric x 1/2 in Female SAE 37 deg JIC, Steel

  • Manufacturer: Brennan Industries
  • Brand: Brennan
  • ARGPN: 7025-08-22
  • MPN: 7025-08-22
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Brennan Industries factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

BRENNAN Straight Adapter, Series: 7025, Fitting Type: Adapter, Connection Size 1: 22 mm, Connection Type 1: Male Metric, Connection Size 2: 1/2 in, Connection Type 2: Female SAE 37 deg JIC, Material Construction: Steel, M22 x 1.5 x 3/4-16 Thread, 22 x 27 mm Hex, 46.1 mm L, Maximum Operating Pressure: 5000 psi

California residents see Prop 65 WARNINGS

Connection Size 1      :      22 mm
Connection Size 2      :      1/2 in
Connection Type      :      Male Metric|Female JIC
Connection Type 1      :      Male Metric
Connection Type 2      :      Female SAE 37 deg JIC
Dimensions      :      46.1 mm L
Fitting Type      :      Adapter
Gender 1      :      Male
Gender 2      :      Female
Hex Size      :      22 x 27 mm
Length      :      46.1 mm
Material      :      Steel
Material Construction      :      Steel
Maximum Operating Pressure      :      5000 psi
Pressure Rating      :      5000 psi
Series      :      7025
Shape      :      Straight
Thread Size      :      M22 x 1.5 x 3/4-16
Thread Size 1      :      M22 x 1.5
Thread Size 2      :      3/4-16
  • Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Brennan_19146140_CAT.pdf
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/BRENNAN_1929-62-20-20-K_Catalog.pdf
