Brennan 6804-16-16-16-NWO-FG 6804-16-16-16

Brennan 6804-16-16-16-NWO-FG

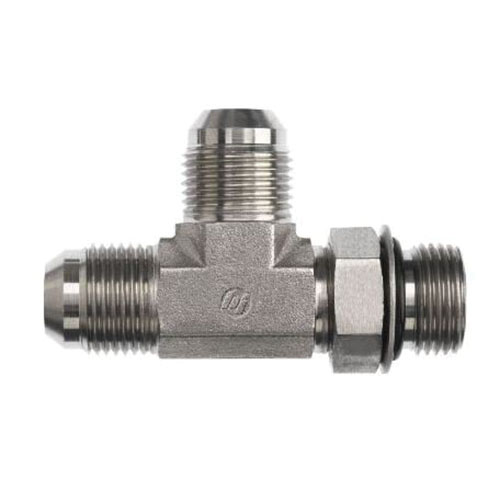

BRENNAN 6804-16-16-16-NWO-FG Run Tee, 1 in Male SAE ORB x 1 in Male SAE 37 deg JIC x 1 in Male SAE 37 deg JIC, Steel

  • Manufacturer: Brennan Industries
  • Brand: Brennan
  • ARGPN: 6804-16-16-16
  • MPN: 6804-16-16-16-NWO-FG
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Brennan Industries factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

BRENNAN Run Tee, Series: 6804-NWO, Fitting Type: Tee, Connection Size 1: 1 in, Connection Type 1: Male SAE ORB, Connection Size 2: 1 in, Connection Type 2: Male SAE 37 deg JIC, Connection Size 3: 1 in, Connection Type 3: Male SAE 37 deg JIC, Material Construction: Forged Steel, 1-5/16-12 Thread, 1-1/2 in Hex, Dimension Standards: MS 51530, SAE 070428, 3.86 in L, Maximum Operating Pressure: 4000 psi

California residents see Prop 65 WARNINGS

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Size 3      :      1 in
Connection Type      :      Male SAE ORB|Male JIC|Male JIC
Connection Type 1      :      Male SAE ORB
Connection Type 2      :      Male SAE 37 deg JIC
Connection Type 3      :      Male SAE 37 deg JIC
Dimension Standards      :      MS 51530, SAE 070428
Dimensions      :      3.86 in L
Fitting Type      :      Tee
Gender 1      :      Male
Gender 2      :      Male
Gender 3      :      Male
Hex Size      :      1-1/2 in
Industry Category      :      Hydraulic Adapters~Marine Hydraulic Adapters
Length      :      3.86 in
Material      :      Steel
Material Construction      :      Forged Steel
Maximum Operating Pressure      :      4000 psi
Pressure Rating      :      4000 psi
Series      :      6804-NWO
Shape      :      Tee
Thread Size      :      1-5/16-12
Thread Size 1      :      1-5/16-12
Thread Size 2      :      1-5/16-12
Thread Size 3      :      1-5/16-12
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Brennan_2501-16-16-B_CAT.pdf
