Brennan 2700-LN-12-12

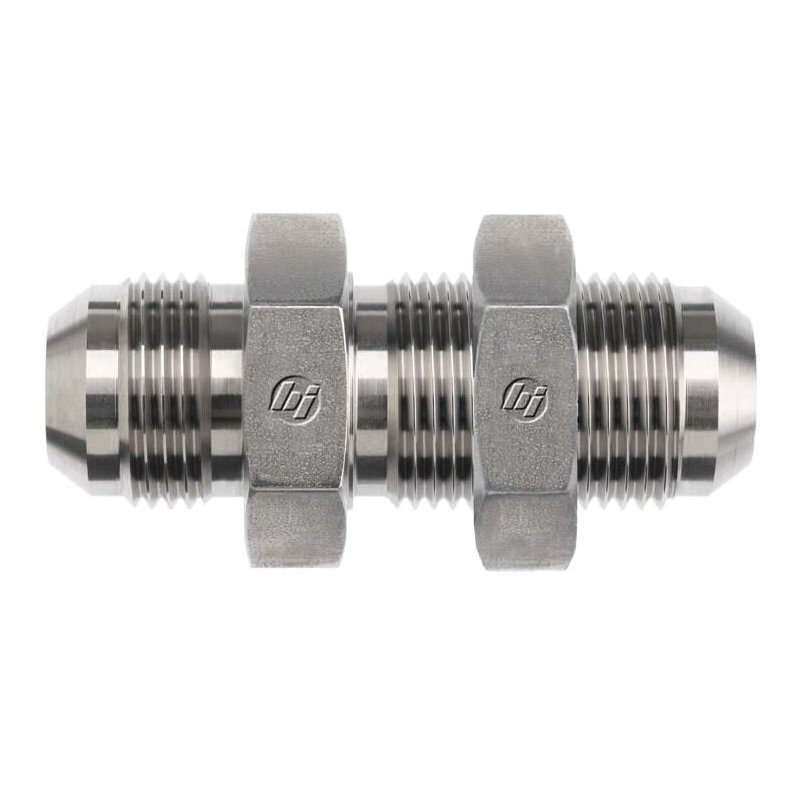

BRENNAN 2700-LN-12-12 Bulkhead Straight Adapter With Bulkhead Locknut, 1-1/16-12 Male SAE 37 deg JIC Flared x 1-1/16-12
- Manufacturer: Brennan Industries
- Brand: Brennan
- ARGPN: 2700-LN-12-12
- MPN: 2700-LN-12-12
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Brennan Industries factory-direct delivery:
-
BRENNAN Bulkhead Straight Adapter, Adapter Fitting, 1-1/16-12 Connection Size 1, Connection Type 1: Male SAE 37 deg JIC Flared, 1-1/16-12 Connection Size 2, Connection Type 2: Male SAE 37 deg JIC Flared, Male JIC|Male JIC Connection, Steel, Material Construction: Steel, Finish: CR3-Plated, 1-3/8 in Hex
| Connection Size 1 | : | 1-1/16-12 |
| Connection Size 2 | : | 1-1/16-12 |
| Connection Type | : | Male JIC|Male JIC |
| Connection Type 1 | : | Male SAE 37 deg JIC Flared |
| Connection Type 2 | : | Male SAE 37 deg JIC Flared |
| Dimensions | : | 3.09 in L |
| Finish | : | CR3-Plated |
| Fitting Type | : | Adapter |
| Hex Size | : | 1-3/8 in |
| Material | : | Steel |
| Material Construction | : | Steel |
| Maximum Operating Pressure | : | 5000 psi |
| Series | : | 2700 Series |
| Thread Size | : | 1-1/16-12 |
Line Drawing
