Brennan 2503-05-06-FG

BRENNAN 2503-05-06-FG 45 deg Elbow, 5/16 in Male SAE 37 deg JIC Flared x 3/8 in MNPTF, Steel

  • Manufacturer: Brennan Industries
  • Brand: Brennan
  • ARGPN: 2503-05-06
  • MPN: 2503-05-06-FG
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Brennan Industries factory-direct delivery: loading
  • loading
  • Add to cart

BRENNAN 45 deg Elbow, Series: 2503, Fitting Type: 45 deg Elbow, Connection Size 1: 5/16 in, Connection Type 1: Male SAE 37 deg JIC Flared, Connection Size 2: 3/8 in, Connection Type 2: MNPTF, Connection Type: Male JIC|MNPT, Steel, Material Construction: Forged Steel, CR3 Zinc-Plated, 1/2-20 x 3/8-18 Thread, 3/4 in Hex, Maximum Operating Pressure: 6000 psi

Connection Size 1      :      5/16 in
Connection Size 2      :      3/8 in
Connection Type      :      Male JIC|MNPT
Connection Type 1      :      Male SAE 37 deg JIC Flared
Connection Type 2      :      MNPTF
Dimension Standards      :      SAE 070302, MS 51508
Finish      :      CR3 Zinc-Plated
Fitting Type      :      45 deg Elbow
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      3/4 in
Industry Category      :      Marine Hydraulic Adapters
Material      :      Steel
Material Construction      :      Forged Steel
Maximum Operating Pressure      :      6000 psi
Pressure Rating      :      6000 psi
Series      :      2503 Series
Shape      :      45 deg Elbow
Thread Size      :      1/2-20 x 3/8-18
Thread Size 1      :      1/2-20
Thread Size 2      :      3/8-18
  • Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Brennan_2501-16-16-B_CAT.pdf
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/BRENNAN_0302-04_Catalog.pdf

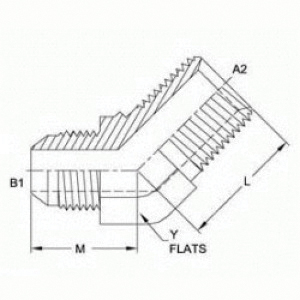

  • Line Drawing https://assets.unilogcorp.com/267/ITEM/DOC/BRENNAN_2503-02-02-FG_Line_Drawing.pdf
