Brennan 2406-04-04

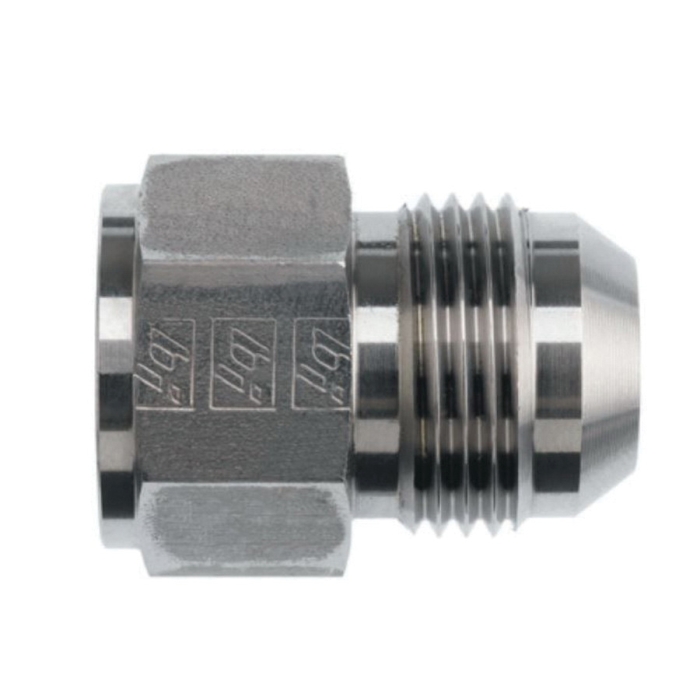

Brennan 2406-04-04 Non-Swivel Straight Reducer, 1/4 in Female SAE 37 deg JIC Flared x 1/4 in Male SAE 37 deg JIC Flared
- Manufacturer: Brennan Industries
- Brand: Brennan
- ARGPN: 2406-04-04
- MPN: 2406-04-04
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Brennan Industries factory-direct delivery:
-
Brennan Non-Swivel Straight Reducer, Series: 2406, Fitting Type: Reducer, Connection Size 1: 1/4 in, Connection Type 1: Female SAE 37 deg JIC Flared, Connection Size 2: 1/4 in, Connection Type 2: Male SAE 37 deg JIC Flared, Material Construction: Steel, 7/16-20 Thread, 0.562 in Hex, Dimension Standards: SAE J514, 1.15 in L, Maximum Operating Pressure: 7500 psi
| Connection Size 1 | : | 1/4 in |
| Connection Size 2 | : | 1/4 in |
| Connection Type | : | Female JIC|Male JIC |
| Connection Type 1 | : | Female SAE 37 deg JIC Flared |
| Connection Type 2 | : | Male SAE 37 deg JIC Flared |
| Dimension Standards | : | SAE J514 |
| Dimensions | : | 1.15 in L |
| Fitting Type | : | Reducer |
| Hex Size | : | 0.562 in |
| Material | : | Steel |
| Material Construction | : | Steel |
| Maximum Operating Pressure | : | 7500 psi |
| Series | : | 2406 |
| Thread Size | : | 7/16-20 |
