Betts™ BWF301MS BWF301MS

Betts™ BWF301MS

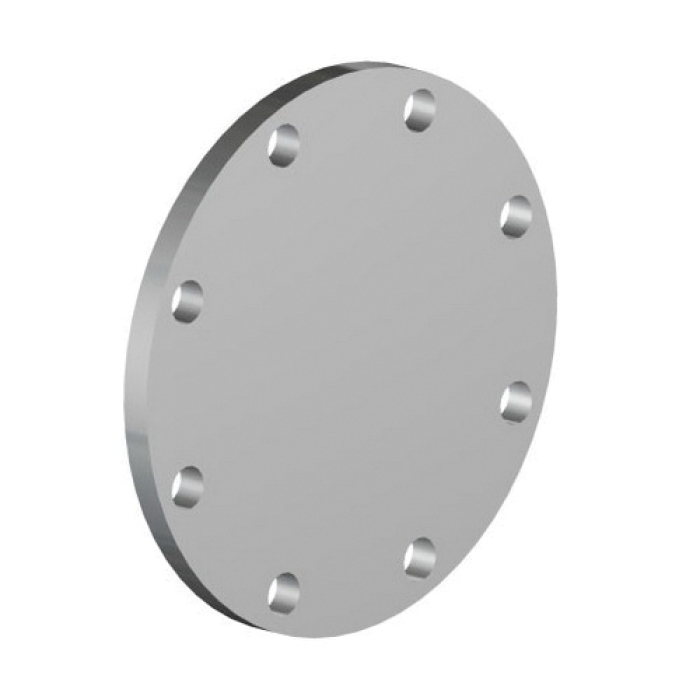

Betts™ BWF301MS Mild Steel Blind Flange, 3 in

  • Manufacturer: Betts Industries
  • Brand: Betts™
  • ARGPN: BWF301MS
  • MPN: BWF301MS
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Betts™ Blind Flange, Connection Size 1: 3 in, 75 psi, 7/16 in Bolt Hole Diameter, 8 -Bolt Hole, 1/4 in Thick Flange, Material Construction: Mild Steel

Bolt Hole Diameter      :      7/16 in
Connection Size 1      :      3 in
Flange Thickness      :      1/4 in
Material      :      Steel
Material Construction      :      Mild Steel
Number of Bolt Holes      :      8
Pressure Rating      :      75 psi
Shape      :      Flange

Betts weld flanges are designed for use on cargo tanks with bolt-hole patterns in accordance with TTMA recommended practices. Flange performance is dependent on proper weld procedures with an achievable MAWP of 75 psi (5.2 bar) for steel and stainless and 50 psi (3.4 bar) for aluminum.

  • pdfCut sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Betts_BWF201AL_SS.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Betts_BWF201AL_TD.pdf
