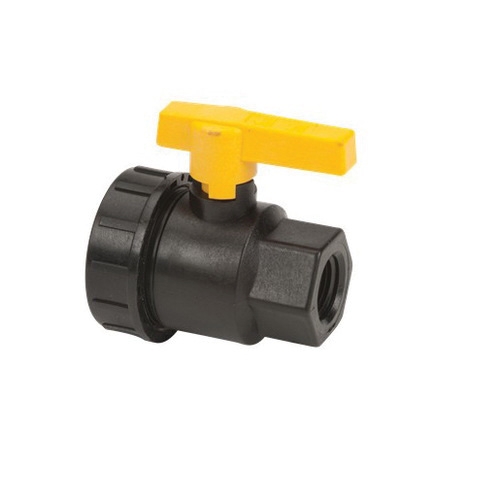

Banjo® Full-Port Single Union Ball Valve, Nominal Size: 2 in, Connection Type: FPT, Material Construction: Polypropylene, PTFE Seat Trim, EPDM Seal, 5-13/16 in Length, 6-1/4 in Height, 70 deg F, 300 psi
| Connection Type |
: |
FPT |
| Height |
: |
6-1/4 in |
| Length |
: |
5-13/16 in |
| Material |
: |
Polypropylene |
| Material Construction |
: |
Polypropylene |
| Nominal Size |
: |
2 in |
| Pressure Rating |
: |
300 psi |
| Product Type |
: |
Ball Valve |
| Seal Material |
: |
EPDM |
| Temperature Rating |
: |
70 deg F |
| Trim Material |
: |
PTFE Seat |
- Double O-rings in stem area for extra sealing protection
- EPDM O-rings to handle most fertilizers and many chemicals
- Interlocking body and end plate to allow easy thread connection when installing valves
- Precision molded in glass reinforced polypropylene, for strength and chemical-resistant
- PTFE seats for smooth operation and proper sealing characteristics
-
Catalog
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Banjo_LS050-20_CAT.pdf
-
Technical Drawing/Parts Diagram
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Banjo_UV200FP_TD.pdf
