Banjo® MVS220FP MVS220FP

Banjo® MVS220FP

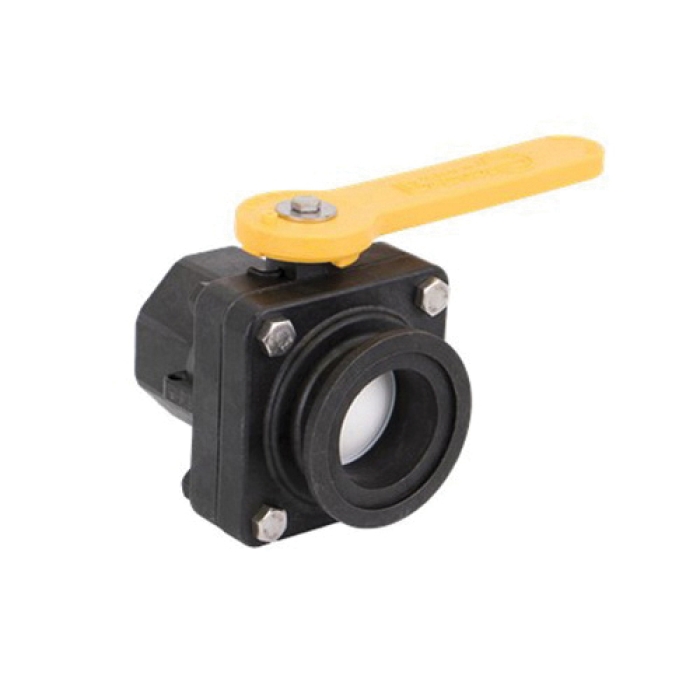

Banjo® MVS220FP Polypropylene Full-Port Manifold Stubby Ball Valve, 2 in Flange x FPT, 300 psi

pin-int

Banjo® Full-Port Manifold Stubby Ball Valve, Nominal Size: 2 in, Connection Type: Flange x FPT, Actuator Type: Handle, Material Construction: Polypropylene, PTFE Seat Trim, FKM Seal, 5-1/32 in Length, 300 psi

Actuator Type      :      Handle
Connection Type      :      Flange x FPT
Length      :      5-1/32 in
Material      :      Polypropylene
Material Construction      :      Polypropylene
Nominal Size      :      2 in
Pressure Rating      :      300 psi
Product Type      :      Ball Valve
Seal Material      :      FKM
Trim Material      :      PTFE Seat
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
  • Precision molded polypropylene is reinforced with fiberglass for additional strength
  • PTFE self-lubricating stem bushings and seats cannot stick or bind
  • Self-aligning ball moves freely against the PTFE seats for smooth operation
  • The valve opens and closes with very little pressure on the handle
  • Stainless steel bolts
  • Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Banjo_LS050-20_CAT.pdf
  • Technical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Banjo_MVS220FP_TD.pdf
