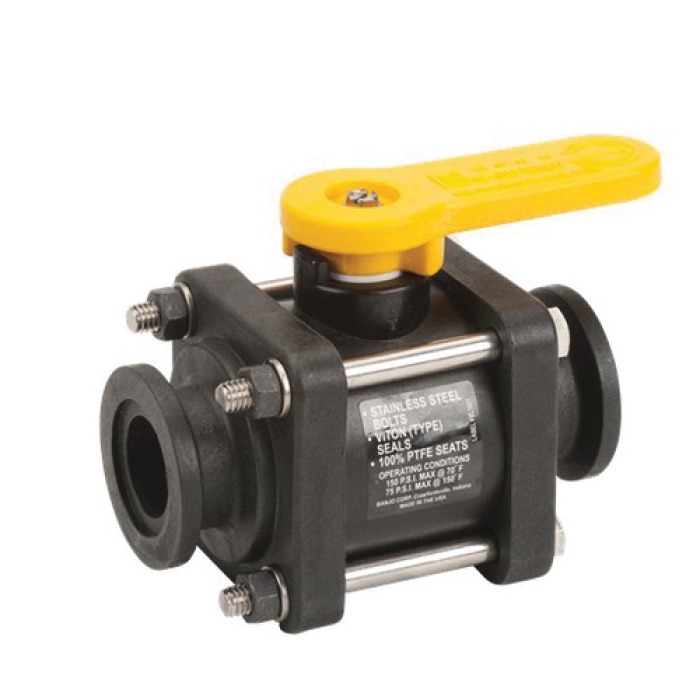

Banjo® MV100CF Polypropylene 4-Bolt Full-Port Manifold Ball Valve, 1 in Flange, 300 psi

Banjo® MV100CF

  • Manufacturers: Banjo Corporation
  • Brand Name: Banjo®
  • ARGPN: MV100CF
  • MPN: MV100CF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Banjo® 4-Bolt Full-Port Manifold Ball Valve, Nominal Size: 1 in, Connection Type: Flange, Actuator Type: Handle, Material Construction: Polypropylene, PTFE Seat Trim, FKM Seal, 4-31/32 in Length, 300 psi

Actuator Type      :      Handle
Connection Type      :      Flange
Length      :      4-31/32 in
Material      :      Polypropylene
Material Construction      :      Polypropylene
Nominal Size      :      1 in
Pressure Rating      :      300 psi
Product Type      :      Ball Valve
Seal Material      :      FKM
Trim Material      :      PTFE Seat
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
  • Precision molded polypropylene is reinforced with fiberglass for additional strength
  • PTFE self-lubricating stem bushings and seats cannot stick or bind
  • Self-aligning ball moves freely against the PTFE seats for smooth operation
  • The valve opens and closes with very little pressure on the handle
  • Stainless steel bolts
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Banjo_LS050-20_CAT.pdf
  • pdfCut sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Banjo_MV100CF_SS.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Banjo_MV100CF_TD.pdf
