Banjo® MV100BL MV100BL

Banjo® MV100BL

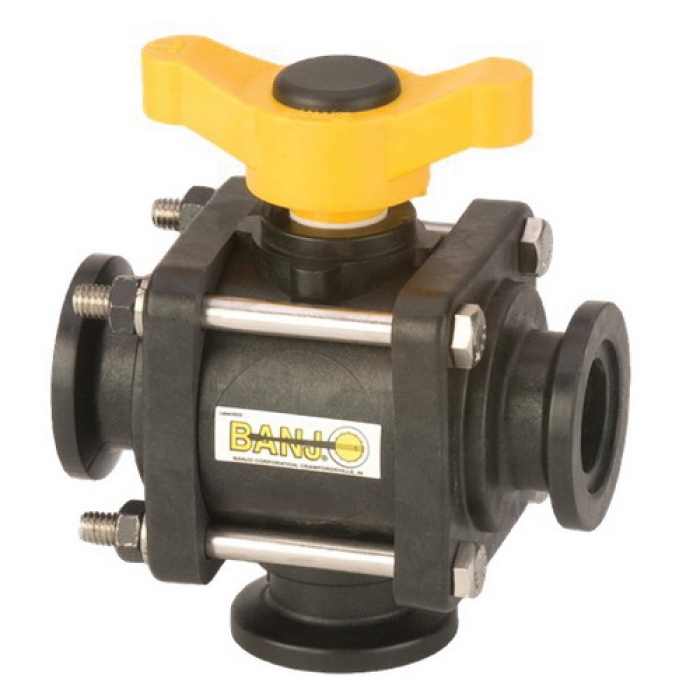

Banjo® MV100BL Polypropylene 3-Way Bottom Load Manifold Ball Valve, 1 in Flange, 300 psi

pin-int

Banjo® 3-Way Bottom Load Manifold Ball Valve, Nominal Size: 1 in, Connection Type: Flange, Actuator Type: T-Handle, Material Construction: Polypropylene, PTFE Seat Trim, FKM Seal, 4-13/16 in Length, 5-7/16 in Height, 300 psi

Actuator Type      :      T-Handle
Connection Type      :      Flange
Height      :      5-7/16 in
Length      :      4-13/16 in
Material      :      Polypropylene
Material Construction      :      Polypropylene
Nominal Size      :      1 in
Pressure Rating      :      300 psi
Product Type      :      Ball Valve
Seal Material      :      FKM
Trim Material      :      PTFE Seat
  • Precision molded polypropylene is reinforced with fiberglass for additional strength
  • Self-aligning ball moves freely against the PTFE seats for smooth operation
  • The valve opens and closes with very little pressure on the handle
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
  • PTFE self-lubricating stem bushings and seats cannot stick or bind
  • Stainless steel bolts
  • Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Banjo_MV100BL_CAT.pdf
  • Technical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Banjo_MV100BL_TD.pdf
