Banjo® BF100
  1. pin-int

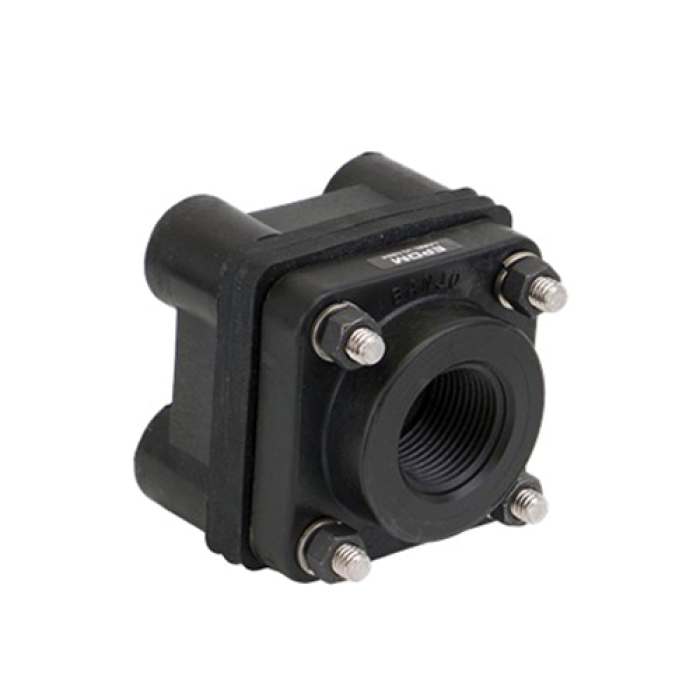

Banjo® BF100 Glass Reinforced Polypropylene Bolted Tank Flange with EPDM Gasket, 1 in FNPT

Banjo® BF100

  • Manufacturers: Banjo Corporation
  • Brand Name: Banjo®
  • ARGPN: BF100
  • MPN: BF100
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Banjo® Bolted Tank Flange with EPDM Gasket, Connection Type 1: NPT, Gender 1: Female, Thread Size 1: 1-11-1/2, Connection Size 1: 1 in, Connection Type 2: NPT, Gender 2: Female, Thread Size 2: 1-11-1/2, Connection Size 2: 1 in, 150 psi, Material Construction: Glass Reinforced Polypropylene, Black, Dimensions: 3-7/32 in H, -20 to 150 deg F

Color      :      Black
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      NPT
Connection Type 2      :      NPT
Dimensions      :      3-7/32 in H
Gender 1      :      Female
Gender 2      :      Female
Material      :      Polypropylene
Material Construction      :      Glass Reinforced Polypropylene
Pressure Rating      :      150 psi
Shape      :      Flange
Temperature Rating      :      -20 to 150 deg F
Thread Size 1      :      1-11-1/2
Thread Size 2      :      1-11-1/2
  • Standard lead times
  • Bolt head plugs sealed ultrasonically
  • EPDM gasket
  • Stainless steel bolts

Applications: For fluids
