Alemite® 1966-S 1966-S

Alemite® 1966-S

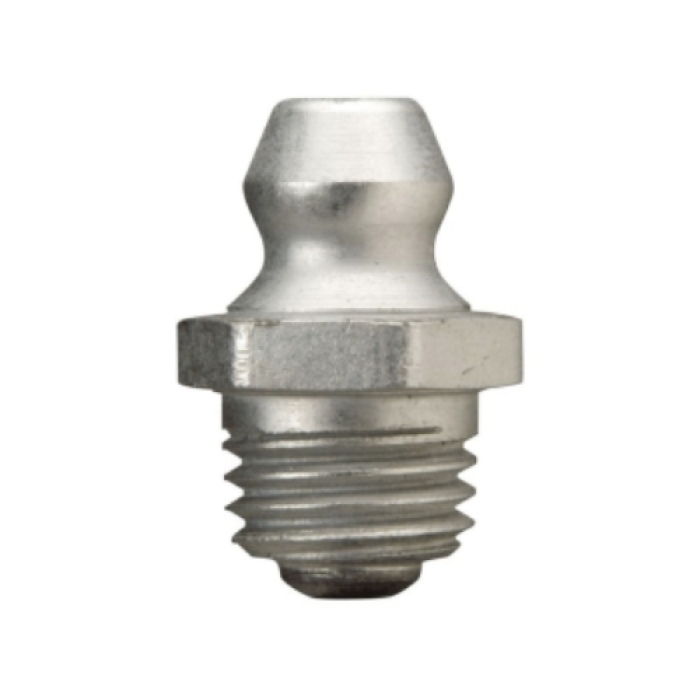

Alemite® 1966-S Stainless Steel Hydraulic Straight Grease Fitting, 1/4-28 UNF Taper Threaded, 17/32 in OAL

pin-int

Alemite® Hydraulic Straight Grease Fitting, Connection Size 1: 1/4-28 UNF, Connection Type 1: Taper Threaded, Material Construction: Stainless Steel, 3/16 in Length Shank, 7/64 in Length Thread, Hex Size: 5/16 in, Check Valve Type: Ball, 17/32 in Length

Check Valve Type      :      Ball
Connection Size 1      :      1/4-28 UNF
Connection Type 1      :      Taper Threaded
Hex Size      :      5/16 in
Length      :      17/32 in
Material      :      Stainless Steel
Material Construction      :      Stainless Steel
Product Type      :      Hydraulic Grease Fitting
Shank Length      :      3/16 in
Thread Length      :      7/64 in

Alemite® stainless steel fittings withstand severely corrosive marine and industrial environments. All stainless steel fittings have 2 notches for easy identification.

  • Greater corrosion resistance than stainless steel
  • Withstands extreme temperatures ranging from sub-zero to 700 deg F
  • Dirt excluding check ball

Applications: For harsh chemical environments and marine applications

  • Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Alemite_1606-B_CAT.pdf
  • Technical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Alemite_1966-S_TD.pdf
