Alemite® 1680-B 1680-B

Alemite® 1680-B

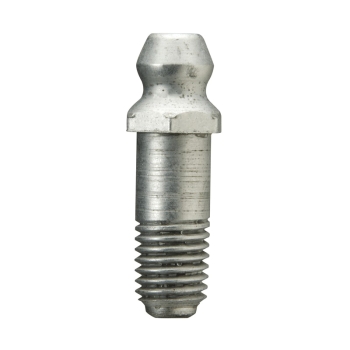

Alemite® 1680-B Zinc-Plated Steel Hydraulic Straight Grease Fitting, 1/4-28 UNF Taper Threaded, 31/32 in OAL

pin-int

Alemite® Hydraulic Straight Grease Fitting, Connection Size 1: 1/4-28 UNF, Connection Type 1: Taper Threaded, Material Construction: Steel, Finish: Zinc-Plated, 5/8 in Length Shank, 13/64 in Length Thread, Hex Size: 5/16 in, Check Valve Type: Ball, 31/32 in Length

Check Valve Type      :      Ball
Connection Size 1      :      1/4-28 UNF
Connection Type 1      :      Taper Threaded
Finish      :      Zinc-Plated
Hex Size      :      5/16 in
Length      :      31/32 in
Material      :      Steel
Material Construction      :      Steel
Product Type      :      Hydraulic Grease Fitting
Shank Length      :      5/8 in
Thread Length      :      13/64 in

Alemite® 1/4-28 taper thread fittings are used on most cars and trucks, as well as many industrial machines. It is recommended that SAE-LT taper threads be assembled into 1/4-28 UNF, Class 3B, straight threaded holes having a modified maximum minor diameter of 0.2151 in, to ensure 75% minimum thread height.

  • Exceeds 72 hr salt spray test
  • Dirt excluding check ball
  • Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Alemite_1606-B_CAT.pdf
