Aeroquip® FJ3114-2020S

100R5-Style crimp fittings from Eaton complement the company's industry recognized, reusable fitting line. Aeroquip® 100R5 fittings are a low cost, lightweight alternative for high-volume applications that do not require field assembled fittings. Unique crimping dies are required for assembly.

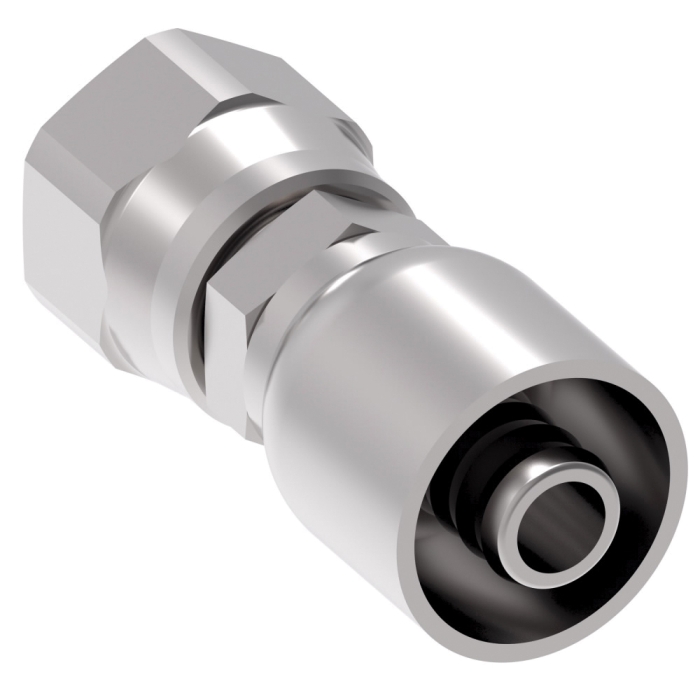

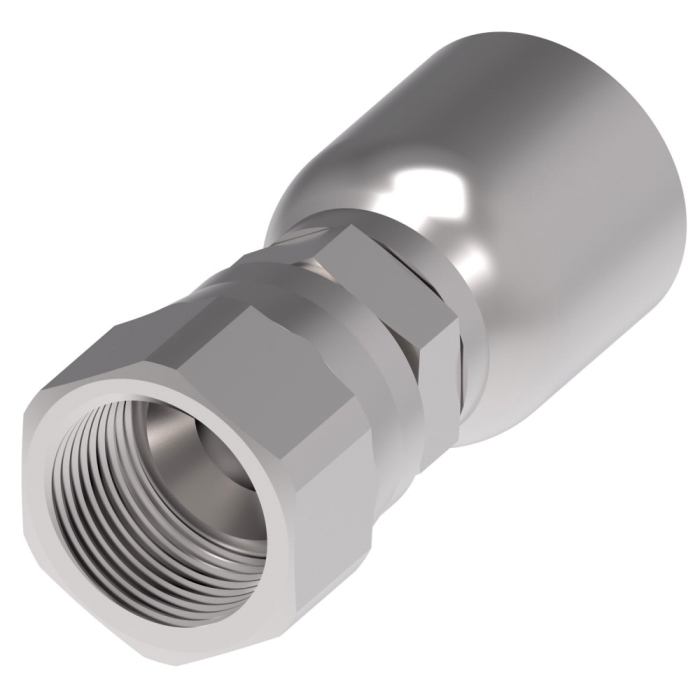

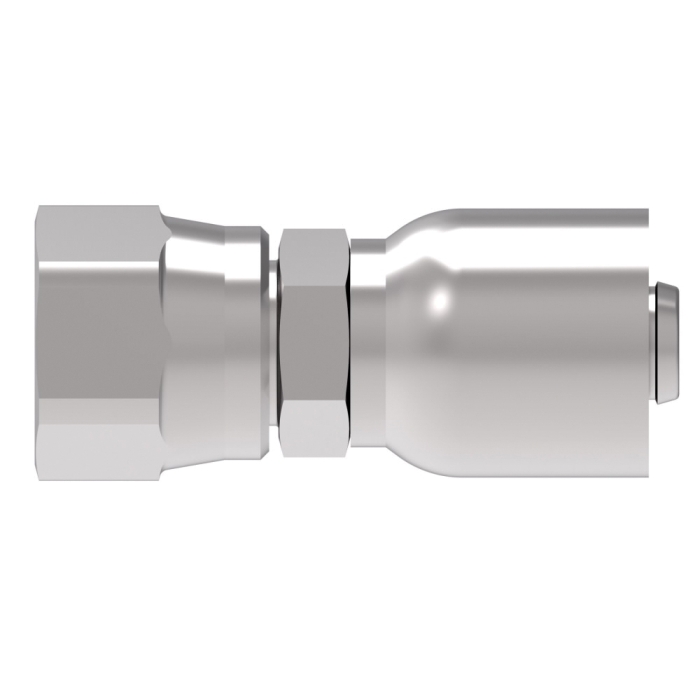

Aeroquip® 100R5 Crimp Straight Hose Fitting, Series: FJ3114, Fitting Type: Hose Fitting, Connection Size 1: 1-1/4 in, Connection Type 1: Hose, Connection Size 2: 1-1/4 in, Connection Type 2: Female SAE 37 deg JIC Swivel, Connection Type: Hose|Female JIC Swivel, Hose Dash Size: 20, Cut-Off Factor: 1.79 in, Steel, Material Construction: Carbon Steel, Dura-Kote, 1-5/8-12 Thread, 2 in Hex, For Use With: 1503, FC234, FC300, FC350 and FC355 Series Hoses, 2.97 in L x 2 in W x 2.3 in H, Maximum Operating Pressure: 17236750 psi, -40 to 50 deg F Operating

• Designed as a one-piece fitting
• Lighter in weight than 100R5 re-usable fittings
• One-piece design simplifies ordering and inventory
• Cost reduction compared to 100R5 re-usable fittings
• Fast and easy to assemble
