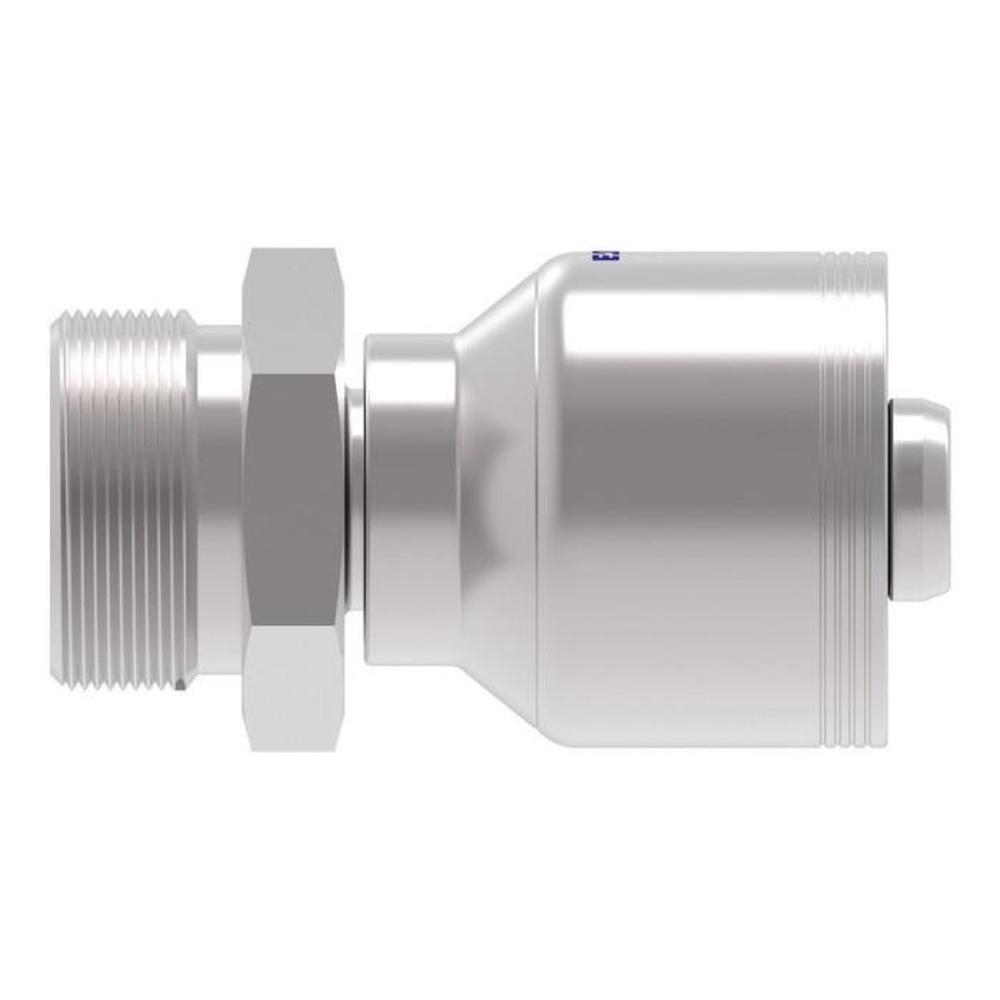

Aeroquip® 4S16EK10

Aeroquip® by Danfoss 4-Spiral Rigid Crimp Straight Hose Fitting, Series: 4S, Fitting Type: Hose Fitting, Connection Size 1: 5/8 in, Connection Type 1: Hose, Connection Size 2: 20 mm, Connection Type 2: Male DIN Heavy 24 deg Seat, Connection Type: Hose|Male Metric, Hose Dash Size: 10, Cut-Off Factor: 1.28 in, Steel, Material Construction: Carbon Steel, Dura-Kote, M30 x 2 Thread, 1.26 in Hex, For Use With: EC525-12 to -32, GH493-12 to FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12, -16, GH506-12 to -32, FC254-12 to -32, EC810-12, -16, EC600-12, -16 H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32 and H485-16 Series Hoses, 2.441 in L x 1.481 in W x 1.481 in H

Connection Size 1	:	5/8 in
Connection Size 2	:	20 mm
Connection Type	:	Hose|Male Metric
Connection Type 1	:	Hose
Connection Type 2	:	Male DIN Heavy 24 deg Seat
Cut-Off Factor	:	1.28 in
Dimensions	:	2.441 in L x 1.481 in W x 1.481 in H
Finish	:	Dura-Kote
Fitting Type	:	Hose Fitting
For Use With	:	EC525-12 to -32, GH493-12 to FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12, -16, GH506-12 to -32, FC254-12 to -32, EC810-12, -16, EC600-12, -16 H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32 and H485-16 Series Hoses
Hex Size	:	1.26 in
Hose Dash Size	:	10
Material	:	Steel
Material Construction	:	Carbon Steel
Series	:	4S Series
Thread Size	:	M30 x 2

4-Spiral Rigid Crimp Straight Hose FittingNew Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistantNew patent pending dura-seal technology to eliminate hose assembly cool down leakageClass zero leakage SAE J1176 on approved hose stylesEaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
