Aeroquip® 4S10KF10

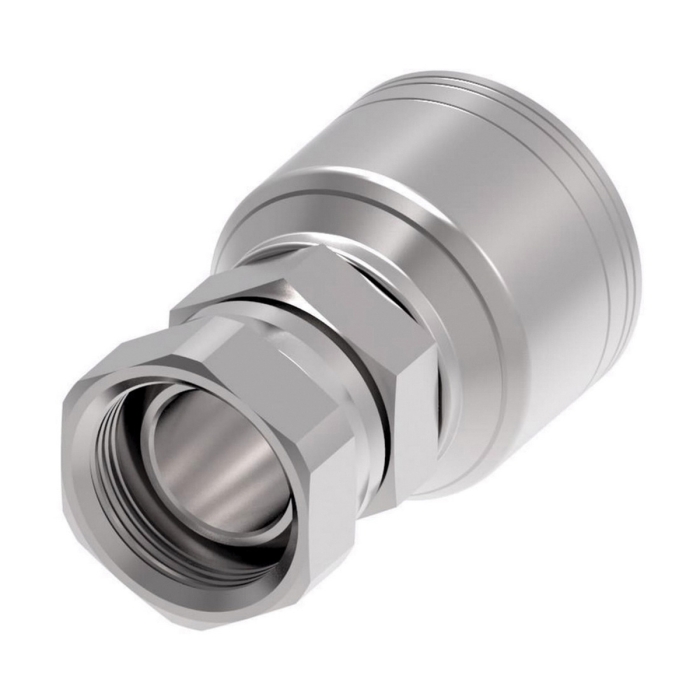

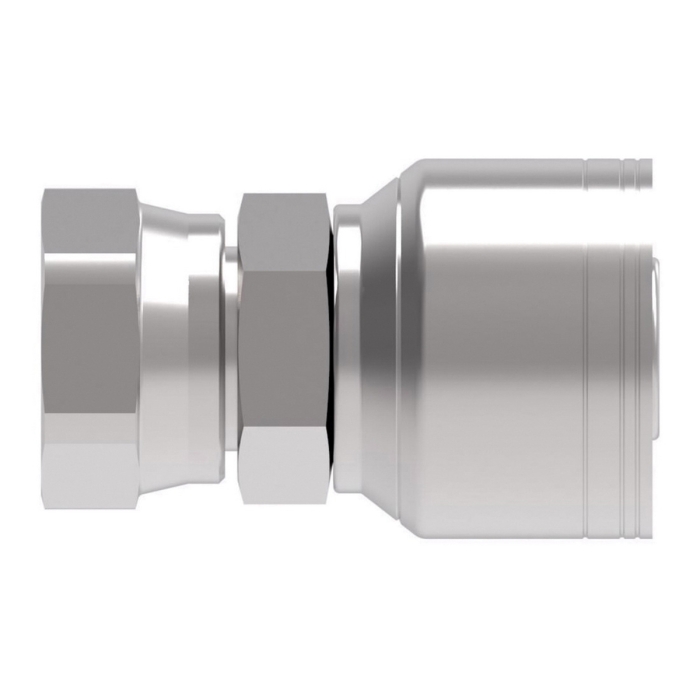

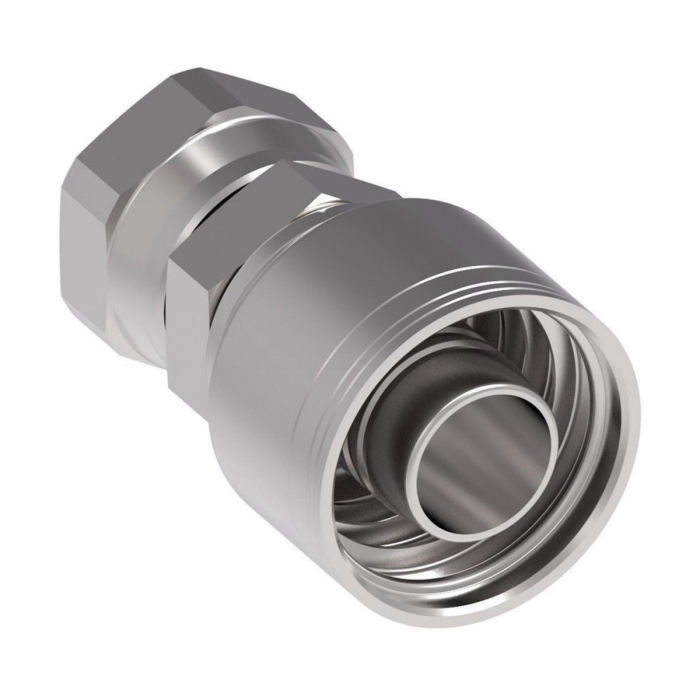

Aeroquip® 4S10KF10 4-Spiral Crimp Straight Hose Fitting, 5/8 in Hose
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: 4S10KF10
- MPN: 4S10KF10
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion resistance results in higher operating performance and less equipment downtime.
Aeroquip® 4-Spiral Crimp Straight Hose Fitting, Series: 4S, Fitting Type: Hose Fitting, Connection Size 1: 5/8 in, Connection Type 1: Hose, Connection Size 2: 24 mm, Connection Type 2: Female 30 deg Komatsu Flared Seat Swivel, Connection Type: Hose|Female Komatsu Swivel, Hose Dash Size: 10, Cut-Off Factor: 1.81 in, Steel, Material Construction: Carbon Steel, Dura-Kote, M24 x 1.5 Thread, 1.25 x 1.118 in Hex, For Use With: EC525-12 to -32, GH493-12 to FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12, -16, GH506-12 to -32, FC254-12 to -32, EC810-12, -16, EC600-12, -16 H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32 and H485-16 Series Hoses, 2.838 in L x 1.481 in W x 1.481 in H
| Connection Size 1 | : | 5/8 in |
| Connection Size 2 | : | 24 mm |
| Connection Type | : | Hose|Female Komatsu Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Female 30 deg Komatsu Flared Seat Swivel |
| Cut-Off Factor | : | 1.81 in |
| Dimensions | : | 2.838 in L x 1.481 in W x 1.481 in H |
| Finish | : | Dura-Kote |
| Fitting Type | : | Hose Fitting |
| For Use With | : | EC525-12 to -32, GH493-12 to FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12, -16, GH506-12 to -32, FC254-12 to -32, EC810-12, -16, EC600-12, -16 H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32 and H485-16 Series Hoses |
| Hex Size | : | 1.25 x 1.118 in |
| Hose Dash Size | : | 10 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Series | : | 4S Series |
| Thread Size | : | M24 x 1.5 |
- New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
- New patent pending dura-seal technology to eliminate hose assembly cool down leakage
- Class zero leakage SAE J1176 on approved hose styles
- Eaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
