Aeroquip® 4S8BFA8

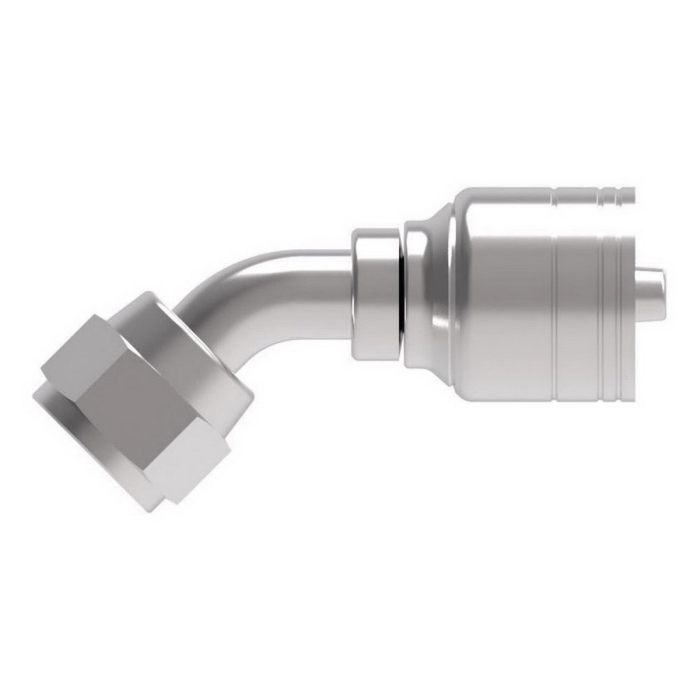

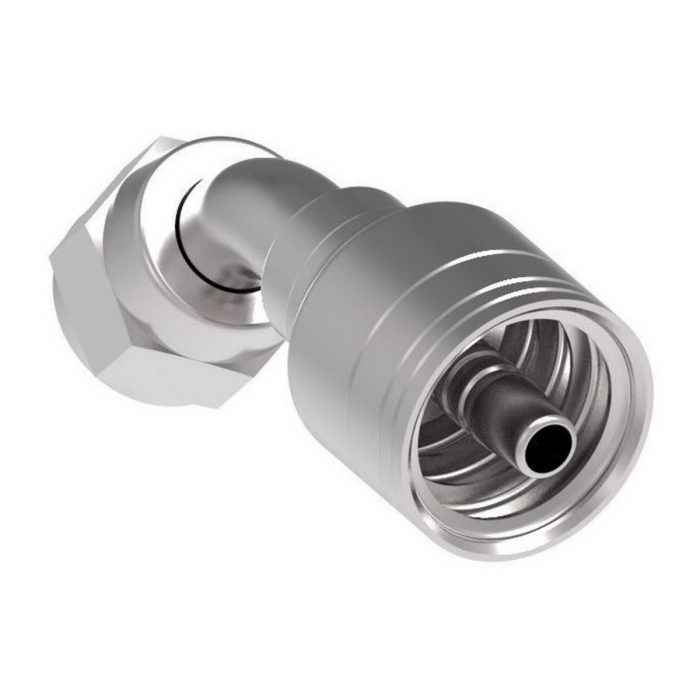

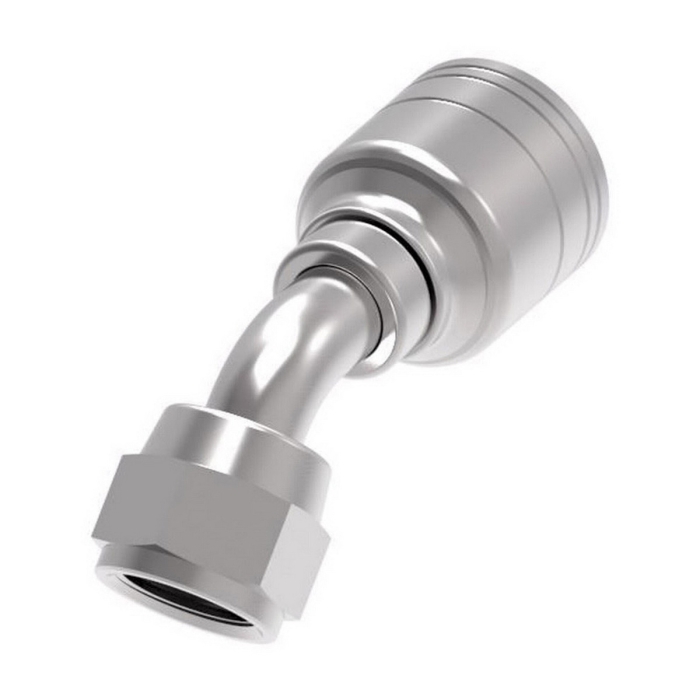

Aeroquip® 4S Series 4S8BFA8 4-Spiral Crimp Hose 45 deg Elbow, 1/2 in Hose x 1/2 in, Steel
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: 4S8BFA8
- MPN: 4S8BFA8
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion resistance results in higher operating performance and less equipment downtime.
Aeroquip® 4-Spiral Crimp Hose 45 deg Elbow, Series: 4S, Fitting Type: 45 deg Elbow, Connection Size 1: 1/2 in, Connection Type 1: Hose, Connection Size 2: 1/2 in, Connection Type 2: Female BSPP 60 deg Cone Seat 30 deg Swivel, Hose Dash Size: 08, Cut-Off Factor: 2.43 in, Material Construction: Carbon Steel, Dura-Kote, G 1/2-14 Thread, 1.06 in Hex, For Use With: EC525-12 to -32, GH493-12 to -32, FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12 and -16, GH506-12 to -32, FC254-12 to -32, EC810-12 and -16, EC600-12 and -16, H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32 and H485-16 Hoses, Dimension Standards: SAE J1176, 4.13 in L x 1.34 in W x 2.18 in H
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type | : | Hose|Female BSP Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Female BSPP 60 deg Cone Seat 30 deg Swivel |
| Cut-Off Factor | : | 2.43 in |
| Dimension Standards | : | SAE J1176 |
| Dimensions | : | 4.13 in L x 1.34 in W x 2.18 in H |
| Finish | : | Dura-Kote |
| Fitting Type | : | 45 deg Elbow |
| For Use With | : | EC525-12 to -32, GH493-12 to -32, FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12 and -16, GH506-12 to -32, FC254-12 to -32, EC810-12 and -16, EC600-12 and -16, H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32 and H485-16 Hoses |
| Hex Size | : | 1.06 in |
| Hose Dash Size | : | 08 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Series | : | 4S |
| Thread Size | : | G 1/2-14 |
- New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
- New patent pending dura-seal technology to eliminate hose assembly cool down leakage
- Class zero leakage SAE J1176 on approved hose styles
- Eaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
