Aeroquip® 206209-16-16S 206209-16-16S

Aeroquip® 206209-16-16S

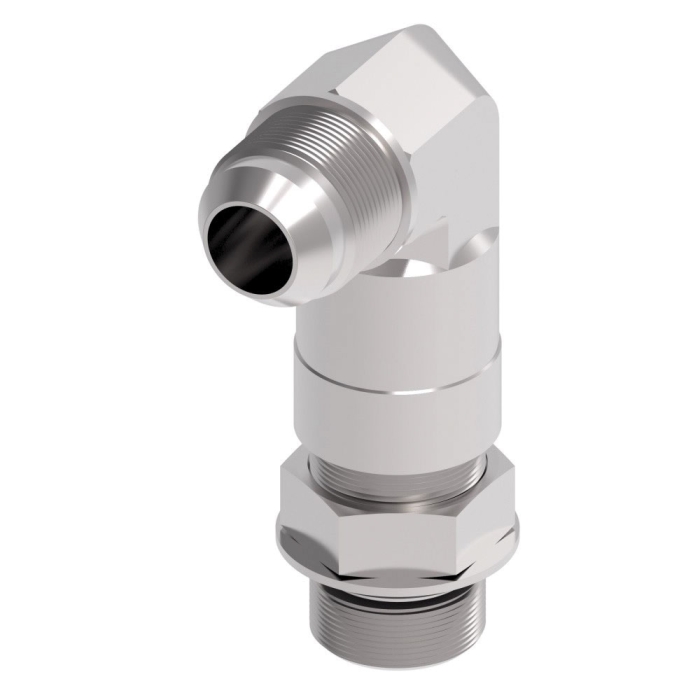

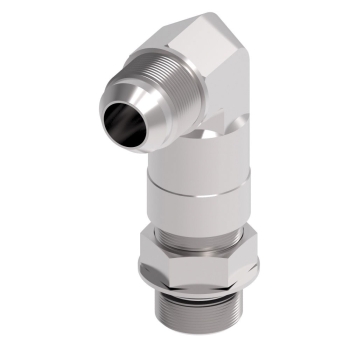

Aeroquip® 206209 Dura-Kote Carbon Steel 90 deg Long Elbow, 1 in Male SAE ORB x 1 in Male SAE 37 deg JIC Flare

  • Manufacturer: Danfoss Power Solutions
  • Brand: Aeroquip®
  • ARGPN: 206209-16-16S
  • MPN: 206209-16-16S
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Aeroquip® 90 deg Long Elbow, Series: 206209, Connection Type 1: SAE ORB, Gender 1: Male, Connection Size 1: 1 in, Thread Size 1: 1-5/16-12 UNF, Connection Type 2: SAE 37 deg JIC Flare, Gender 2: Male, Connection Size 2: 1 in, Thread Size 2: 1-5/16-12 UNF, Hex Size: 1.26 x 1-1/2 in, Dimension Standards: SAE 070320, 3000 psi, Material Construction: Carbon Steel, Finish: Dura-Kote, 4.35 in Length, 1-1/2 in Width, 2.56 in Height, -40 to 250 deg F

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type      :      ORB~JIC
Connection Type 1      :      SAE ORB
Connection Type 2      :      SAE 37 deg JIC Flare
Dimension Standards      :      SAE 070320
Finish      :      Dura-Kote
Fitting Type      :      90 deg Elbow
Gender 1      :      Male
Gender 2      :      Male
Height      :      2.56 in
Hex Size      :      1.26 x 1-1/2 in
Length      :      4.35 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      3000 psi
Series      :      206209
Shape      :      90 deg Elbow
Temperature Rating      :      -40 to 250 deg F
Thread Size 1      :      1-5/16-12 UNF
Thread Size 2      :      1-5/16-12 UNF
Width      :      1-1/2 in

Applications: Marine/military, chemical processing, pulp and paper industries, food and beverage processing, off-shore drilling

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_401-12B_CAT.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_206209-16-16S_TD.pdf
