Aeroquip® 2062-8-8S

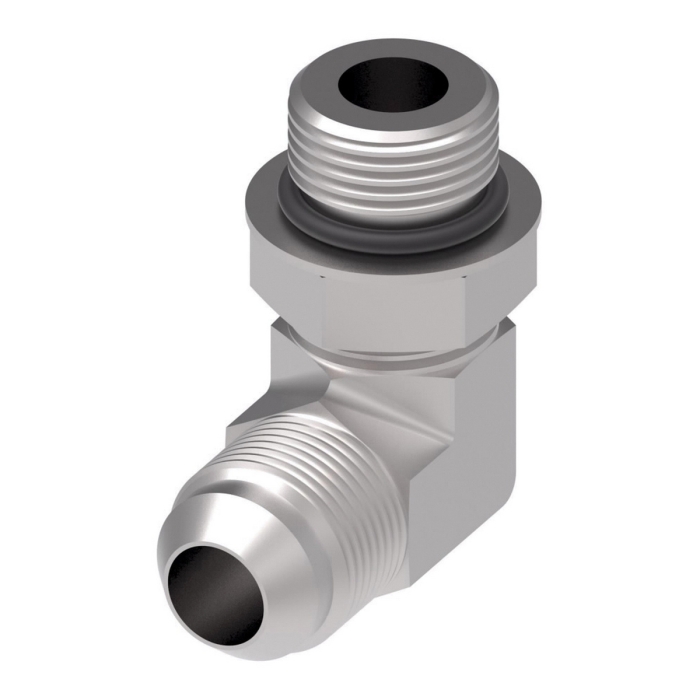

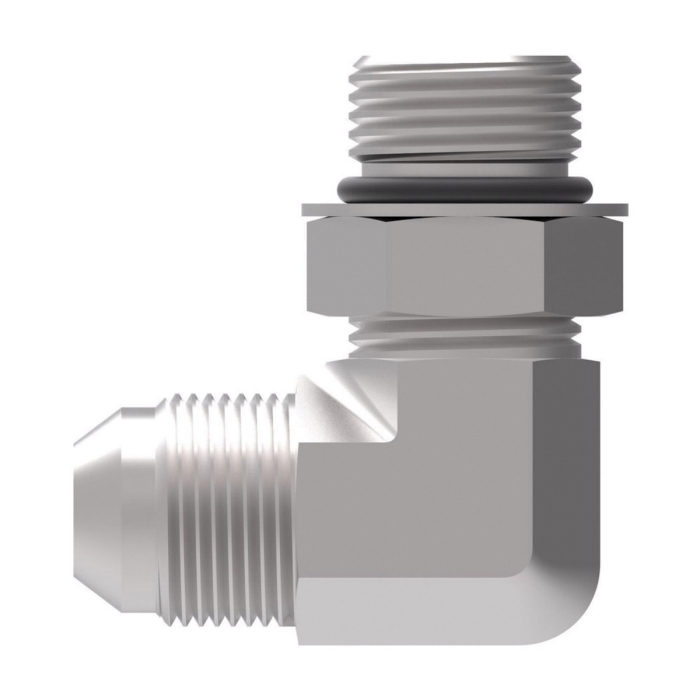

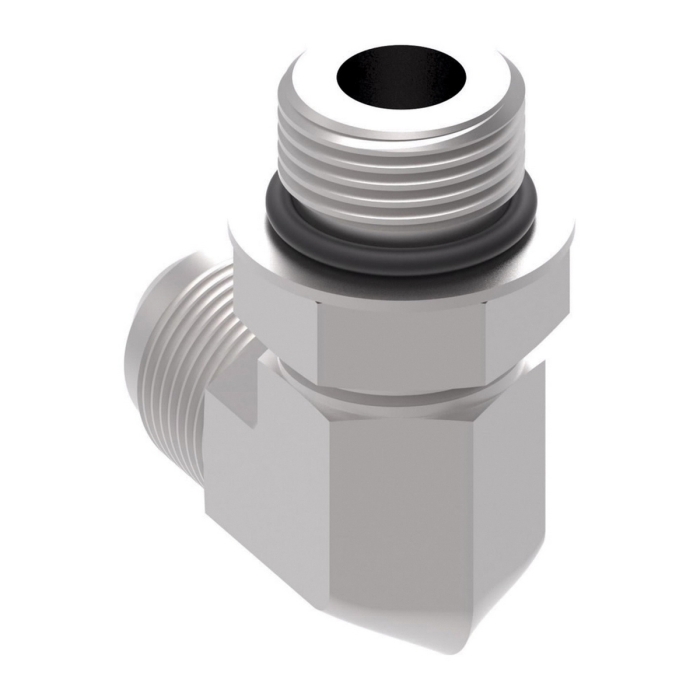

Aeroquip® 2062-8-8S 90 deg Elbow, 1/2 in Male SAE ORB x 1/2 in Male SAE 37 deg JIC Flared, Steel
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: 2062-8-8S
- MPN: 2062-8-8S
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Aeroquip® 90 deg Elbow, Series: 2062, Fitting Type: 90 deg Elbow, Connection Size 1: 1/2 in, Connection Type 1: Male SAE ORB, Connection Size 2: 1/2 in, Connection Type 2: Male SAE 37 deg JIC Flared, Material Construction: Carbon Steel, Dura-Kote, 3/4-16 Thread, 0.87 x 0.75 in Hex, Dimension Standards: SAE 070220, 0.87 in W x 1.685 in H, Maximum Operating Pressure: 4000 psi, -40 to 250 deg F Operating
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type | : | Male SAE ORB|Male JIC |
| Connection Type 1 | : | Male SAE ORB |
| Connection Type 2 | : | Male SAE 37 deg JIC Flared |
| Dimension Standards | : | SAE 070220 |
| Dimensions | : | 0.87 in W x 1.685 in H |
| Finish | : | Dura-Kote |
| Fitting Type | : | 90 deg Elbow |
| Hex Size | : | 0.87 x 0.75 in |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Maximum Operating Pressure | : | 4000 psi |
| Operating Temperature | : | -40 to 250 deg F |
| Series | : | 2062 |
| Thread Size | : | 3/4-16 |
