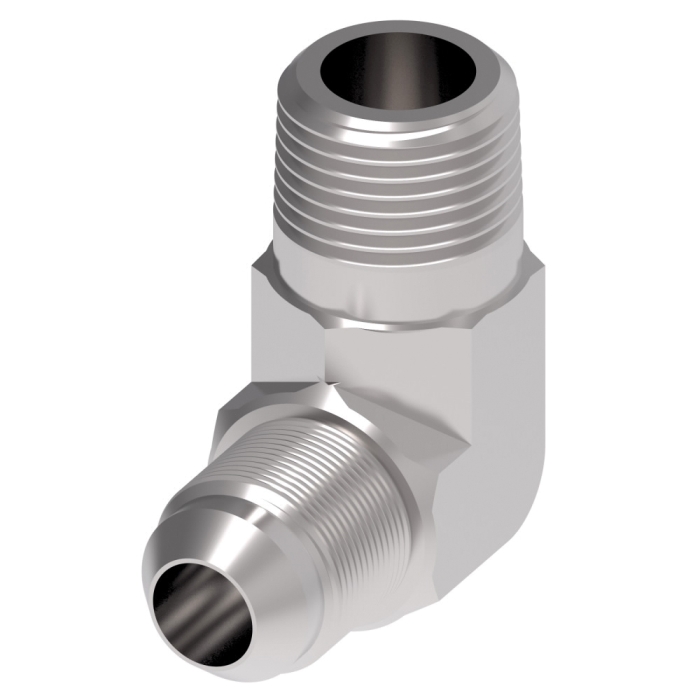

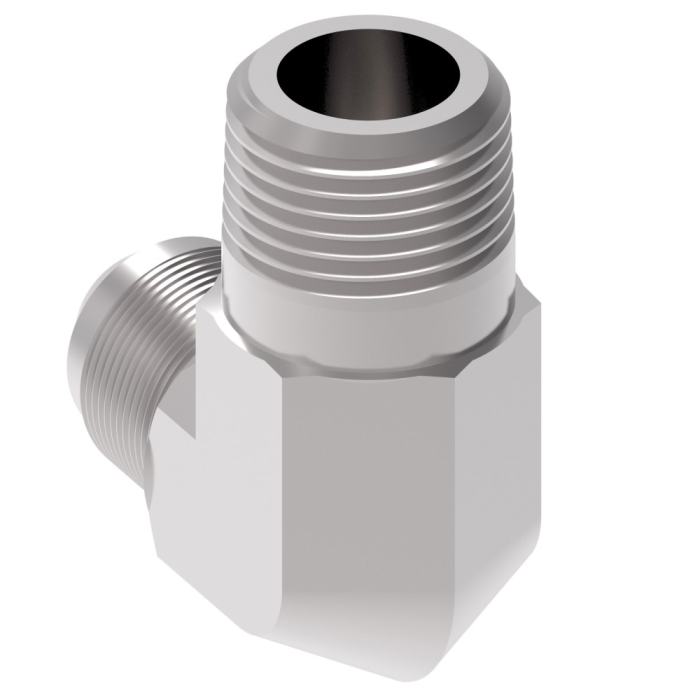

Aeroquip® 2024-8-12S 90 deg Elbow, 3/4 in Male SAE 37 deg JIC Flared x 1/2 in MNPTF, Steel
Eaton has provided a comprehensive product line focus to be the #1 choice of Eaton channel partners and OE manufacturers for a select group of carbon steel adapters.
Aeroquip® 90 deg Elbow, Series: 2024, Fitting Type: 90 deg Elbow, Connection Size 1: 3/4 in, Connection Type 1: Male SAE 37 deg JIC Flared, Connection Size 2: 1/2 in, Connection Type 2: MNPTF, Material Construction: Carbon Steel, Dura-Kote, 1-1/16-12 x 1/2-14 Thread, 0.614 in Hex, Dimension Standards: SAE 070202, 1.897 in L x 0.614 in W x 1.967 in H, -65 to 250 deg F Operating
Connection Size 1 | : | 3/4 in |
Connection Size 2 | : | 1/2 in |
Connection Type | : | Male JIC|MNPT |
Connection Type 1 | : | Male SAE 37 deg JIC Flared |
Connection Type 2 | : | MNPTF |
Dimension Standards | : | SAE 070202 |
Dimensions | : | 1.897 in L x 0.614 in W x 1.967 in H |
Finish | : | Dura-Kote |
Fitting Type | : | 90 deg Elbow |
Hex Size | : | 0.614 in |
Material | : | Steel |
Material Construction | : | Carbon Steel |
Operating Temperature | : | -65 to 250 deg F |
Series | : | 2024 |
Thread Size | : | 1-1/16-12 x 1/2-14 |
