Aeroquip® 1AA16FRA12

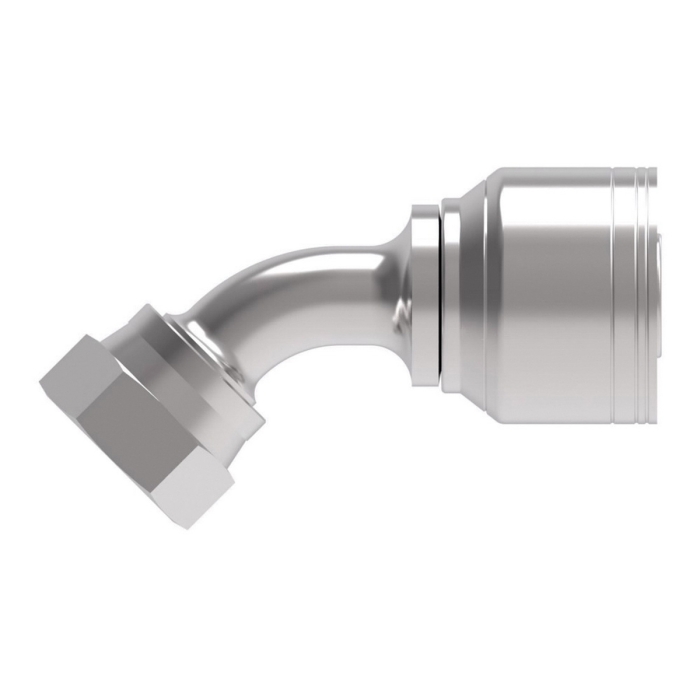

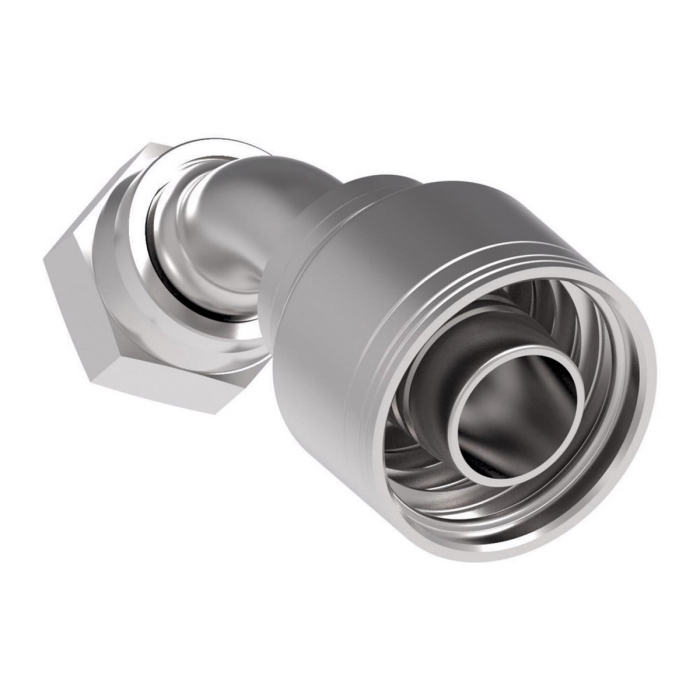

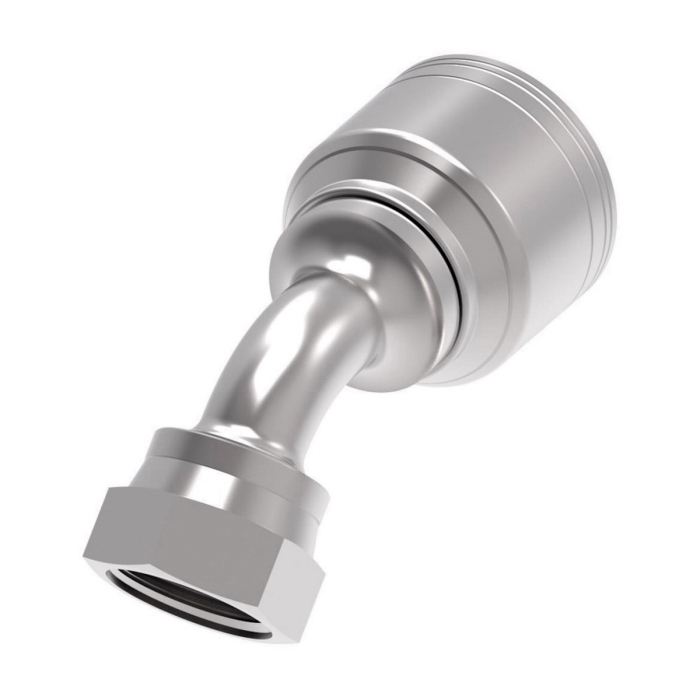

Aeroquip® 1AA16FRA12 Crimp Hose 45 deg Elbow, 3/4 in Hose x 1 in Female ORFS Swivel, Steel
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: 1AA16FRA12
- MPN: 1AA16FRA12
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Eaton's best selling one-piece bite the wire style hose fitting that is qualified with virtually all Aeroquip one and two braided hydraulic hoses.
Aeroquip® Crimp Hose 45 deg Elbow, Series: 1A, Fitting Type: 45 deg Elbow, Connection Size 1: 3/4 in, Connection Type 1: Hose, Connection Size 2: 1 in, Connection Type 2: Female ORFS Swivel, Connection Type: Hose|Female ORFS Swivel, Hose Dash Size: 12, Cut-Off Factor: 2.85 in, Steel, Material Construction: Carbon Steel, Dura-Kote, 1-7/16-12 Thread, 1-5/8 in Hex, For Use With: 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210 and EC118 Series Hoses, 5.13 in L x 1.625 in W x 3.11 in H
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 1 in |
| Connection Type | : | Hose|Female ORFS Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Female ORFS Swivel |
| Cut-Off Factor | : | 2.85 in |
| Dimensions | : | 5.13 in L x 1.625 in W x 3.11 in H |
| Finish | : | Dura-Kote |
| Fitting Type | : | 45 deg Elbow |
| For Use With | : | 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210 and EC118 Series Hoses |
| Hex Size | : | 1-5/8 in |
| Hose Dash Size | : | 12 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Series | : | 1A Series |
| Thread Size | : | 1-7/16-12 |
- New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
- Bite the wire technology for best in class connection and sealing
- Class zero leakage SAE J1176 on approved hose styles
- Eaton's MatchMate™ program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
