Aeroquip® 1AA16FJB16

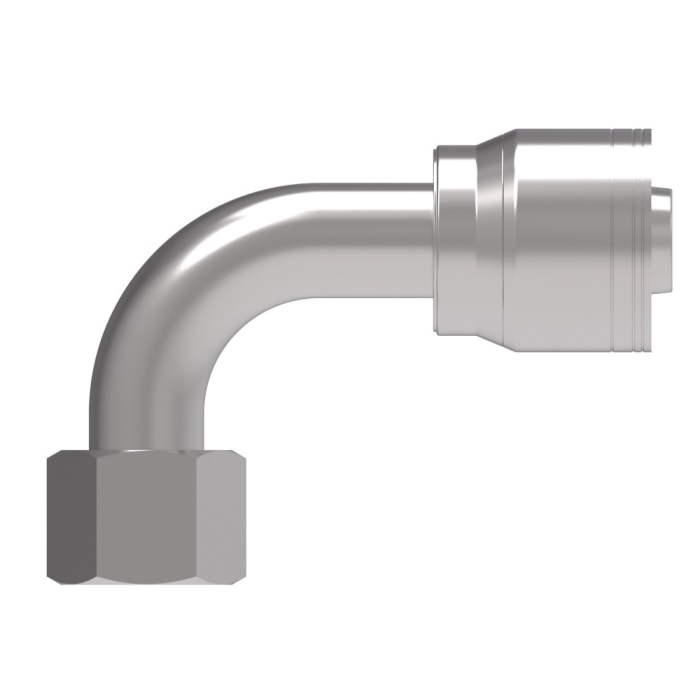

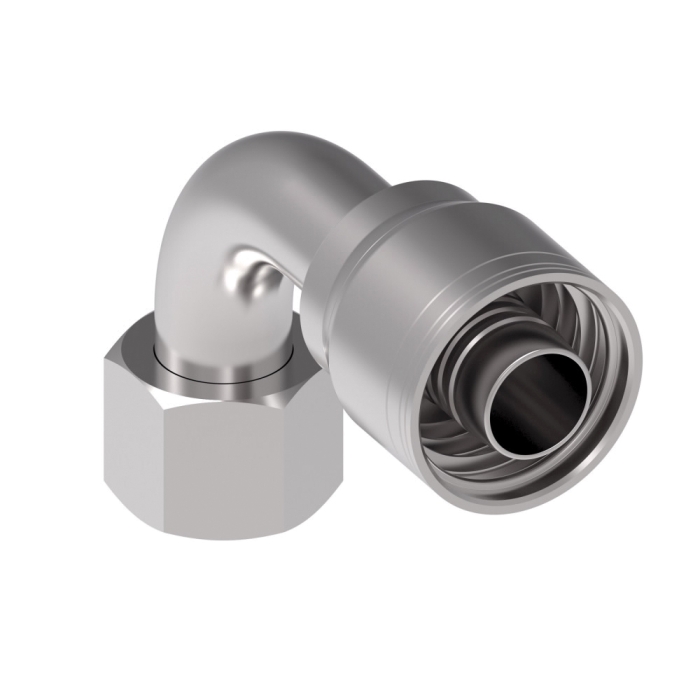

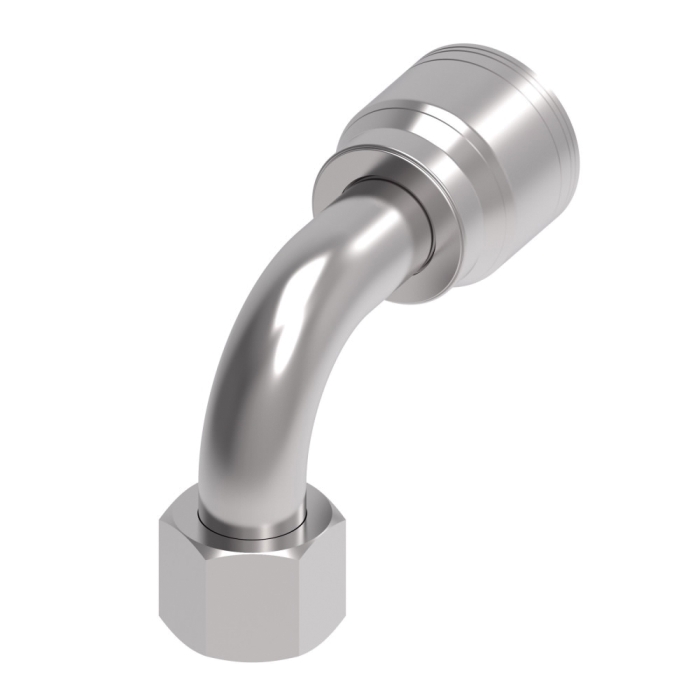

Aeroquip® 1AA16FJB16 Crimp Hose 90 deg Elbow, 1 in Hose x 1 in Female SAE 37 deg JIC Swivel, Steel
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: 1AA16FJB16
- MPN: 1AA16FJB16
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Aeroquip® Crimp Hose 90 deg Elbow, Series: 1A, Fitting Type: 90 deg Elbow, Connection Size 1: 1 in, Connection Type 1: Hose, Connection Size 2: 1 in, Connection Type 2: Female SAE 37 deg JIC Swivel, Connection Type: Hose|Female JIC Swivel, Hose Dash Size: 16, Cut-Off Factor: 2.87 in, Steel, Material Construction: Carbon Steel, Dura-Kote, 1-5/16-12 Thread, 1-1/2 x 1/2 in Hex, For Use With: 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210 and EC118 Series Hoses, 5.13 in L x 1.94 in W x 3.96 in H
| Connection Size 1 | : | 1 in |
| Connection Size 2 | : | 1 in |
| Connection Type | : | Hose|Female JIC Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Female SAE 37 deg JIC Swivel |
| Cut-Off Factor | : | 2.87 in |
| Dimensions | : | 5.13 in L x 1.94 in W x 3.96 in H |
| Finish | : | Dura-Kote |
| Fitting Type | : | 90 deg Elbow |
| For Use With | : | 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210 and EC118 Series Hoses |
| Hex Size | : | 1-1/2 x 1/2 in |
| Hose Dash Size | : | 16 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Series | : | 1A Series |
| Thread Size | : | 1-5/16-12 |
