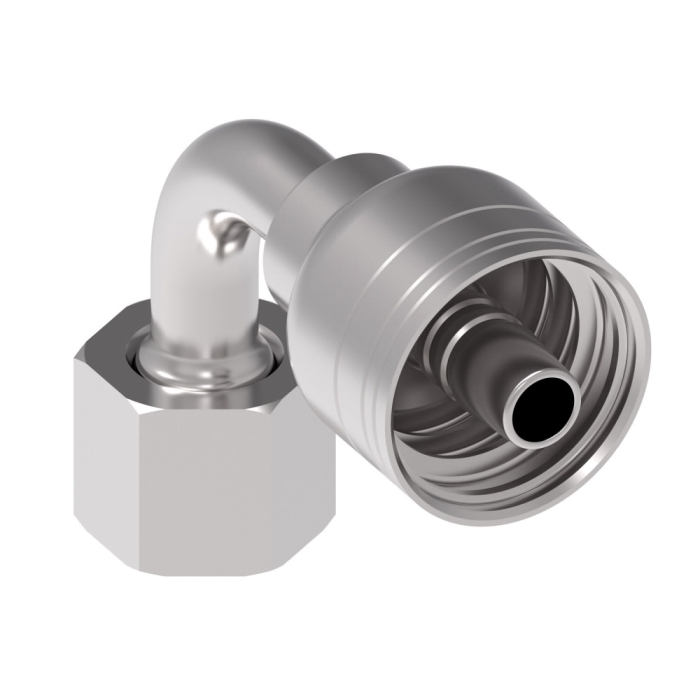

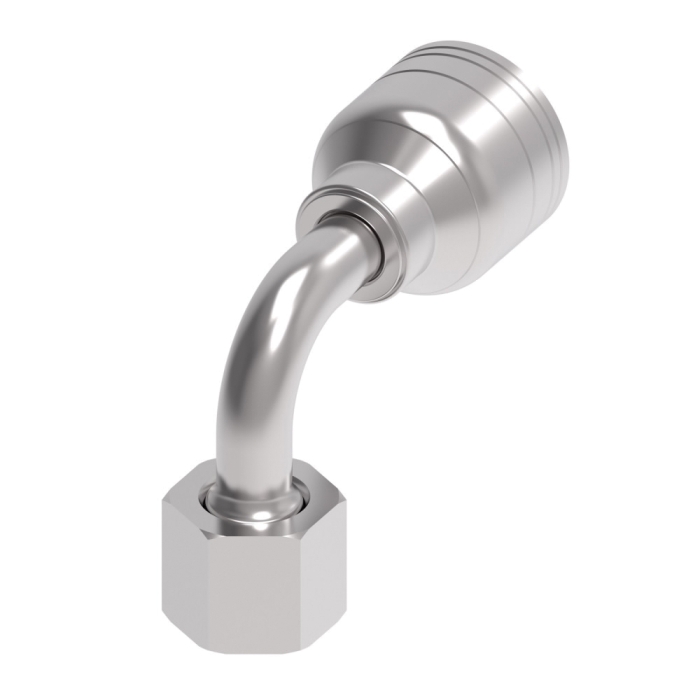

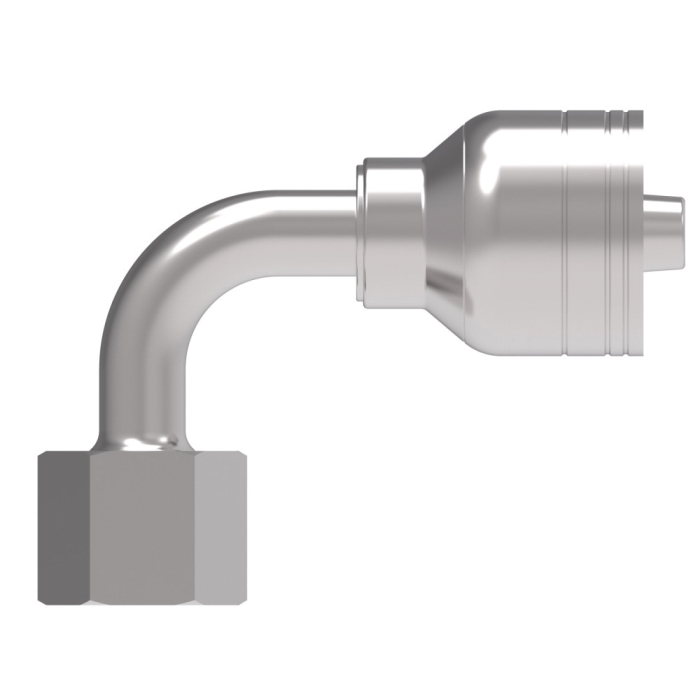

Aeroquip® 1A6BFB6 Crimp Hose 90 deg Elbow, 3/8 in Hose x 3/8 in Female JIS/BSPP Swivel, Steel
Aeroquip® Crimp Hose 90 deg Elbow, Series: 1A, Fitting Type: 90 deg Elbow, Connection Size 1: 3/8 in, Connection Type 1: Hose, Connection Size 2: 3/8 in, Connection Type 2: Female JIS/BSPP Swivel, Connection Type: Hose|Female BSP Swivel, Hose Dash Size: 06, Cut-Off Factor: 1.24 in, Steel, Material Construction: Carbon Steel, Dura-Kote, G 3/8-19 Thread, 0.87 in Hex, For Use With: 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210 and EC118 Series Hoses, 2.67 in L x 1.067 in W x 1.91 in H
Connection Size 1 | : | 3/8 in |
Connection Size 2 | : | 3/8 in |
Connection Type | : | Hose|Female BSP Swivel |
Connection Type 1 | : | Hose |
Connection Type 2 | : | Female JIS/BSPP Swivel |
Cut-Off Factor | : | 1.24 in |
Dimensions | : | 2.67 in L x 1.067 in W x 1.91 in H |
Finish | : | Dura-Kote |
Fitting Type | : | 90 deg Elbow |
For Use With | : | 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210 and EC118 Series Hoses |
Hex Size | : | 0.87 in |
Hose Dash Size | : | 06 |
Material | : | Steel |
Material Construction | : | Carbon Steel |
Series | : | 1A Series |
Thread Size | : | G 3/8-19 |
