Aeroquip® 1A32DLB20

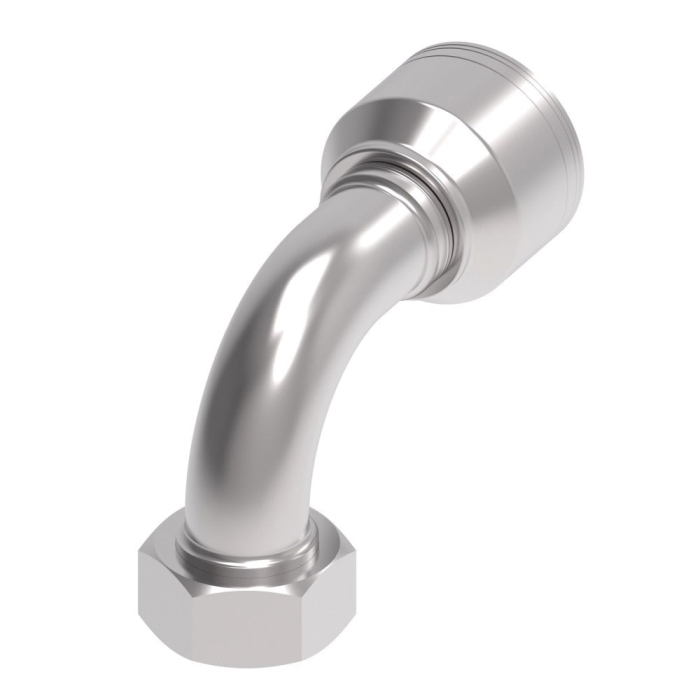

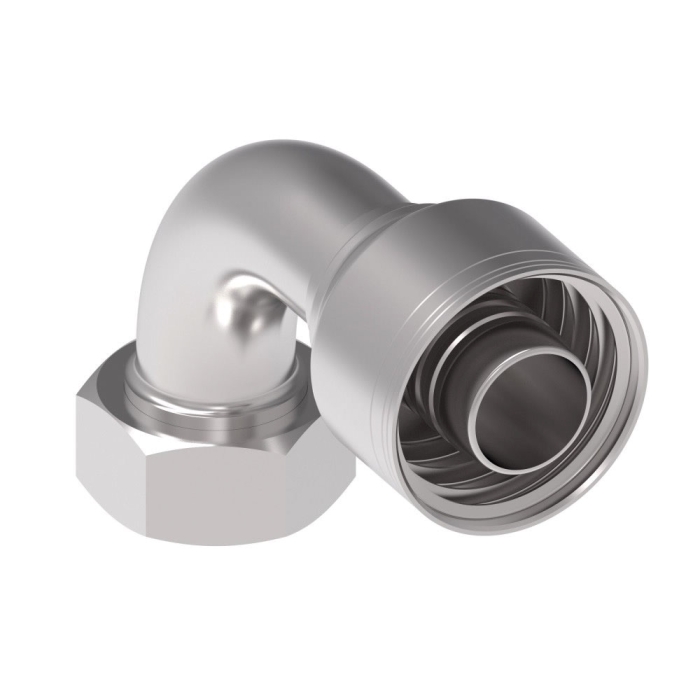

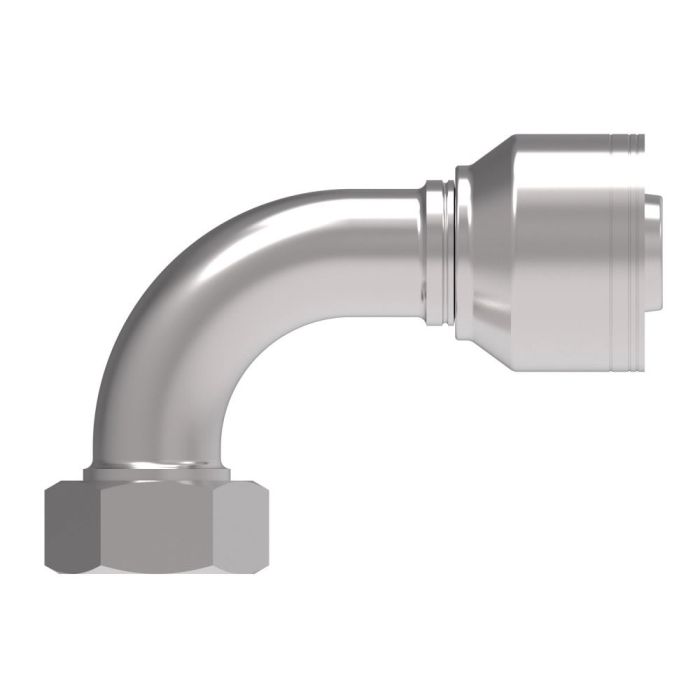

Aeroquip® 1A32DLB20 Light-Duty Crimp Hose 90 deg Elbow, 1-1/4 in Hose x 35 mm Female DKO Swivel, Steel
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: 1A32DLB20
- MPN: 1A32DLB20
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Aeroquip® Light-Duty Crimp Hose 90 deg Elbow, Series: 1A, Fitting Type: 90 deg Elbow, Connection Size 1: 1-1/4 in, Connection Type 1: Hose, Connection Size 2: 35 mm, Connection Type 2: Female DKO Swivel, Connection Type: Hose|Female DKO Swivel, Hose Dash Size: 20, Cut-Off Factor: 3.39 in, Steel, Material Construction: Carbon Steel, Dura-Kote, M45 x 2 Thread, 1.97 in Hex, For Use With: 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210 and EC118 Series Hoses, 6.104 in L x 2.406 in W x 4.313 in H
| Connection Size 1 | : | 1-1/4 in |
| Connection Size 2 | : | 35 mm |
| Connection Type | : | Hose|Female DKO Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Female DKO Swivel |
| Cut-Off Factor | : | 3.39 in |
| Dimensions | : | 6.104 in L x 2.406 in W x 4.313 in H |
| Finish | : | Dura-Kote |
| Fitting Type | : | 90 deg Elbow |
| For Use With | : | 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210 and EC118 Series Hoses |
| Hex Size | : | 1.97 in |
| Hose Dash Size | : | 20 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Series | : | 1A Series |
| Thread Size | : | M45 x 2 |
