Aeroquip® 1A25DK16

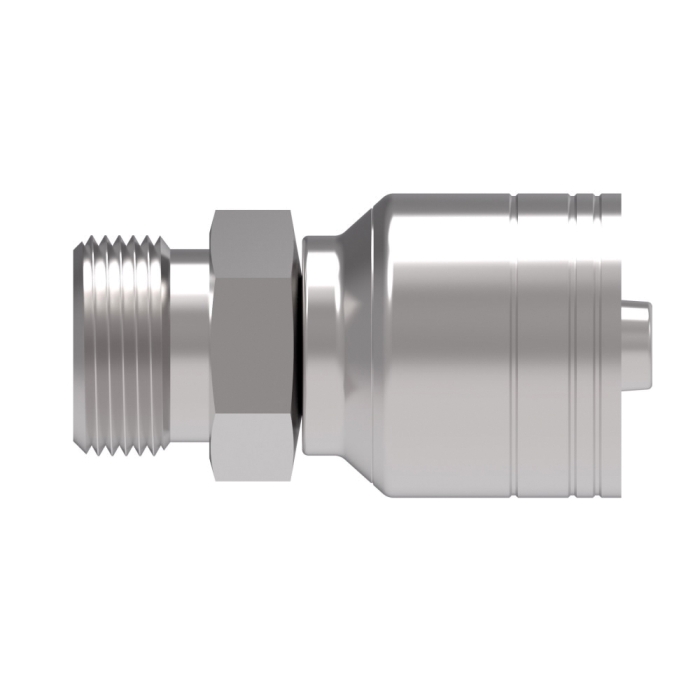

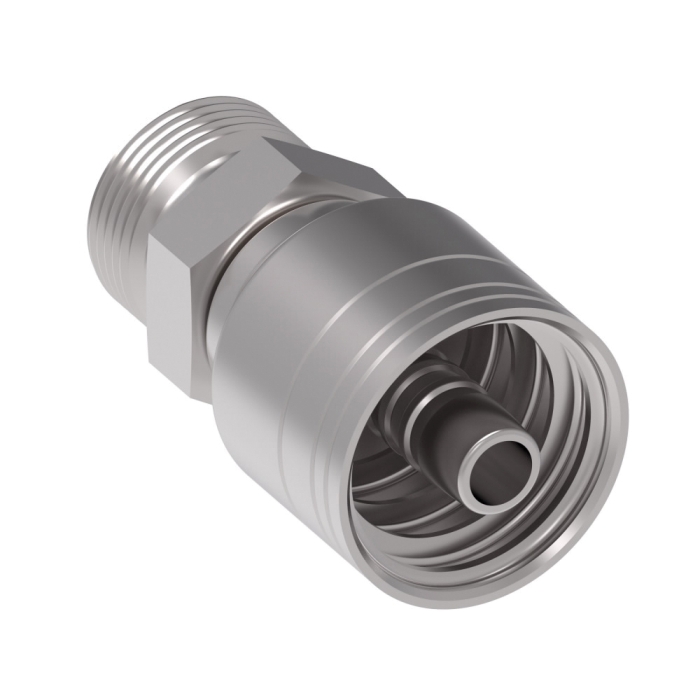

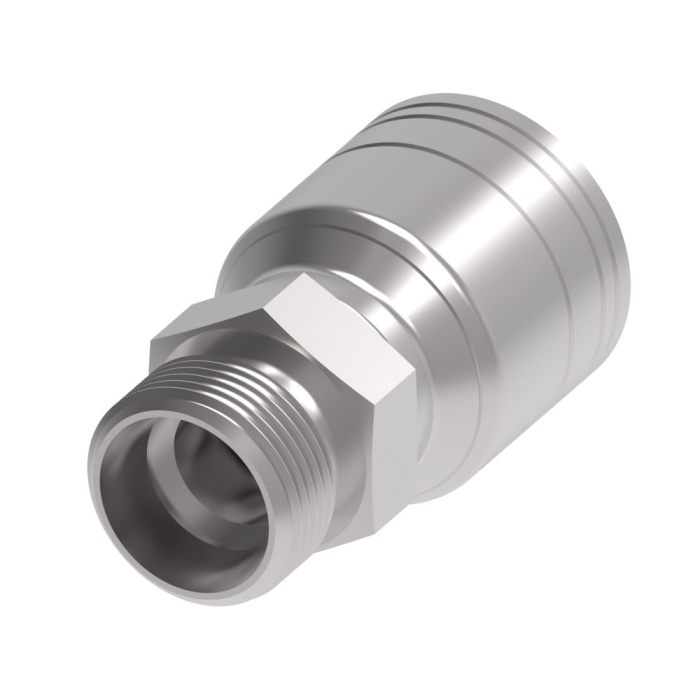

Aeroquip® 1A25DK16 Light-Duty Crimp Straight Hose Fitting, 1 in Hose x 28 mm Male DIN 24 deg Seat, Steel
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: 1A25DK16
- MPN: 1A25DK16
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Aeroquip® Light-Duty Crimp Straight Hose Fitting, Series: 1A, Fitting Type: Hose Fitting, Connection Size 1: 1 in, Connection Type 1: Hose, Connection Size 2: 28 mm, Connection Type 2: Male DIN 24 deg Seat, Connection Type: Hose|Male Metric, Hose Dash Size: 16, Cut-Off Factor: 1.24 in, Steel, Material Construction: Carbon Steel, Dura-Kote, M36 x 2 Thread, 1.61 in Hex, For Use With: 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210 and EC118 Series Hoses, 2.6 in L x 1.941 in W x 1.941 in H
| Connection Size 1 | : | 1 in |
| Connection Size 2 | : | 28 mm |
| Connection Type | : | Hose|Male Metric |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Male DIN 24 deg Seat |
| Cut-Off Factor | : | 1.24 in |
| Dimensions | : | 2.6 in L x 1.941 in W x 1.941 in H |
| Finish | : | Dura-Kote |
| Fitting Type | : | Hose Fitting |
| For Use With | : | 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210 and EC118 Series Hoses |
| Hex Size | : | 1.61 in |
| Hose Dash Size | : | 16 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Series | : | 1A Series |
| Thread Size | : | M36 x 2 |
