Aeroquip® 1AA24FRA20

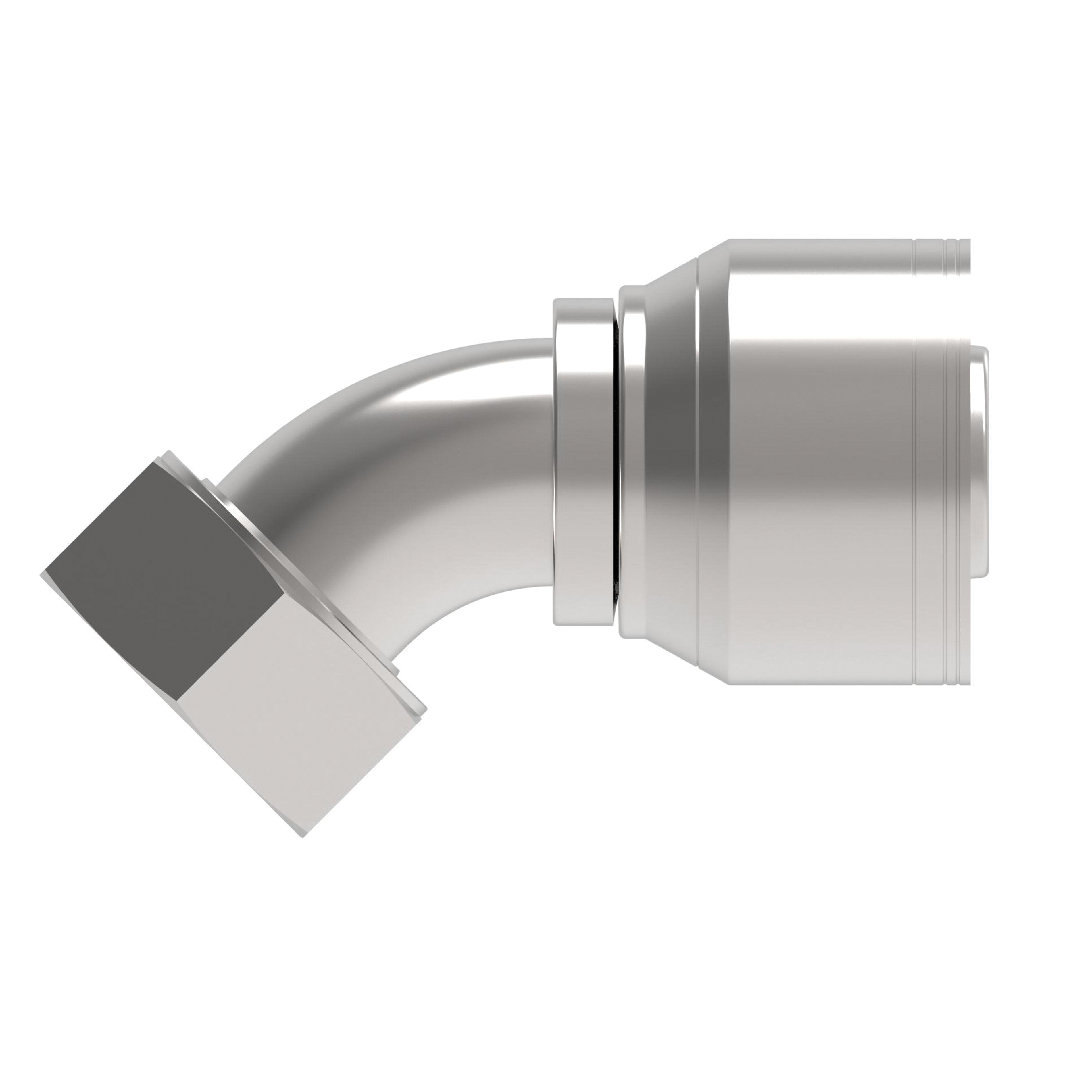

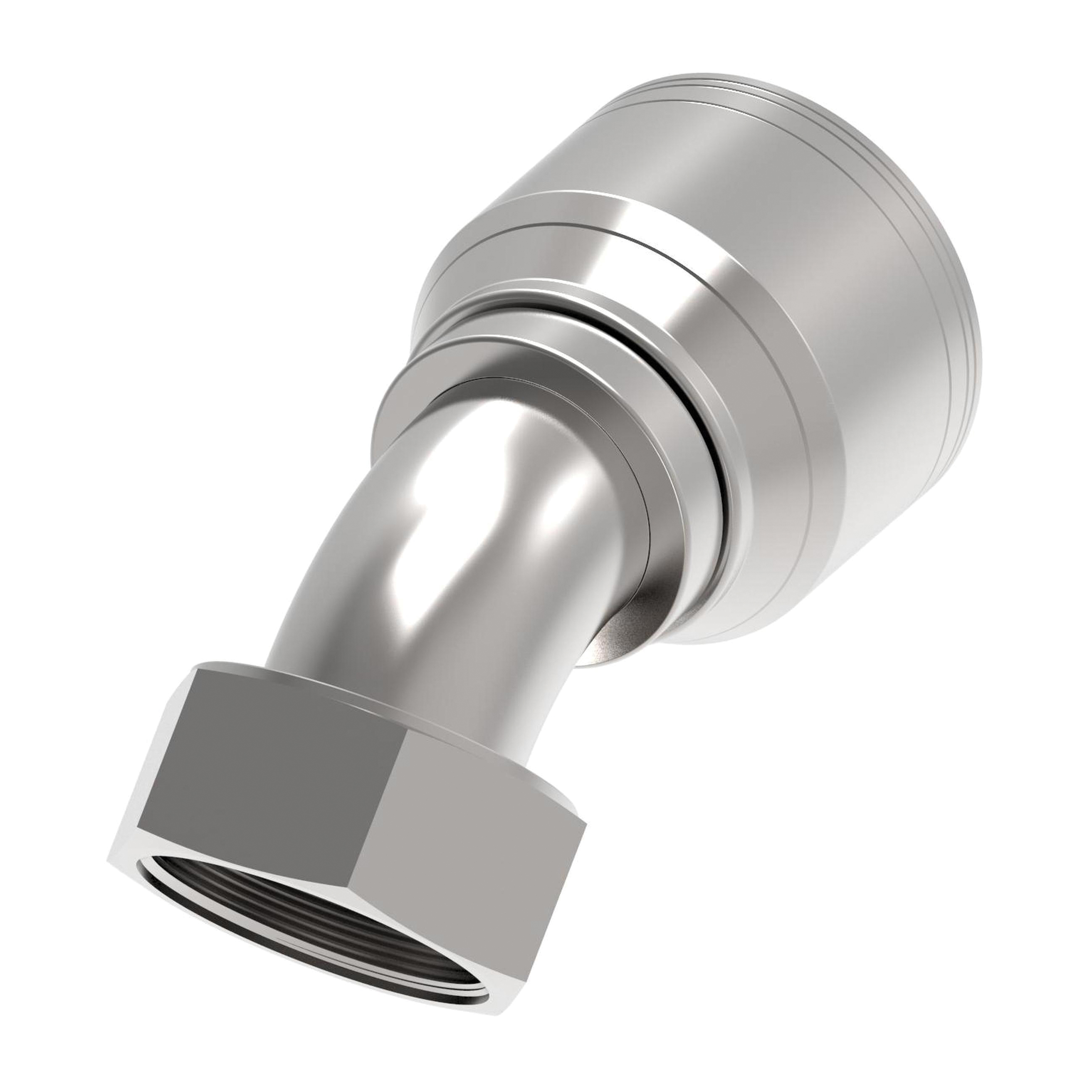

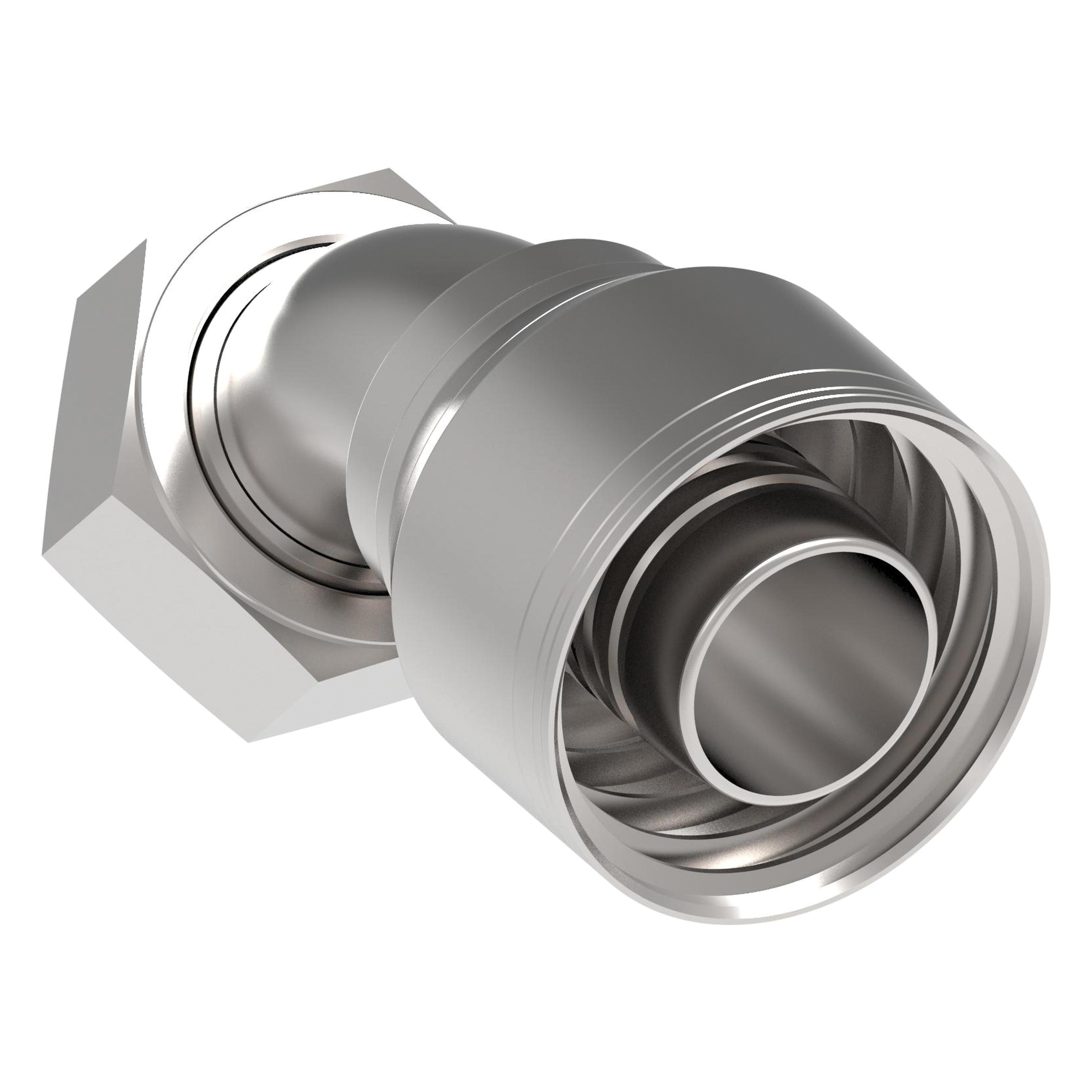

Aeroquip® 1A Series 1AA24FRA20 45 deg Crimp Hose Elbow, 1-1/4 in Hose x 1.05 in Female ORFS Swivel, Steel
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: 1AA24FRA20
- MPN: 1AA24FRA20
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Aeroquip® 45 deg Crimp Hose Elbow, 1A Series, 45 deg Elbow Fitting, Connection Size 1: 1-1/4 in, Connection Type 1: Hose, Connection Size 2: 1.05 in, Connection Type 2: Female ORFS Swivel, Hose|Female ORFS Swivel Connection, 20 Hose Dash, 3.76 in Cut-Off Factor, Steel, Material Construction: Carbon Steel, Finish: Zinc-Plated, 2-12 Thread, 7.19 in L x 2.41 in W x 3.97 in H, 4000 psi Maximum Operating Pressure, -40 to 302 deg F Operating Temperature
| Connection Size 1 | : | 1-1/4 in |
| Connection Size 2 | : | 1.05 in |
| Connection Type | : | Hose|Female ORFS Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Female ORFS Swivel |
| Cut-Off Factor | : | 3.76 in |
| Dimensions | : | 7.19 in L x 2.41 in W x 3.97 in H |
| Finish | : | Zinc-Plated |
| Fitting Type | : | 45 deg Elbow |
| Hose Dash Size | : | 20 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Maximum Operating Pressure | : | 4000 psi |
| Operating Temperature | : | -40 to 302 deg F |
| Series | : | 1A Series |
| Thread Size | : | 2-12 |
- Bite the wire technology for best in class connection and sealing
- Class zero leakage SAE J1176 on approved hose styles
- Danfoss MatchMate® program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
