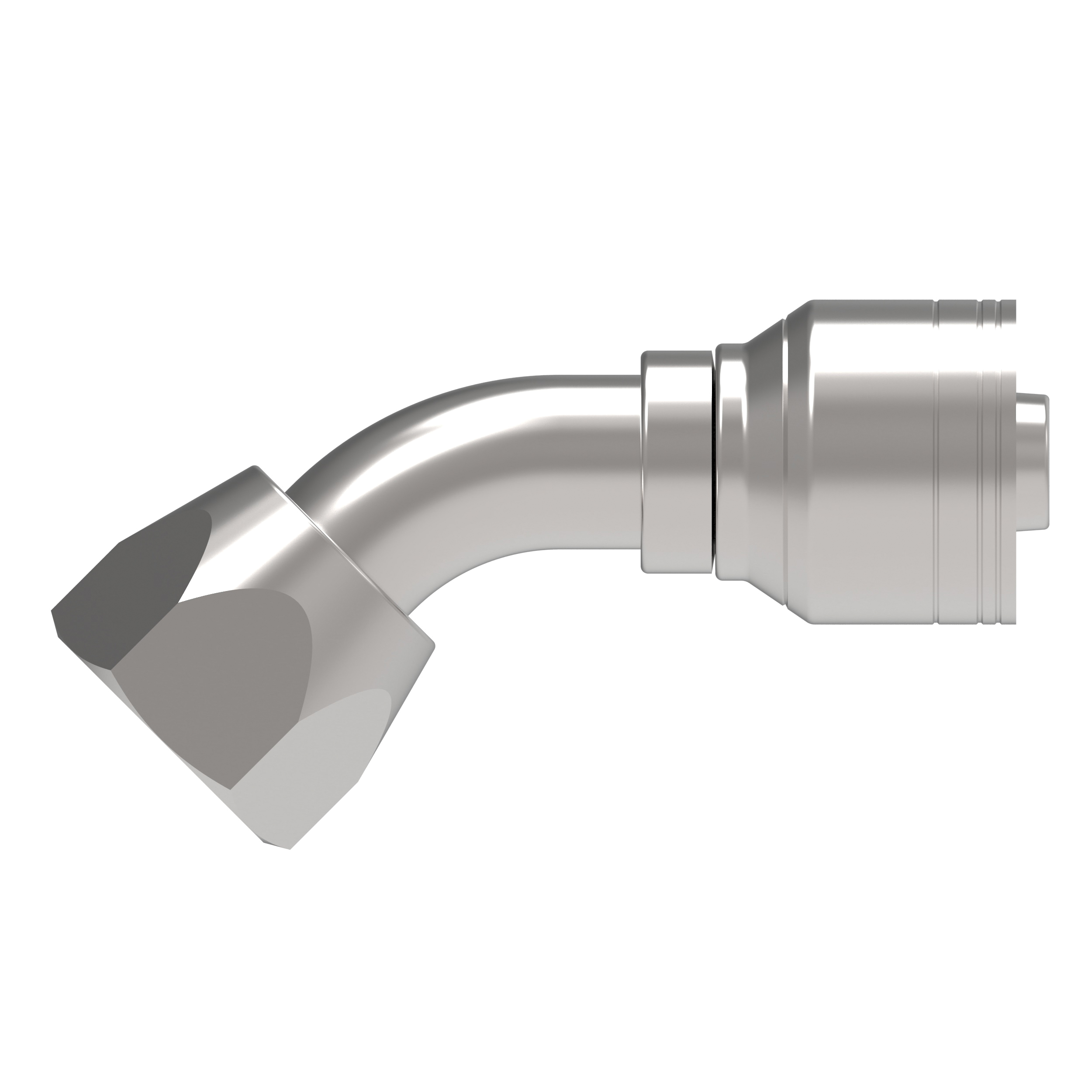

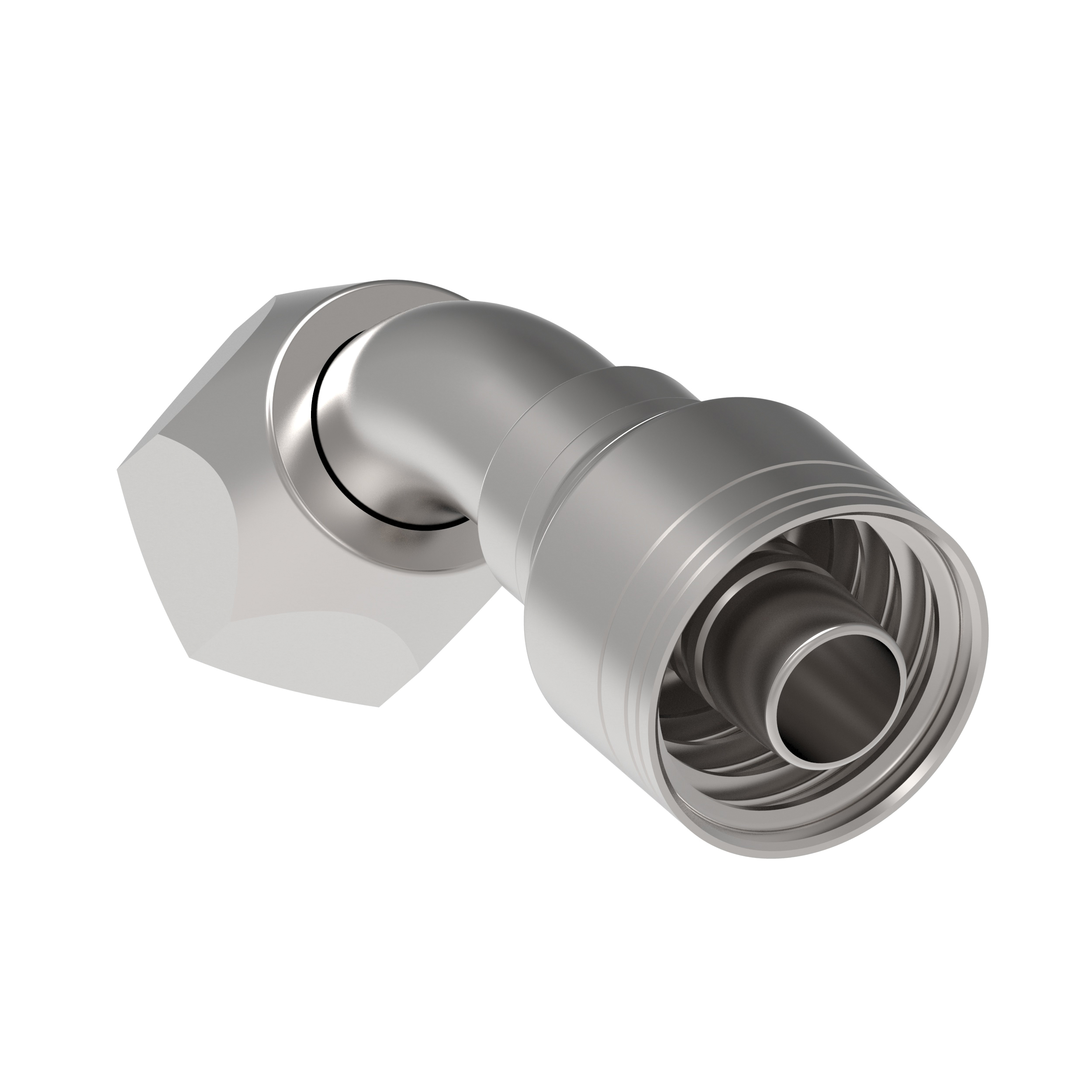

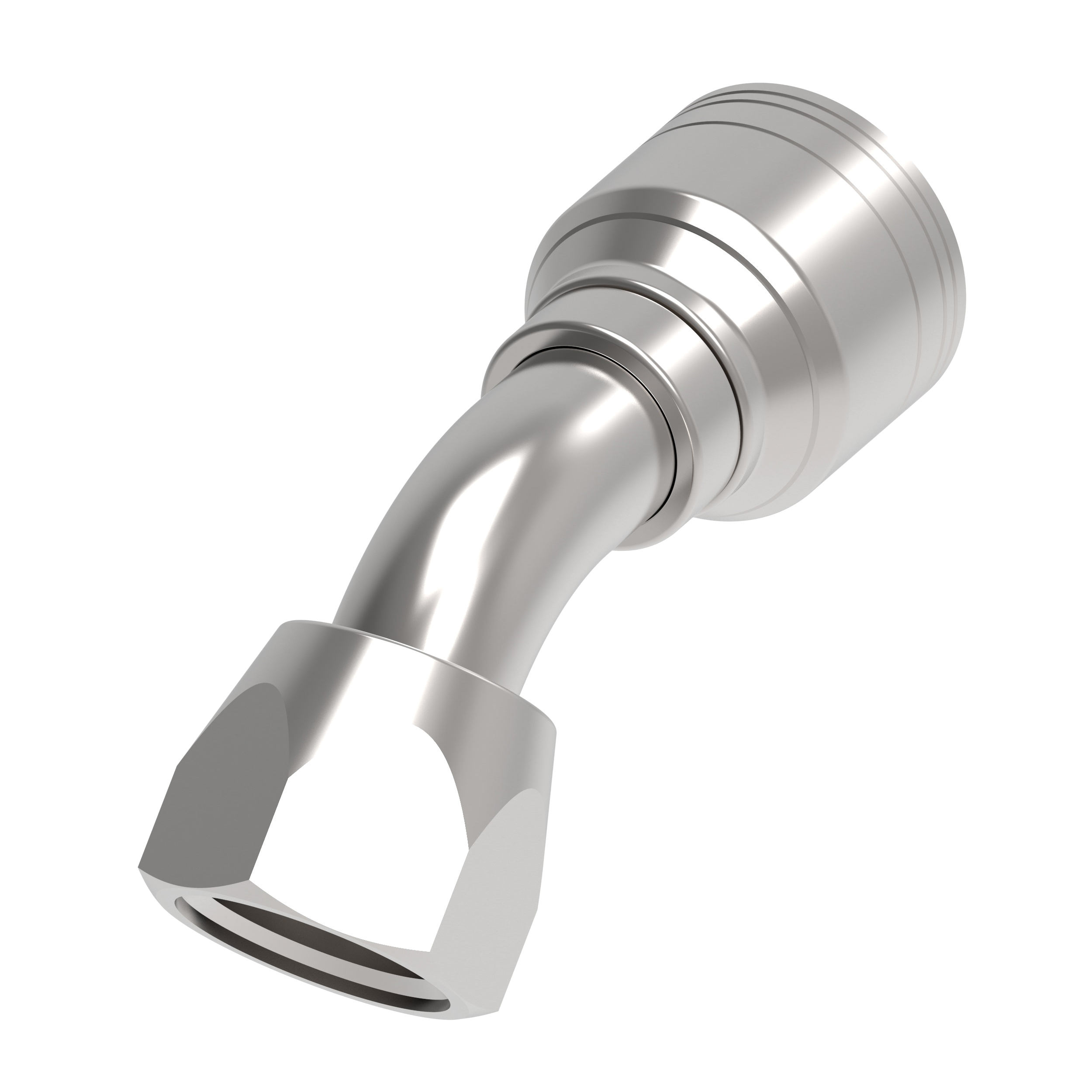

Aeroquip® 1AA12FJA8
Aeroquip® 1A Series 1AA12FJA8 45 deg Crimp Hose Elbow, 1/2 in Hose x 0.38 in Female 37 deg JIC Swivel, Steel
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: 1AA12FJA8
- MPN: 1AA12FJA8
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Aeroquip® 45 deg Crimp Hose Elbow, 1A Series, 45 deg Elbow Fitting, Connection Size 1: 1/2 in, Connection Type 1: Hose, Connection Size 2: 0.38 in, Connection Type 2: Female 37 deg JIC Swivel, Hose|Female JIC Swivel Connection, 08 Hose Dash, 2.29 in Cut-Off Factor, Steel, Material Construction: Carbon Steel, Finish: Oil-Coated, 1-1/16-12 Thread, 4.66 in L x 1.22 in W x 2.59 in H, 4800 psi Maximum Operating Pressure, -40 to 302 deg F Operating Temperature
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 0.38 in |
| Connection Type | : | Hose|Female JIC Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Female 37 deg JIC Swivel |
| Cut-Off Factor | : | 2.29 in |
| Dimensions | : | 4.66 in L x 1.22 in W x 2.59 in H |
| Finish | : | Oil-Coated |
| Fitting Type | : | 45 deg Elbow |
| Hose Dash Size | : | 08 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Maximum Operating Pressure | : | 4800 psi |
| Operating Temperature | : | -40 to 302 deg F |
| Series | : | 1A Series |
| Thread Size | : | 1-1/16-12 |
- Bite the wire technology for best in class connection and sealing
- Class zero leakage SAE J1176 on approved hose styles
- Danfoss MatchMate® program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
