Aeroquip® 1A8DL5

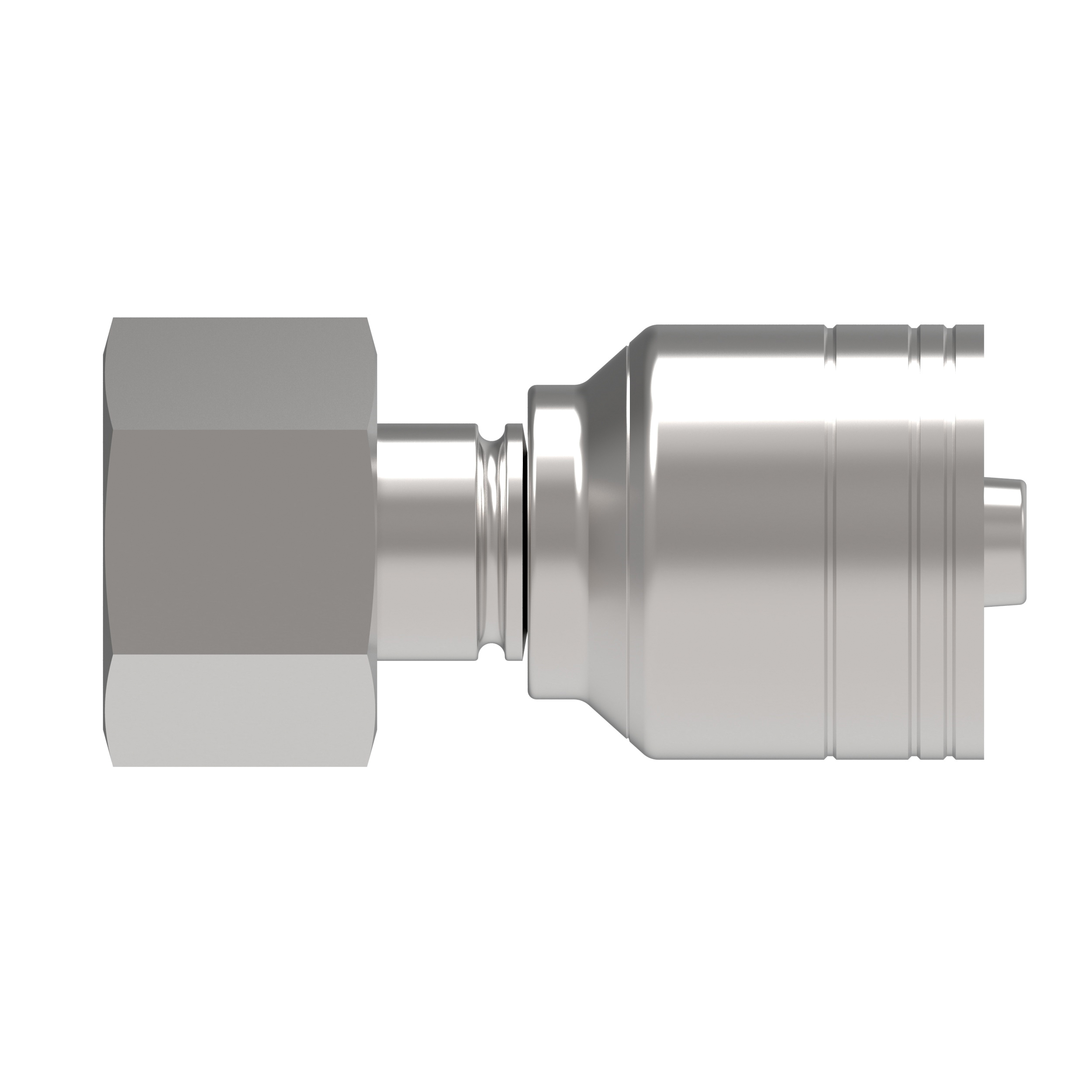

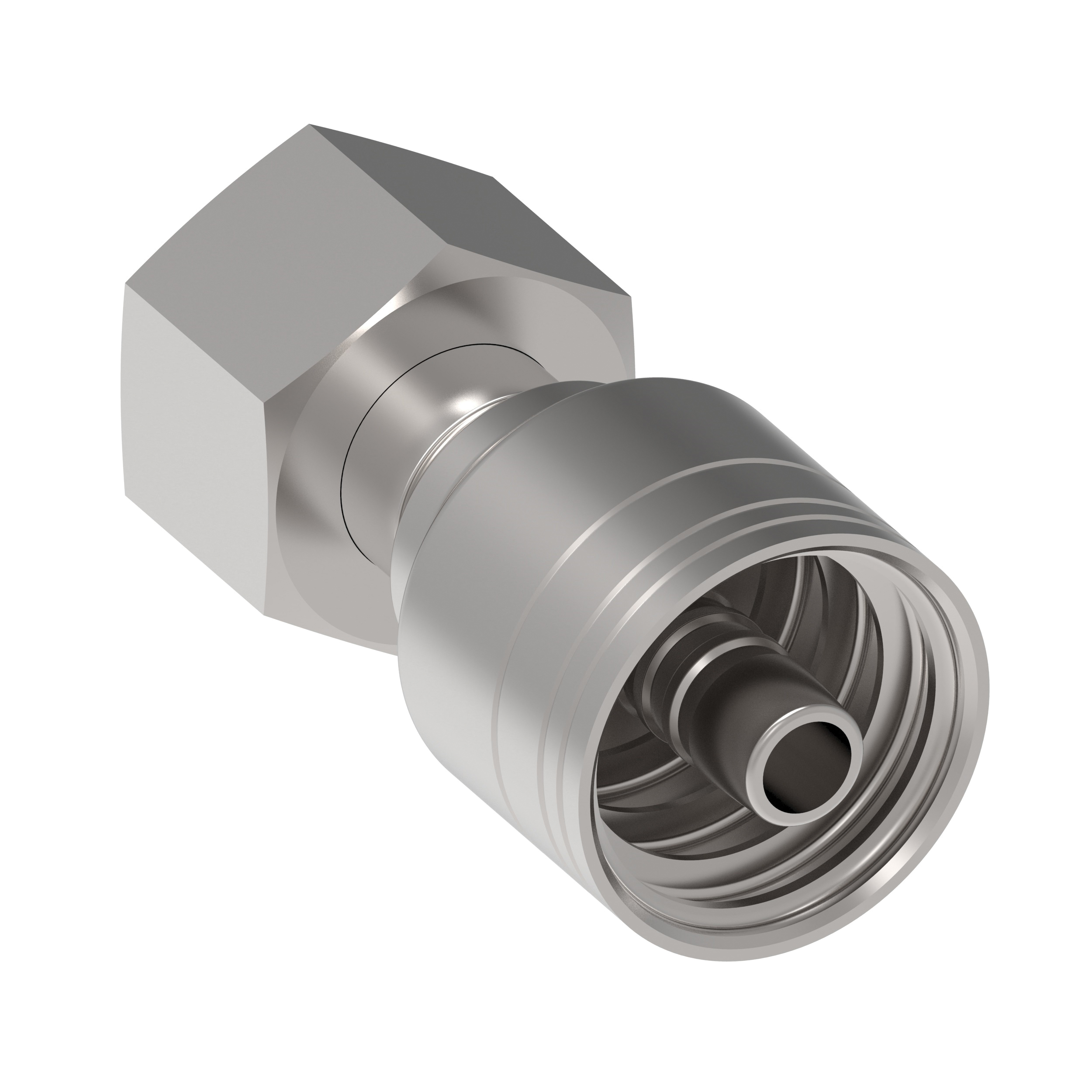

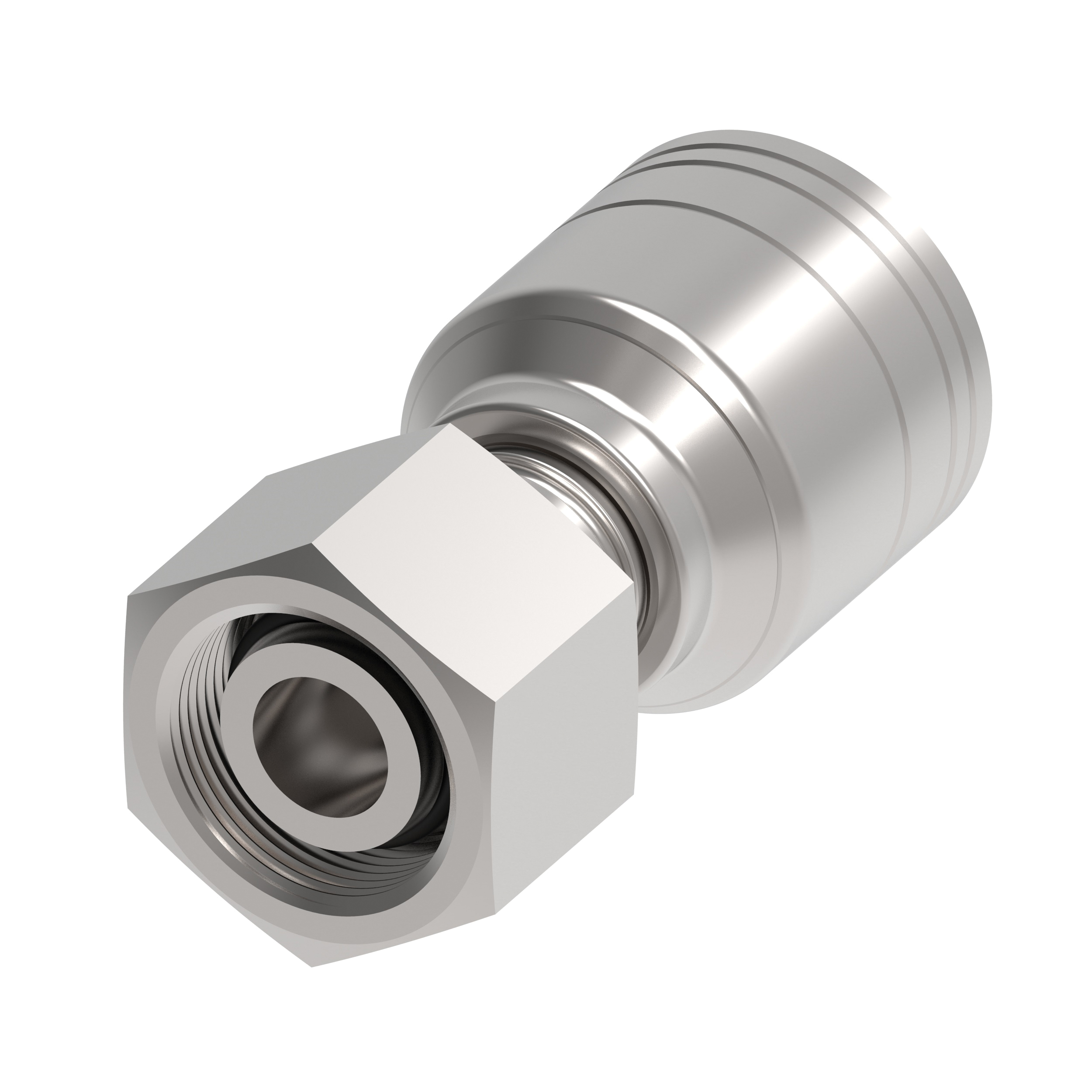

Aeroquip® 1A Series 1A8DL5 Straight Crimp Hose Fitting, 3/8 in Hose x 0.21 in 24 deg Female DKOL Swivel
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: 1A8DL5
- MPN: 1A8DL5
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Aeroquip® Straight Crimp Hose Fitting, 1A Series, Hose Fitting, Connection Size 1: 3/8 in, Connection Type 1: Hose, Connection Size 2: 0.21 in, Connection Type 2: 24 deg Female DKOL Swivel, Hose|Female DKOL Swivel Connection, 05 Hose Dash, 1.06 in Cut-Off Factor, Steel, Material Construction: Carbon Steel, Finish: Dura-Kote Plated, M16x1.5 Thread, 0.748 in Hex, 1.996 in L x 0.968 in W x 0.968 in H, 5100 psi Maximum Operating Pressure, -40 to 212 deg F Operating Temperature, Additional Information: Nitrile Seal Material
| Additional Information | : | Nitrile Seal Material |
| Connection Size 1 | : | 3/8 in |
| Connection Size 2 | : | 0.21 in |
| Connection Type | : | Hose|Female DKOL Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | 24 deg Female DKOL Swivel |
| Cut-Off Factor | : | 1.06 in |
| Dimensions | : | 1.996 in L x 0.968 in W x 0.968 in H |
| Finish | : | Dura-Kote Plated |
| Fitting Type | : | Hose Fitting |
| Hex Size | : | 0.748 in |
| Hose Dash Size | : | 05 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Maximum Operating Pressure | : | 5100 psi |
| Operating Temperature | : | -40 to 212 deg F |
| Series | : | 1A Series |
| Thread Size | : | M16x1.5 |
- Dura-Kote™ plating technology for up to 1000 hours of corrosion resistance
- Bite the wire technology for best in class connection and sealing
- Class zero leakage SAE J1176 on approved hose styles
- Danfoss MatchMate® program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
