Aeroquip® 1A6FJA6

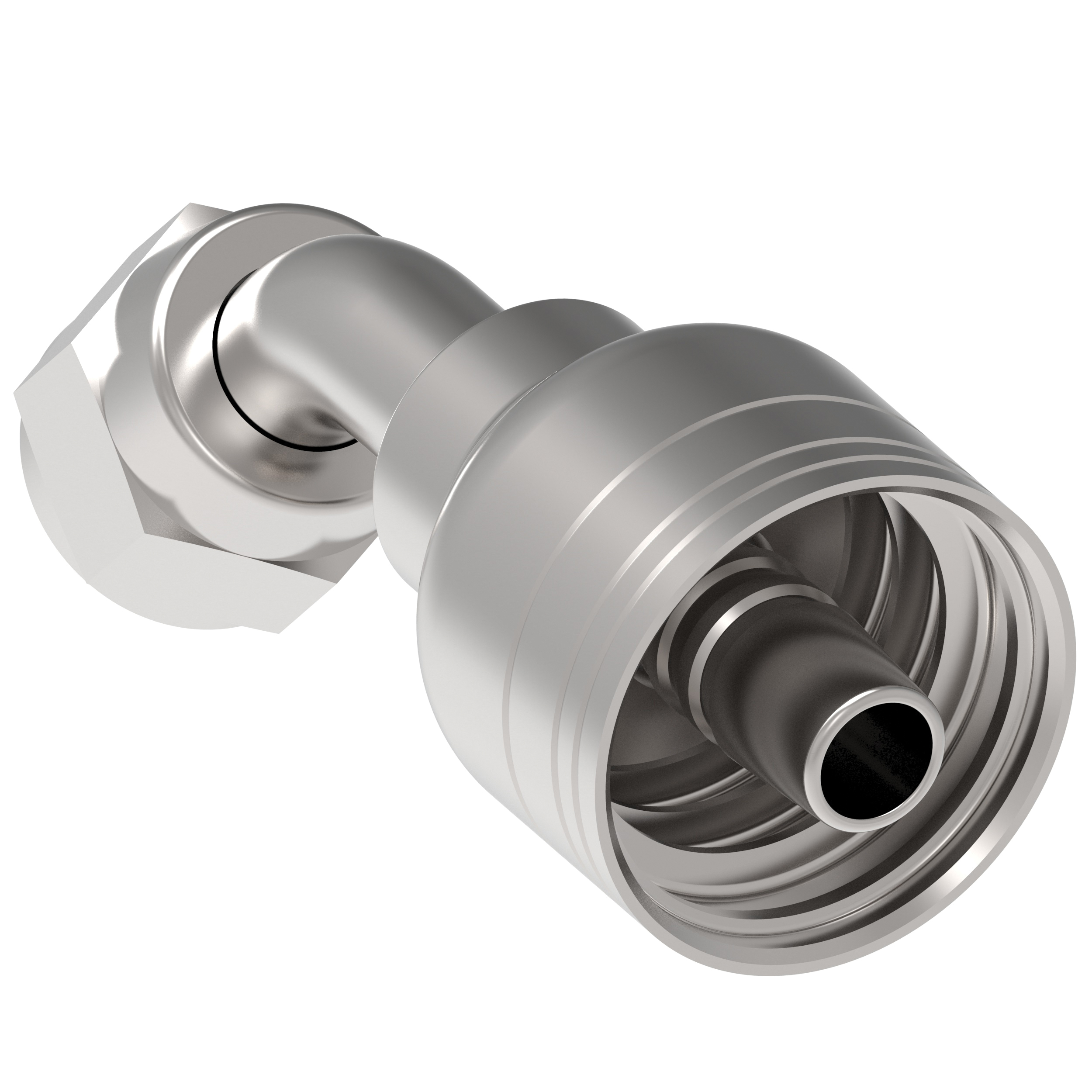

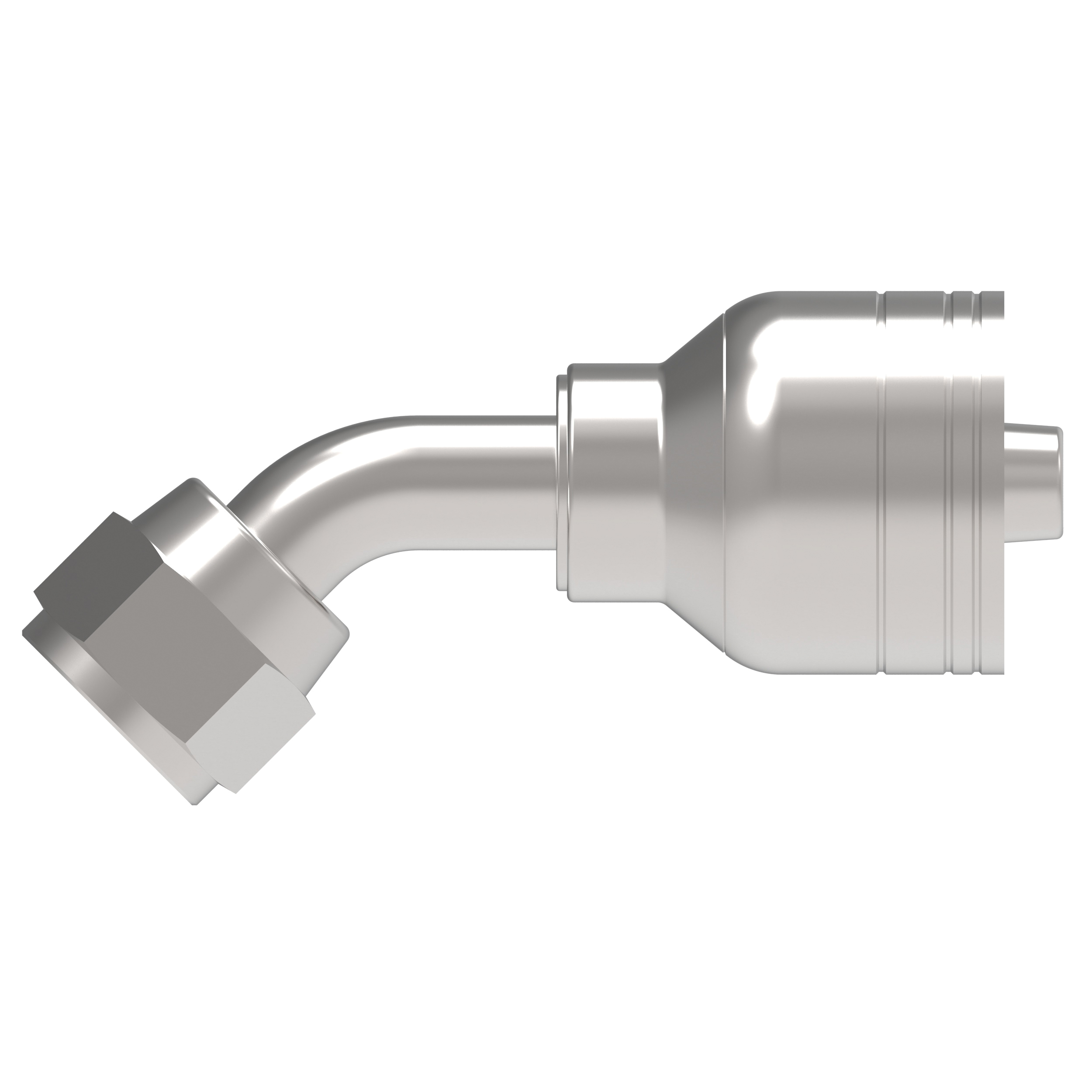

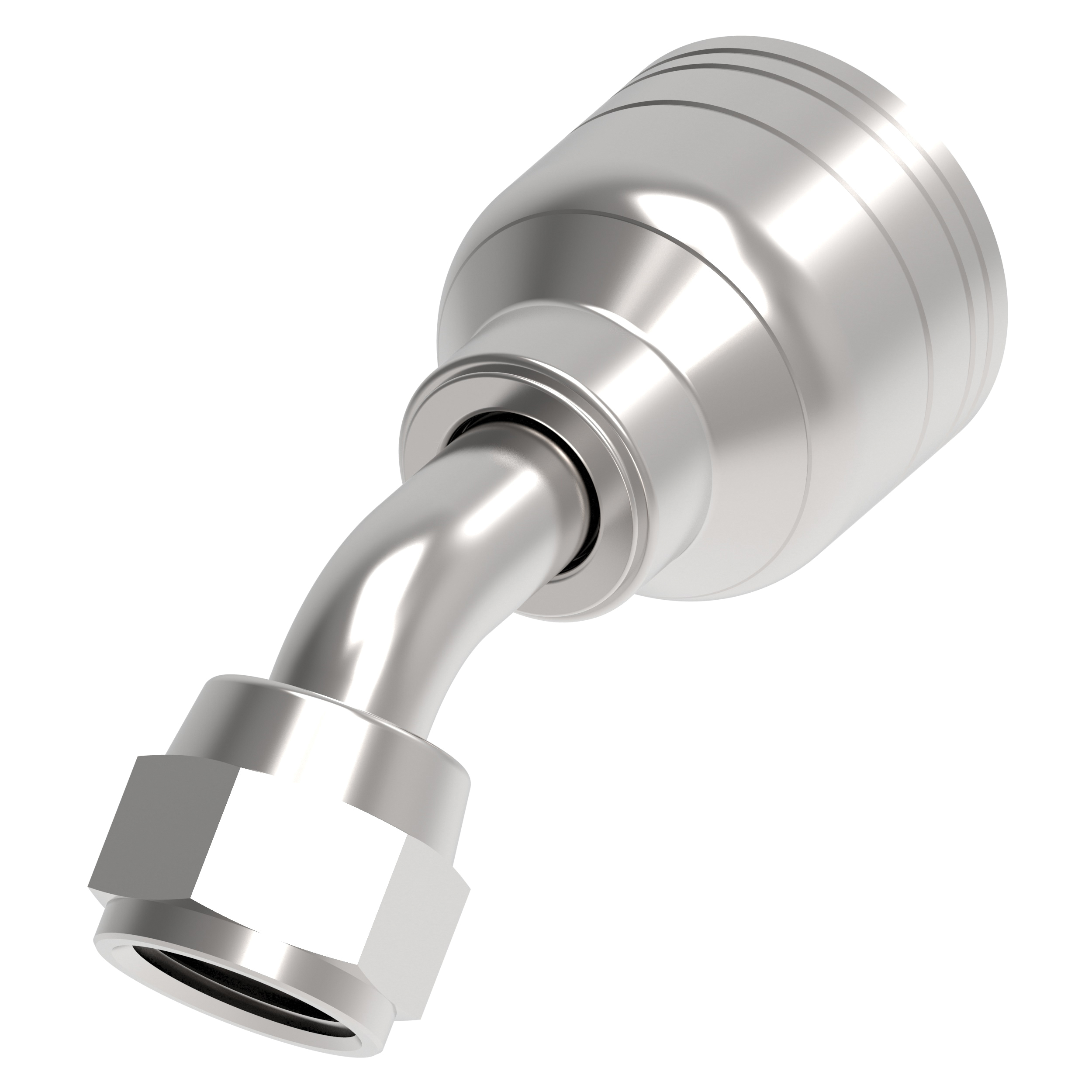

Aeroquip® 1A Series 1A6FJA6 45 deg Crimp Hose Elbow, 3/8 in Hose x 0.24 in Female 37 deg JIC Swivel, Steel
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: 1A6FJA6
- MPN: 1A6FJA6
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Aeroquip® 45 deg Crimp Hose Elbow, 1A Series, 45 deg Elbow Fitting, Connection Size 1: 3/8 in, Connection Type 1: Hose, Connection Size 2: 0.24 in, Connection Type 2: Female 37 deg JIC Swivel, Hose|Female JIC Swivel Connection, 06 Hose Dash, 1.31 in Cut-Off Factor, Steel, Material Construction: Carbon Steel, Finish: Zinc-Plated, 9/16-18 Thread, 0.748 in Hex, 3.04 in L x 1.067 in W x 1.66 in H, 5800 psi Maximum Operating Pressure, -40 to 212 deg F Operating Temperature
| Connection Size 1 | : | 3/8 in |
| Connection Size 2 | : | 0.24 in |
| Connection Type | : | Hose|Female JIC Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Female 37 deg JIC Swivel |
| Cut-Off Factor | : | 1.31 in |
| Dimensions | : | 3.04 in L x 1.067 in W x 1.66 in H |
| Finish | : | Zinc-Plated |
| Fitting Type | : | 45 deg Elbow |
| Hex Size | : | 0.748 in |
| Hose Dash Size | : | 06 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Maximum Operating Pressure | : | 5800 psi |
| Operating Temperature | : | -40 to 212 deg F |
| Series | : | 1A Series |
| Thread Size | : | 9/16-18 |
- Bite the wire technology for best in class connection and sealing
- Class zero leakage SAE J1176 on approved hose styles
- Danfoss MatchMate® program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
