Aeroquip® 1A32DLA20

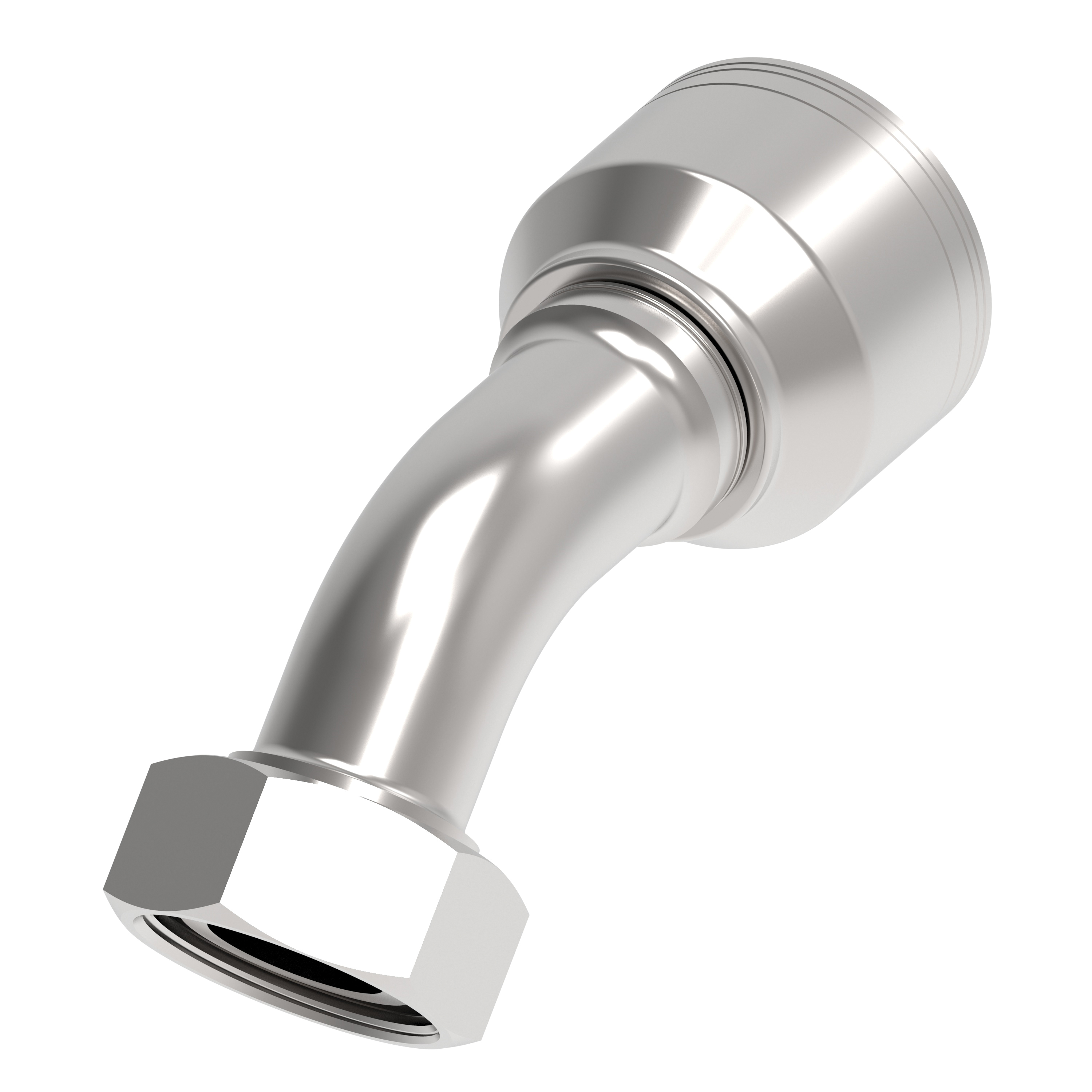

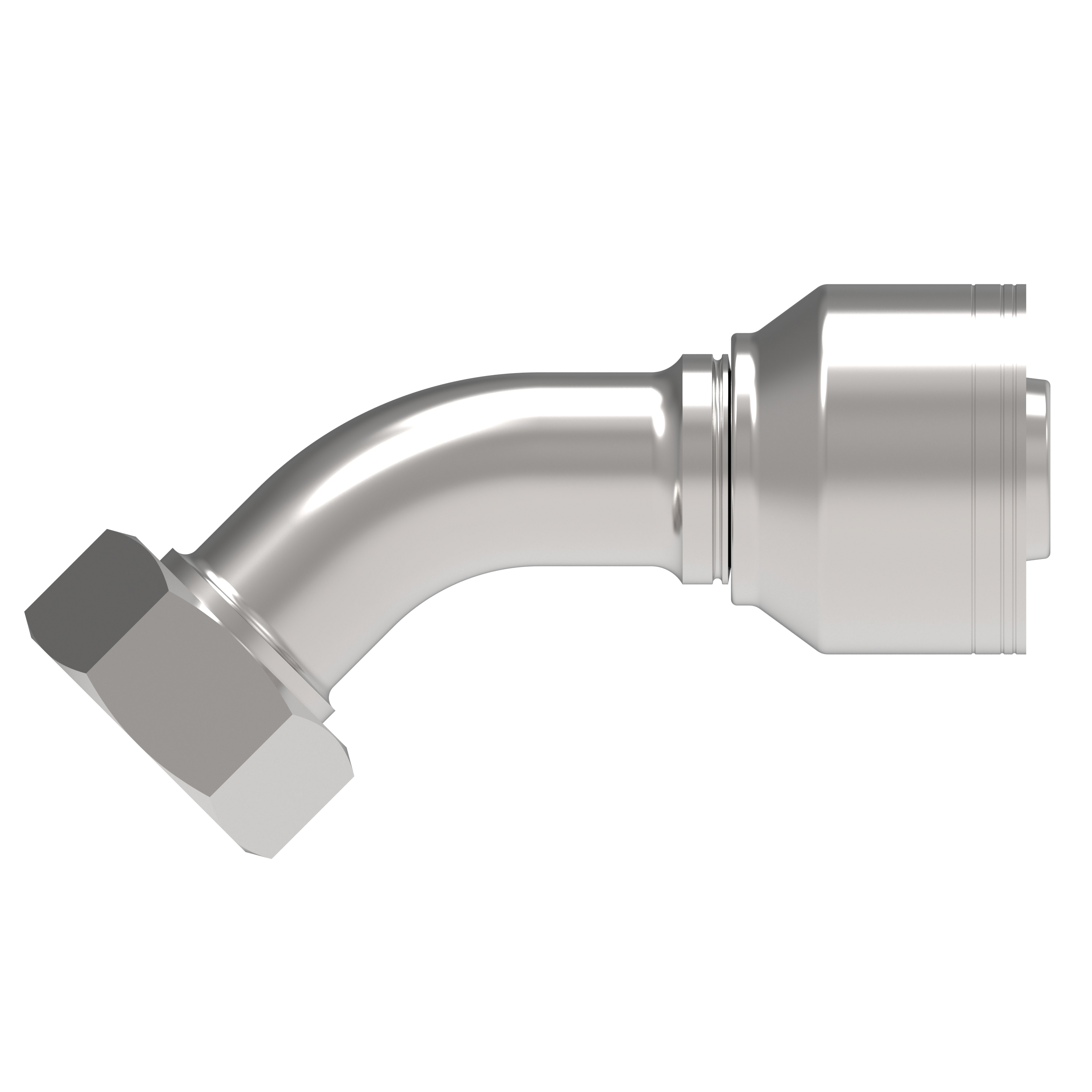

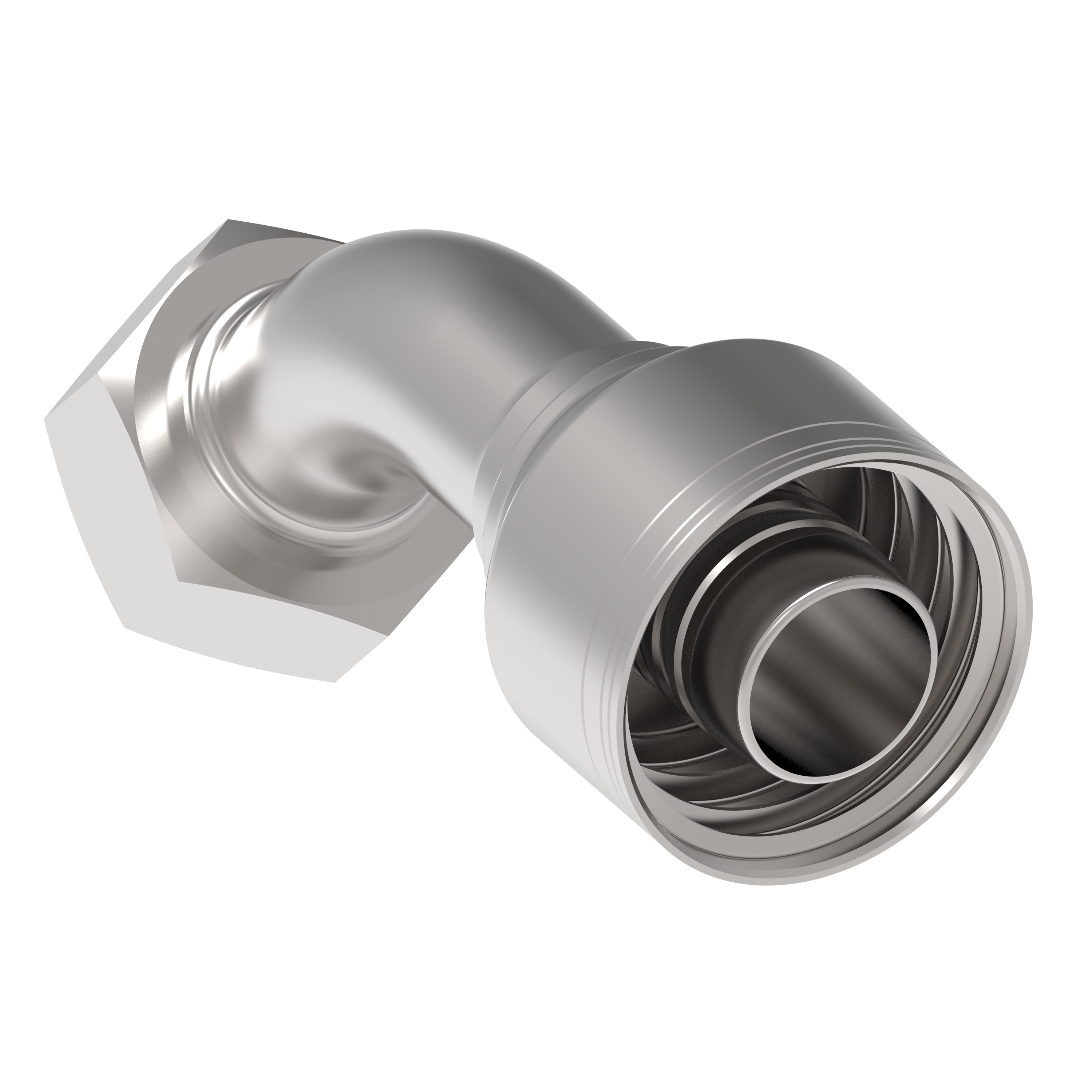

Aeroquip® 1A Series 1A32DLA20 45 deg Crimp Hose Elbow, 1-1/4 in Hose x 1.05 in 24 deg Female DKOL Swivel
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: 1A32DLA20
- MPN: 1A32DLA20
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Aeroquip® 45 deg Crimp Hose Elbow, 1A Series, 45 deg Elbow Fitting, Connection Size 1: 1-1/4 in, Connection Type 1: Hose, Connection Size 2: 1.05 in, Connection Type 2: 24 deg Female DKOL Swivel, Hose|Female DKOL Swivel Connection, 20 Hose Dash, 4.09 in Cut-Off Factor, Steel, Material Construction: Carbon Steel, Finish: Dura-Kote Plated, M45x2 Thread, 1.968 in Hex, 5.83 in L x 2.406 in W x 1.69 in H, -50 to 260 deg F Operating Temperature, Additional Information: Nitrile Seal Material
| Additional Information | : | Nitrile Seal Material |
| Connection Size 1 | : | 1-1/4 in |
| Connection Size 2 | : | 1.05 in |
| Connection Type | : | Hose|Female DKOL Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | 24 deg Female DKOL Swivel |
| Cut-Off Factor | : | 4.09 in |
| Dimensions | : | 5.83 in L x 2.406 in W x 1.69 in H |
| Finish | : | Dura-Kote Plated |
| Fitting Type | : | 45 deg Elbow |
| Hex Size | : | 1.968 in |
| Hose Dash Size | : | 20 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Operating Temperature | : | -50 to 260 deg F |
| Series | : | 1A Series |
| Thread Size | : | M45x2 |
- Dura-Kote™ plating technology for up to 1000 hours of corrosion resistance
- Bite the wire technology for best in class connection and sealing
- Class zero leakage SAE J1176 on approved hose styles
- Danfoss MatchMate® program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
