Aeroquip® 1A20FLB12

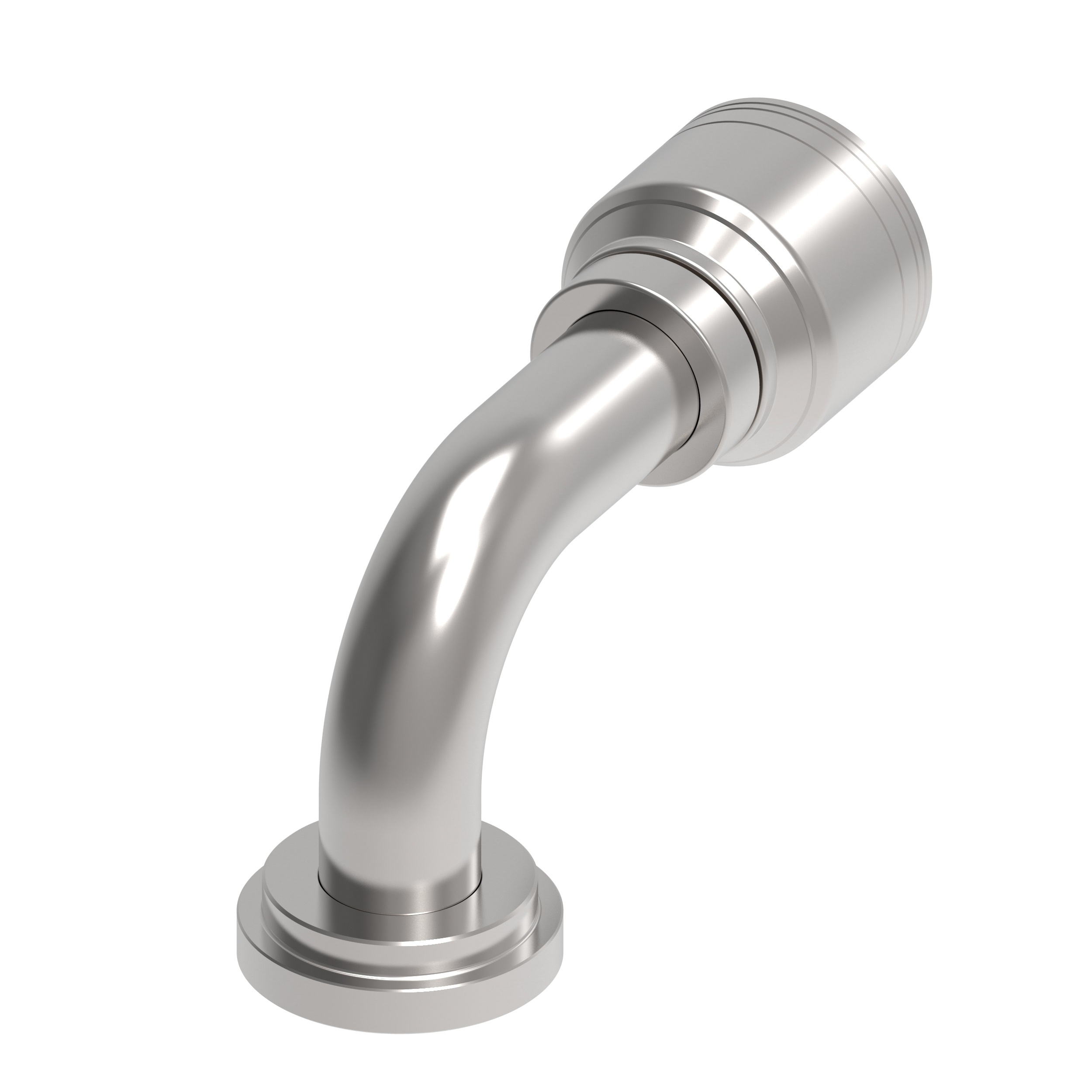

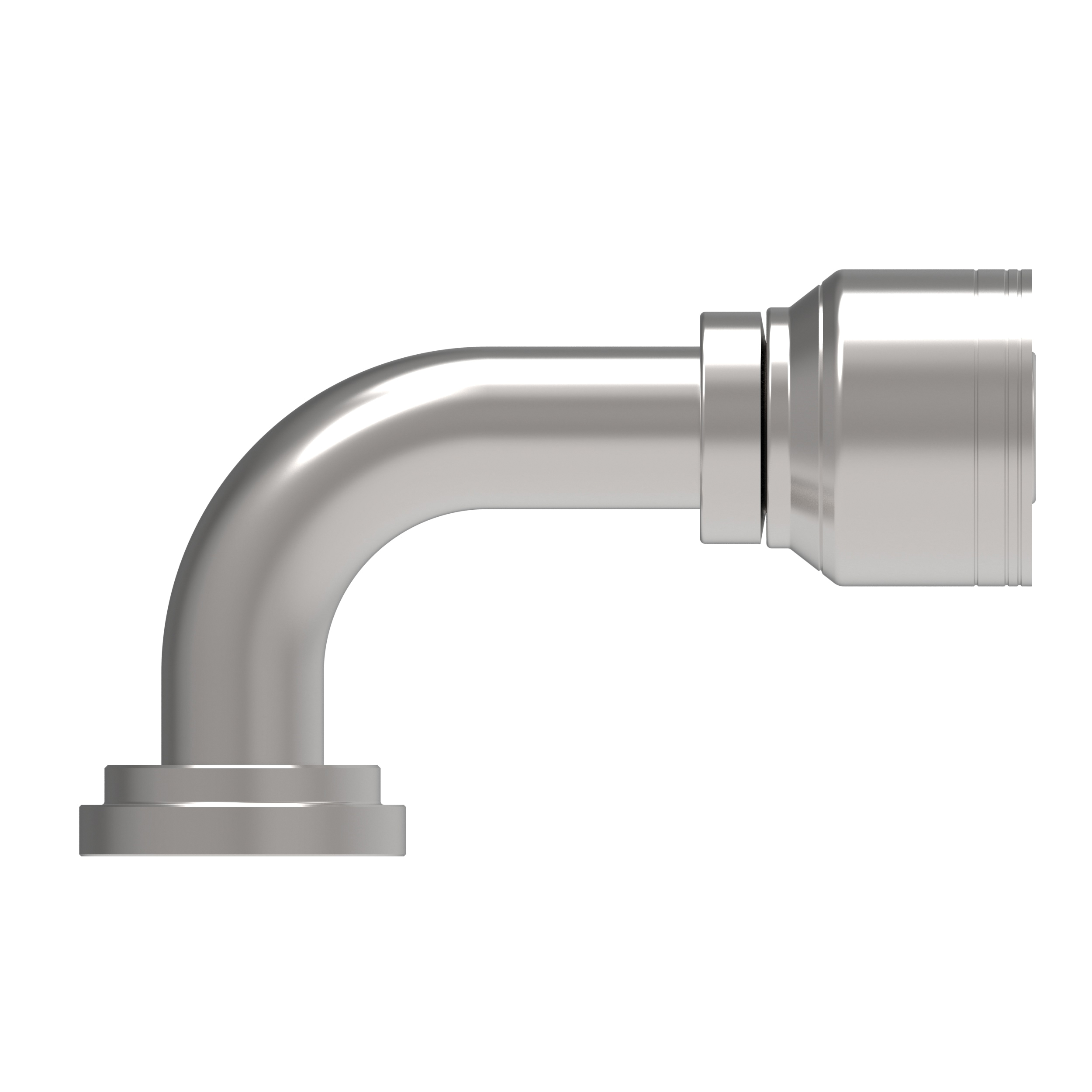

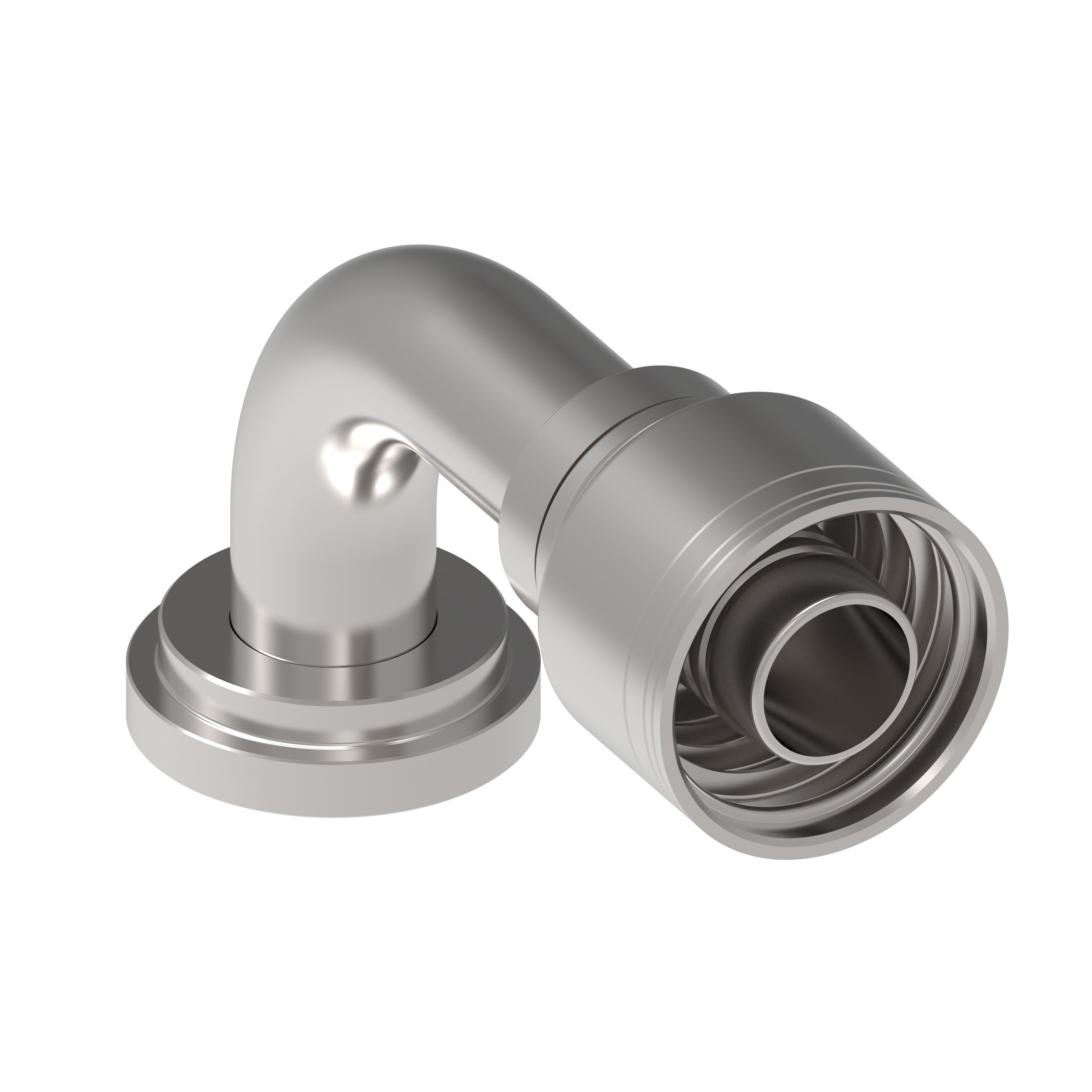

Aeroquip® 1A Series 1A20FLB12 90 deg Crimp Hose Elbow, 3/4 in Hose x 0.58 in Female Code 61 Split Flanged
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: 1A20FLB12
- MPN: 1A20FLB12
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Aeroquip® 90 deg Crimp Hose Elbow, 1A Series, 90 deg Elbow Fitting, Connection Size 1: 3/4 in, Connection Type 1: Hose, Connection Size 2: 0.58 in, Connection Type 2: Female Code 61 Split Flanged, Hose|Flanged Connection, 12 Hose Dash, 3.48 in Cut-Off Factor, Steel, Material Construction: Carbon Steel, Finish: Dura-Kote Plated, 5.66 in L x 2 in W x 3.4 in H, 4000 psi Maximum Operating Pressure, -40 to 212 deg F Operating Temperature
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 0.58 in |
| Connection Type | : | Hose|Flanged |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Female Code 61 Split Flanged |
| Cut-Off Factor | : | 3.48 in |
| Dimensions | : | 5.66 in L x 2 in W x 3.4 in H |
| Finish | : | Dura-Kote Plated |
| Fitting Type | : | 90 deg Elbow |
| Hose Dash Size | : | 12 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Maximum Operating Pressure | : | 4000 psi |
| Operating Temperature | : | -40 to 212 deg F |
| Series | : | 1A Series |
- Dura-Kote™ plating technology for up to 1000 hours of corrosion resistance
- Bite the wire technology for best in class connection and sealing
- Class zero leakage SAE J1176 on approved hose styles
- Danfoss MatchMate® program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
