Aeroquip® 1A16FR16

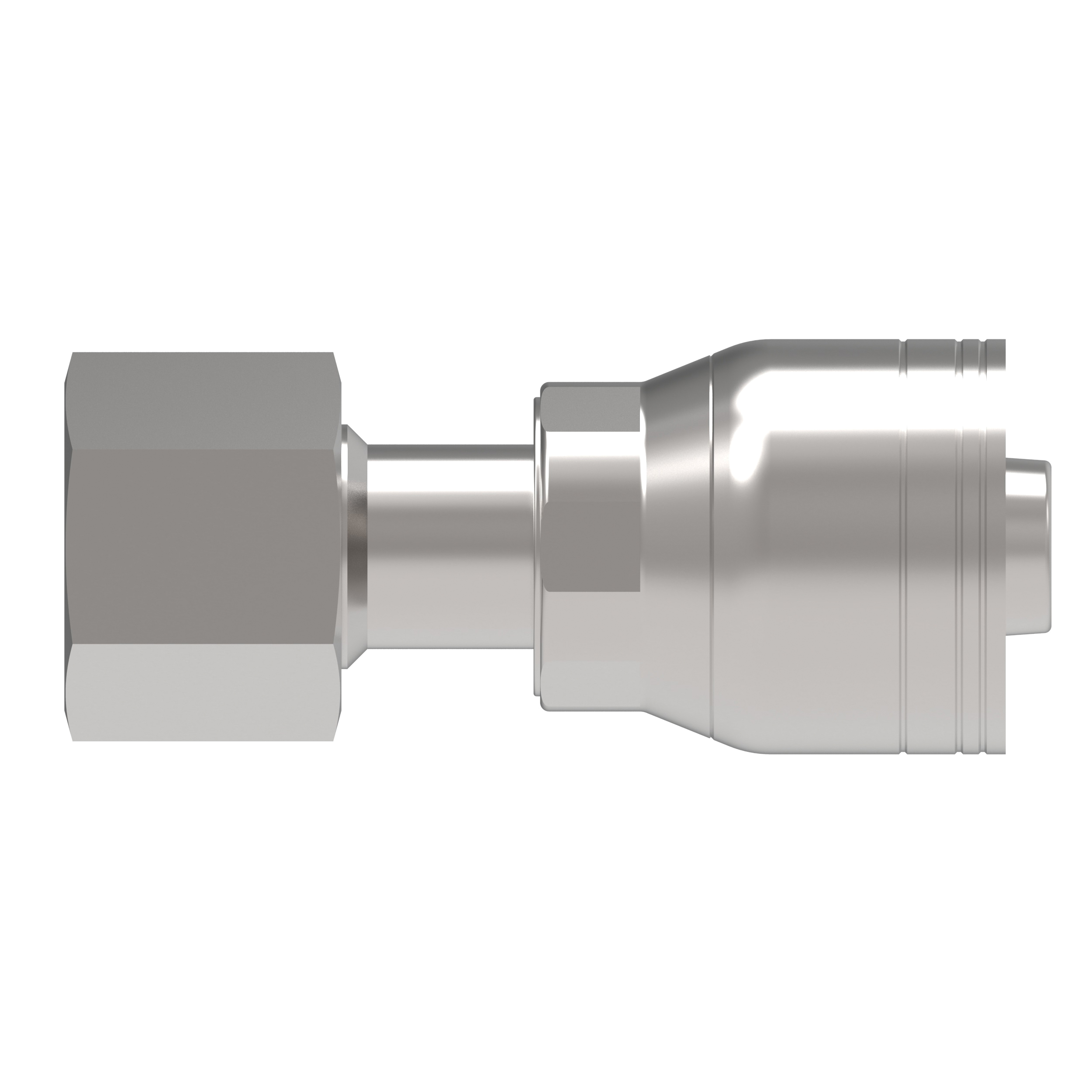

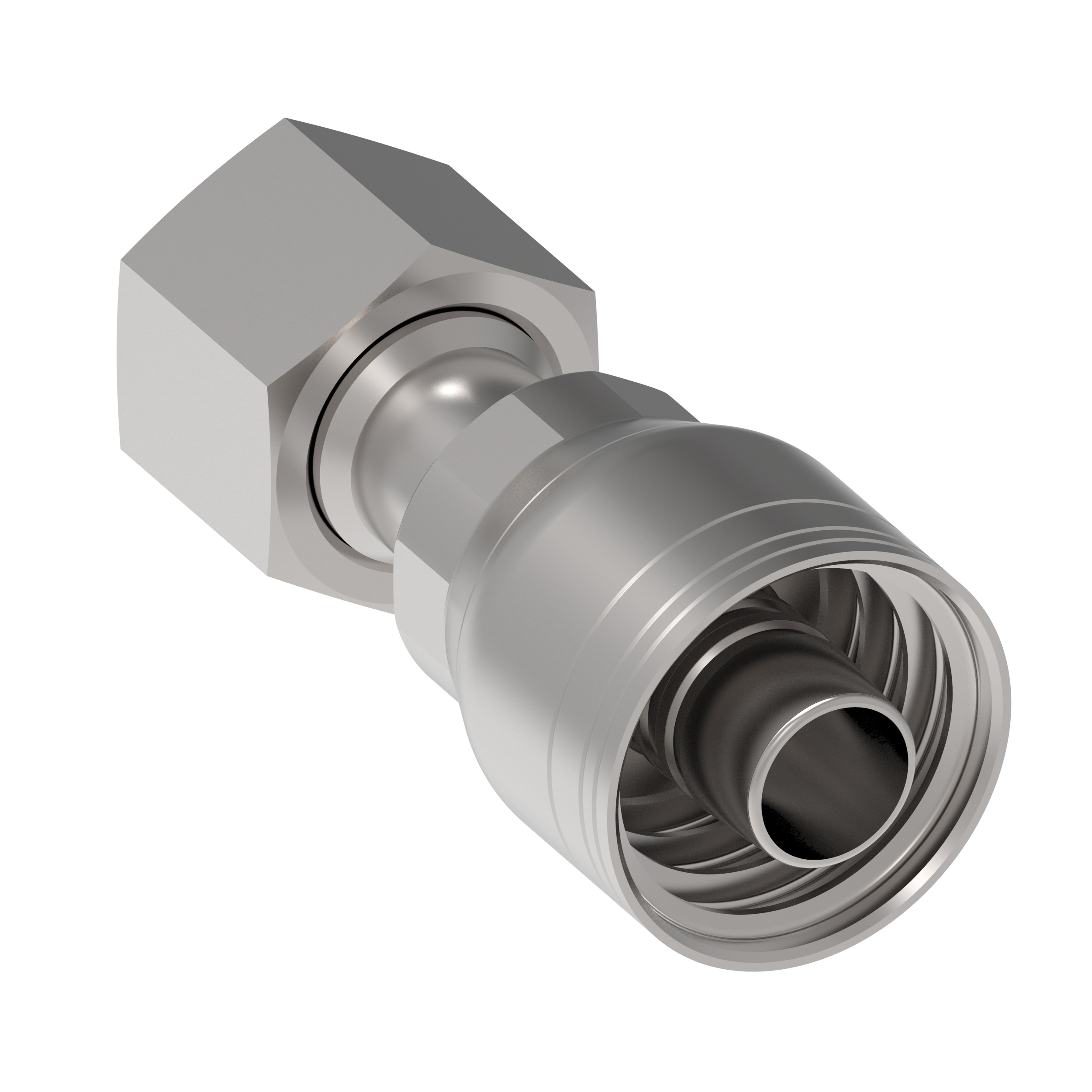

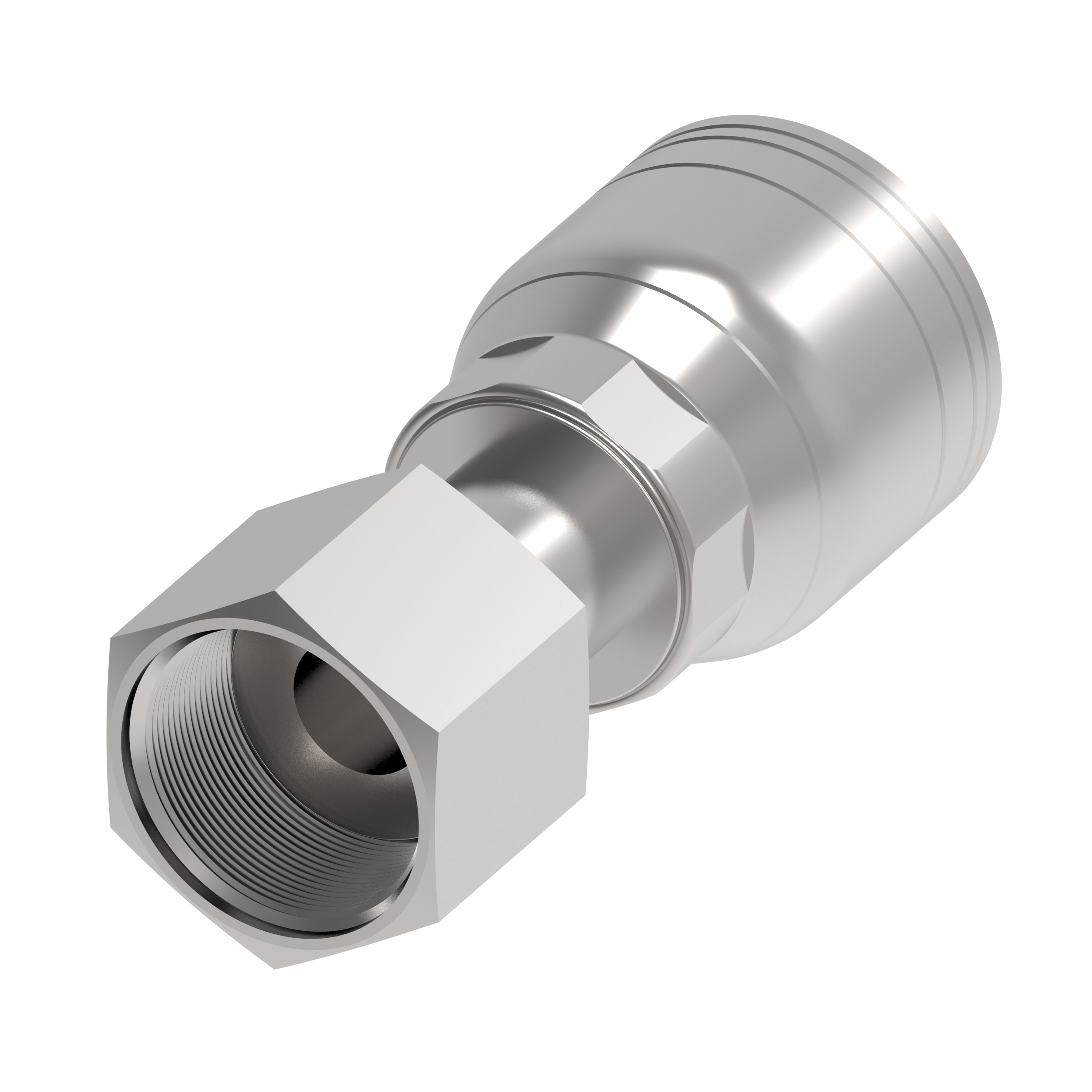

Aeroquip® 1A Series 1A16FR16 Straight Crimp Hose Fitting, 1 in Hose x 0.82 in Female ORFS Swivel, Steel
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: 1A16FR16
- MPN: 1A16FR16
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Aeroquip® Straight Crimp Hose Fitting, 1A Series, Hose Fitting, Connection Size 1: 1 in, Connection Type 1: Hose, Connection Size 2: 0.82 in, Connection Type 2: Female ORFS Swivel, Hose|Female ORFS Swivel Connection, 16 Hose Dash, 1.93 in Cut-Off Factor, Steel, Material Construction: Carbon Steel, Finish: Dura-Kote Plated, 1-7/16-12 Thread, 1.614 in Hex, 3.874 in L x 1.941 in W x 1.941 in H, 6000 psi Maximum Operating Pressure, -40 to 300 deg F Operating Temperature
| Connection Size 1 | : | 1 in |
| Connection Size 2 | : | 0.82 in |
| Connection Type | : | Hose|Female ORFS Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Female ORFS Swivel |
| Cut-Off Factor | : | 1.93 in |
| Dimensions | : | 3.874 in L x 1.941 in W x 1.941 in H |
| Finish | : | Dura-Kote Plated |
| Fitting Type | : | Hose Fitting |
| Hex Size | : | 1.614 in |
| Hose Dash Size | : | 16 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Maximum Operating Pressure | : | 6000 psi |
| Operating Temperature | : | -40 to 300 deg F |
| Series | : | 1A Series |
| Thread Size | : | 1-7/16-12 |
- Dura-Kote™ plating technology for up to 1000 hours of corrosion resistance
- Bite the wire technology for best in class connection and sealing
- Class zero leakage SAE J1176 on approved hose styles
- Danfoss MatchMate® program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
