Aeroquip® 15.063-22-16
  1. pin-int

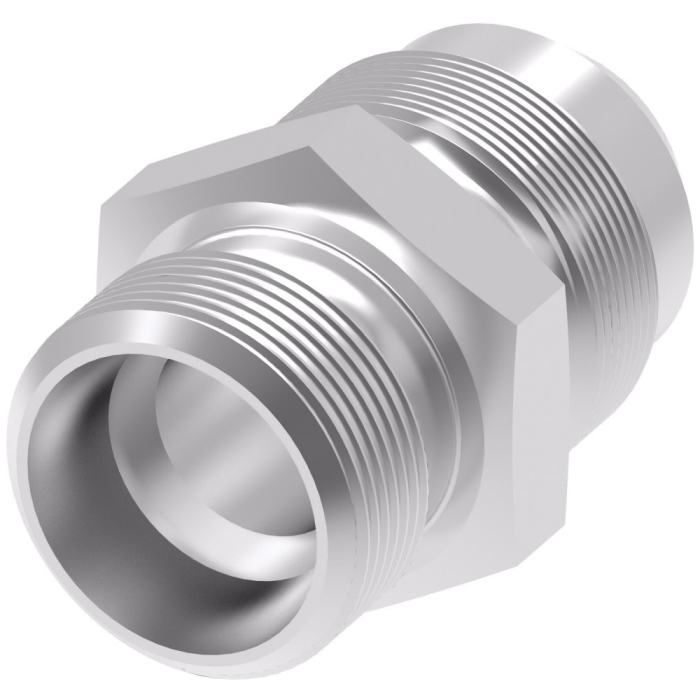

Aeroquip® 15.063 Dura-Kote Carbon Steel Straight Adapter, 25.4 mm Male Metric DIN 24 deg Tube x 1 in Male SAE 37 JIC deg Flare

Aeroquip® 15.063-22-16

  • Manufacturers: Danfoss Power Solutions
  • Brand Name: Aeroquip®
  • ARGPN: 15.063-22-16
  • MPN: 15.063-22-16
  • UPC: 678146043627
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Aeroquip® Straight Adapter, Series: 15.063, Connection Type 1: Metric DIN 24 deg Tube, Gender 1: Male, Connection Size 1: 25.4 mm, Thread Size 1: M30 x 2, Connection Type 2: SAE 37 deg JIC Flare, Gender 2: Male, Connection Size 2: 1 in, Thread Size 2: 1-5/16-12, Hex Size: 1.42 in, Dimension Standards: DIN 3901/3902 l.Rh, 2000 psi, Material Construction: Carbon Steel, Finish: Dura-Kote, 1.81 in Length, 1.42 in Width, 1.42 in Height, -40 to 250 deg F

Connection Size 1      :      25.4 mm
Connection Size 2      :      1 in
Connection Type      :      Metric~JIC
Connection Type 1      :      Metric DIN 24 deg Tube
Connection Type 2      :      SAE 37 deg JIC Flare
Dimension Standards      :      DIN 3901/3902 l.Rh
Finish      :      Dura-Kote
Fitting Type      :      Straight Adapter
Gender 1      :      Male
Gender 2      :      Male
Height      :      1.42 in
Hex Size      :      1.42 in
Length      :      1.81 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      2000 psi
Series      :      15.063
Shape      :      Straight
Temperature Rating      :      -40 to 250 deg F
Thread Size 1      :      M30 x 2
Thread Size 2      :      1-5/16-12
Width      :      1.42 in

Applications: Hydraulic, instrumentation, chemical processing systems
