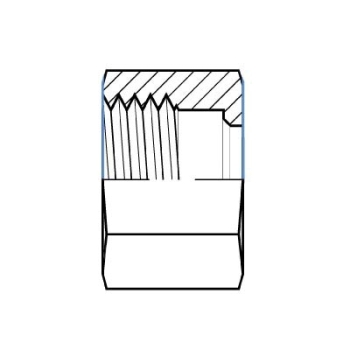

Adaptall SS5201 Stainless Steel Light-Duty Tube Nut, 6 mm Female DIN Tube

Adaptall SS5201L-06

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • ARGPN: SS5201L-06
  • MPN: SS5201L-06
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Adaptall Light-Duty Tube Nut, Series: SS5201, Connection Type 1: DIN Tube, Gender 1: Female, Connection Size 1: 6 mm, Thread Size 1: M12 x 1.5, Hex Size: 14 mm, Dimension Standards: DIN 2353, ISO 8434-1, Material Construction: Stainless Steel, 14.5 mm Length

Connection Size 1      :      6 mm
Connection Type      :      Metric
Connection Type 1      :      DIN Tube
Dimension Standards      :      DIN 2353, ISO 8434-1
Fitting Type      :      Tube Nut
Gender 1      :      Female
Hex Size      :      14 mm
Length      :      14.5 mm
Material      :      Stainless Steel
Material Construction      :      Stainless Steel
Series      :      SS5201
Shape      :      Nut
Thread Size 1      :      M12 x 1.5
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_8039-04-02_CAT.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_SS5201L-06_TD.pdf
