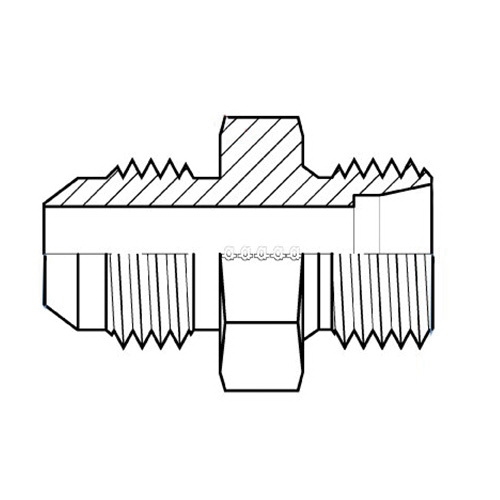

Adaptall 9606S Carbon Steel Heavy-Duty Straight Adapter with Washer and O-Ring, 30 mm Male DIN 24 deg Tube x 1 in Male JIC

Adaptall 9606S-16-S30-42

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • ARGPN: 9606S-16-S30-42
  • MPN: 9606S-16-S30-42
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Adaptall Heavy-Duty Straight Adapter with Washer and O-Ring, Series: 9606S, Connection Type 1: DIN 24 deg Tube, Gender 1: Male, Connection Size 1: 30 mm, Thread Size 1: M42 x 2, Connection Type 2: JIC, Gender 2: Male, Connection Size 2: 1 in, Thread Size 2: 1-5/16-12 UN, Hex Size: 50 mm, Dimension Standards: DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514, Material Construction: Carbon Steel, 54.6 mm Length

Connection Size 1      :      30 mm
Connection Size 2      :      1 in
Connection Type      :      Metric~JIC
Connection Type 1      :      DIN 24 deg Tube
Connection Type 2      :      JIC
Dimension Standards      :      DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514
Fitting Type      :      Straight Adapter
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      50 mm
Length      :      54.6 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      9606S
Shape      :      Straight
Thread Size 1      :      M42 x 2
Thread Size 2      :      1-5/16-12 UN
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_5202-25_CAT.pdf
