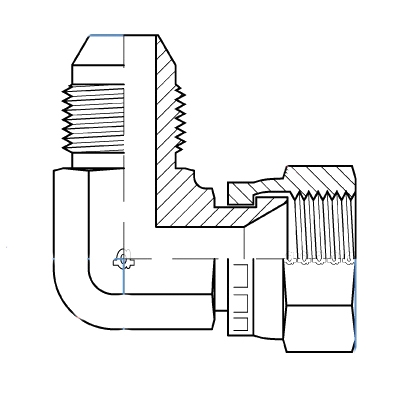

Adaptall 90 deg Elbow, Series: 9392, Connection Type 1: Komatsu, Gender 1: Male, Connection Size 1: 18 mm, Thread Size 1: M18 x 1.5, Connection Type 2: Komatsu Swivel, Gender 2: Female, Connection Size 2: 18 mm, Thread Size 2: M18 x 1.5, Hex Size: 19 x 22 mm, Dimension Standards: ISO 261, Material Construction: Carbon Steel
| Connection Size 1 |
: |
18 mm |
| Connection Size 2 |
: |
18 mm |
| Connection Type |
: |
Komatsu~Komatsu |
| Connection Type 1 |
: |
Komatsu |
| Connection Type 2 |
: |
Komatsu Swivel |
| Dimension Standards |
: |
ISO 261 |
| Fitting Type |
: |
90 deg Elbow |
| Gender 1 |
: |
Male |
| Gender 2 |
: |
Female |
| Hex Size |
: |
19 x 22 mm |
| Material |
: |
Steel |
| Material Construction |
: |
Carbon Steel |
| Series |
: |
9392 |
| Shape |
: |
90 deg Elbow |
| Thread Size 1 |
: |
M18 x 1.5 |
| Thread Size 2 |
: |
M18 x 1.5 |
-
Catalog
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_8039-04-02_CAT.pdf
-
Technical Drawing/Parts Diagram
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_9392-14-14_TD.pdf
