Adaptall 9235-10X1.5-02 9235-10X1.5-02

Adaptall 9235-10X1.5-02

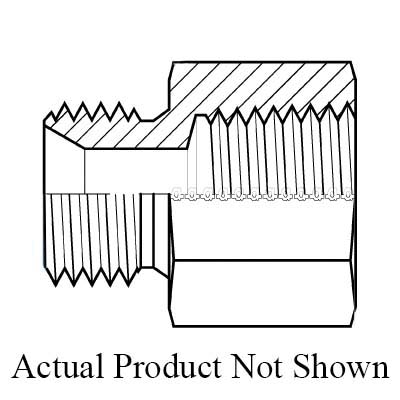

Adaptall 9235-10X1.5-02 Straight Adapter, 10 mm Male Metric 60 deg Flared x 1/8 in FNPTF, Steel

  • Manufacturer: Adaptall Inc.
  • Brand: Adaptall
  • ARGPN: 9235-10X1.5-02
  • MPN: 9235-10X1.5-02
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Adaptall Inc. factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Adaptall Straight Adapter, Series: 9235, Fitting Type: Adapter, Connection Size 1: 10 mm, Connection Type 1: Male Metric 60 deg Flared, Connection Size 2: 1/8 in, Connection Type 2: FNPTF, Material Construction: Carbon Steel, M10 x 1.5 x 1/8-27 Thread, 16 mm Hex, Dimension Standards: ANSI B1.20.3, DIN 7631, ISO 6149, ISO 9974, 30.1 mm L

Connection Size 1      :      10 mm
Connection Size 2      :      1/8 in
Connection Type      :      Male Metric|FNPT
Connection Type 1      :      Male Metric 60 deg Flared
Connection Type 2      :      FNPTF
Dimension Standards      :      ANSI B1.20.3, DIN 7631, ISO 6149, ISO 9974
Dimensions      :      30.1 mm L
Fitting Type      :      Adapter
Gender 1      :      Male
Gender 2      :      Female
Hex Size      :      16 mm
Length      :      30.1 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      9235
Shape      :      Straight
Thread Size      :      M10 x 1.5 x 1/8-27
Thread Size 1      :      M10 x 1.5
Thread Size 2      :      1/8-27
  • Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_SS9037-12-12_CAT.pdf
