Adaptall 9067-04-16 9067-04-16

Adaptall 9067-04-16

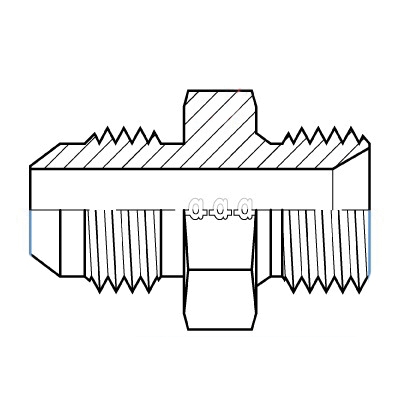

Adaptall 9067 Carbon Steel Straight Adapter, 16 mm Male Metric 60 deg Flare x 1/4 in Male JIC

pin-int

Adaptall Straight Adapter, Series: 9067, Connection Type 1: Metric 60 deg Flare, Gender 1: Male, Connection Size 1: 16 mm, Thread Size 1: M16 x 1.5, Connection Type 2: JIC, Gender 2: Male, Connection Size 2: 1/4 in, Thread Size 2: 7/16-20 UNF, Dimension Standards: DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514, Material Construction: Carbon Steel

Connection Size 1      :      16 mm
Connection Size 2      :      1/4 in
Connection Type      :      Metric~JIC
Connection Type 1      :      Metric 60 deg Flare
Connection Type 2      :      JIC
Dimension Standards      :      DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
Fitting Type      :      Straight Adapter
Gender 1      :      Male
Gender 2      :      Male
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      9067
Shape      :      Straight
Thread Size 1      :      M16 x 1.5
Thread Size 2      :      7/16-20 UNF
  • Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_5070S1206C_CAT.pdf
