Adaptall 9036-16-16
  1. pin-int

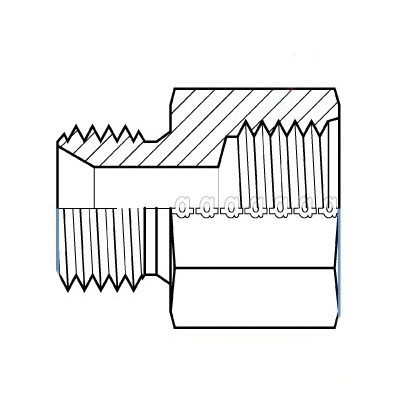

Adaptall 9036 Carbon Steel Solid Straight Adapter, 1 in Male BSPP x 1 in Female SAE ORB

Adaptall 9036-16-16

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • ARGPN: 9036-16-16
  • MPN: 9036-16-16
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Adaptall Solid Straight Adapter, Series: 9036, Connection Type 1: BSPP, Gender 1: Male, Connection Size 1: 1 in, Thread Size 1: G 1-11, Connection Type 2: SAE ORB, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-5/16-12 UN, Hex Size: 41 mm, Dimension Standards: BS 5200, ISO 1179, ISO 11926, ISO 8434-6, SAE J1926, Material Construction: Carbon Steel, 54.5 mm Length

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type      :      BSPP~ORB
Connection Type 1      :      BSPP
Connection Type 2      :      SAE ORB
Dimension Standards      :      BS 5200, ISO 1179, ISO 11926, ISO 8434-6, SAE J1926
Fitting Type      :      Straight Adapter
Gender 1      :      Male
Gender 2      :      Female
Hex Size      :      41 mm
Length      :      54.5 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      9036
Shape      :      Straight
Thread Size 1      :      G 1-11
Thread Size 2      :      1-5/16-12 UN
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_5070S1206C_CAT.pdf
