Adaptall 6002-08-04 6002-08-04

Adaptall 6002-08-04

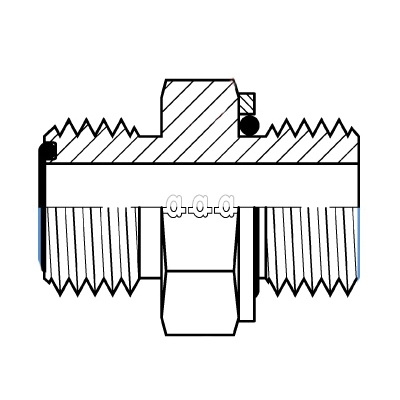

Adaptall 6002 Carbon Steel Straight Adapter with Washer and O-Ring, 1/4 in Male BSPP x 1/2 in Male ORFS

pin-int

Adaptall Straight Adapter with Washer and O-Ring, Series: 6002, Connection Type 1: BSPP, Gender 1: Male, Connection Size 1: 1/4 in, Thread Size 1: G 1/4-19, Connection Type 2: ORFS, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 13/16-16 UN, Hex Size: 22 mm, Dimension Standards: BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453, Material Construction: Carbon Steel, 36.3 mm Length

Connection Size 1      :      1/4 in
Connection Size 2      :      1/2 in
Connection Type      :      BSPP~ORFS
Connection Type 1      :      BSPP
Connection Type 2      :      ORFS
Dimension Standards      :      BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453
Fitting Type      :      Straight Adapter
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      22 mm
Length      :      36.3 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      6002
Shape      :      Straight
Thread Size 1      :      G 1/4-19
Thread Size 2      :      13/16-16 UN
  • Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_6002-08-04_CAT.pdf
