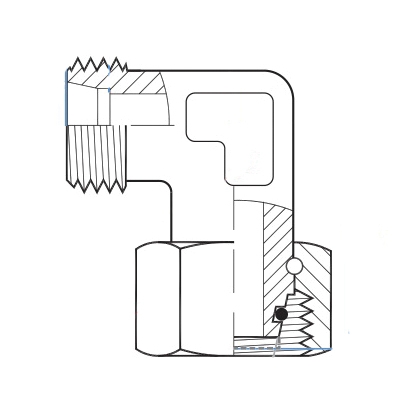

Adaptall 5360L Carbon Steel Light-Duty 90 deg Elbow, 35 mm Male Metric DIN Tube x 35 mm Female Metric DIN Tube Swivel

Adaptall 5360L-35

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • ARGPN: D8263-L35-35
  • MPN: 5360L-35
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Adaptall Light-Duty 90 deg Elbow, Series: 5360L, Connection Type 1: Metric DIN Tube, Gender 1: Male, Connection Size 1: 35 mm, Thread Size 1: M45 x 2, Connection Type 2: Metric DIN Tube Swivel, Gender 2: Female, Connection Size 2: 35 mm, Thread Size 2: M45 x 2, Hex Size: 50 mm, Dimension Standards: DIN 2353, ISO 8434-1, Material Construction: Carbon Steel

Connection Size 1      :      35 mm
Connection Size 2      :      35 mm
Connection Type      :      Metric~Metric
Connection Type 1      :      Metric DIN Tube
Connection Type 2      :      Metric DIN Tube Swivel
Dimension Standards      :      DIN 2353, ISO 8434-1
Fitting Type      :      90 deg Elbow
Gender 1      :      Male
Gender 2      :      Female
Hex Size      :      50 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      5360L
Shape      :      90 deg Elbow
Thread Size 1      :      M45 x 2
Thread Size 2      :      M45 x 2
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_5360L-35_CAT.pdf
